add welding cords to a part

[p@po]

I created several parts from which I obtained a set without following, so to speak, the "saving" mode.
then, for convenience, I saved it as a "part" file because, wanting to insert welding cords, I did not see the tab of the menu "saving, tab that instead appears if I work with a part file.
At this point I wanted to insert a welding but although in the feature tree add the function to me, in fact I do not appear the options that the tutorial says should appear.
I am doubtful that having created the piece not as welding can not add the strings.
Any advice?



[re_solidworks]

I created several parts from which I obtained a set without following, so to speak, the "saving" mode.
then, for convenience, I saved it as a "part" file because, wanting to insert welding cords, I did not see the tab of the menu "saving, tab that instead appears if I work with a part file.
At this point I wanted to insert a welding but although in the feature tree add the function to me, in fact I do not appear the options that the tutorial says should appear.
I am doubtful that having created the piece not as welding can not add the strings.
Any advice?

what you did is conceptually wrong as saving as a part you lost your parameter and you find yourself almost an imported one.
between the functions of together there are also the welding cords, tiu council to resume the assemblies and insert them. Please note that previous versions of 2011 are not the maximum for 3d welding.
in 2011 the cords are "cosmetic" and weigh very little in the model making an excellent graphic and aesthetic result.



[p@po]

what you did is conceptually wrong as saving as a part you lost your parameter and you find yourself almost an imported one.
between the functions of together there are also the welding cords, tiu council to resume the assemblies and insert them. Please note that previous versions of 2011 are not the maximum for 3d welding.
in 2011 the cords are "cosmetic" and weigh very little in the model making an excellent graphic and aesthetic result.

I use sw 2011.
I don't know what you mean exactly by loss of parameterity:
Could you explain? ? :finger:

comq the file together I kept it.
That passage together > part I did because the option sold in the axieme did not find it.
Maybe now that you tell me I look better.
thanks re_solidworks:smile:



[re_solidworks]

if to get the part you saved by name in sldprt a set in quesot passage you lost the association and the part behaves like an imported part.
look in what's new of 2011, for welds you can use the novelty that is valid both for welded and for assemblies.



[p@po]

if to get the part you saved by name in sldprt a set in quesot passage you lost the association and the part behaves like an imported part.
look in what's new of 2011, for welds you can use the novelty that is valid both for welded and for assemblies.

has extension sldasm:finger:
Now I look at this page you tell me.
you are very kind in giving me these info,
Thank you.



[p@po]

I found what you said.
This is a figurative welding cord:
I wanted to ask if it was possible to change style in 3d.
The cord appears as a black and grey intermittent cord.
Are there any other types of cord or just that?



[p@po]

other thing:
but the cord with connection can only be applied on a "structural memory" function?
because I always find the icon of this cord turned off if I try to apply it to two other bodies that constitute a set.



[re_solidworks]

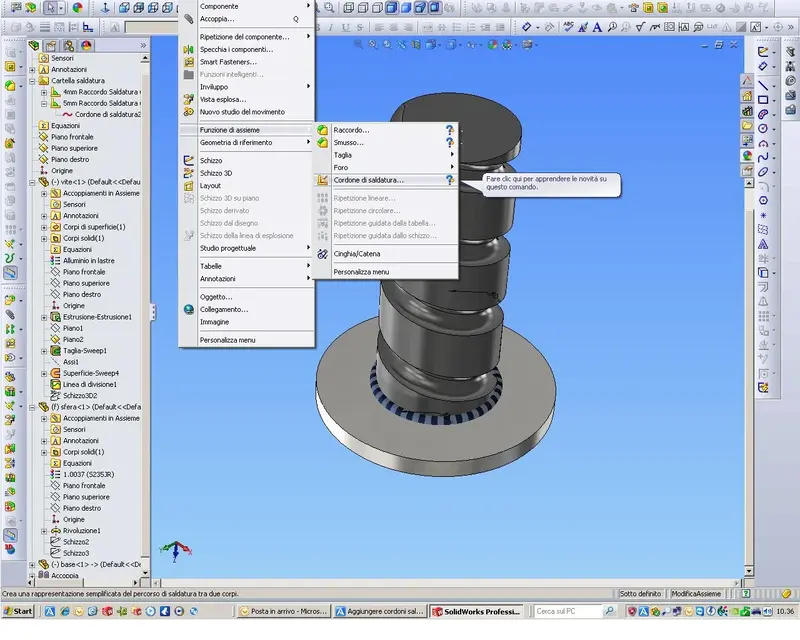

for the assemblies should be under the functions of together.



[p@po]

for the assemblies should be under the functions of together.

Yes, but look at it.
I only noticed that it is activated if you create a frame with the properties of the welding mode.



[Mike1967]

Yes, but look at it.
I only noticed that it is activated if you create a frame with the properties of the welding mode.

You didn't look at the right place.



[p@po]

You didn't look at the right place.

but I speak of cord with connection e non del cord with welding.

the first is a function that you find for the frames obtained from a structural member of the type welds (but also when you work the single parts as I understood) while the second is a purely aesthetic artifice that you find instead both for the assemblies and for the parts.

not that it is the end of the world but it was right to understand.

thank you very much always for the attention.:finger:
