analysis of mischief

[ipstatico]

Good morning.
how can you measure the length of the carpet quickly? the measuring instrument does not seem very intuitive and quick. in other cads it was enough to select the chain of lines and curves and then question the geometry. how does it work in inventor? under an image as an example:Thank you. Have a good day.



[Cast16]

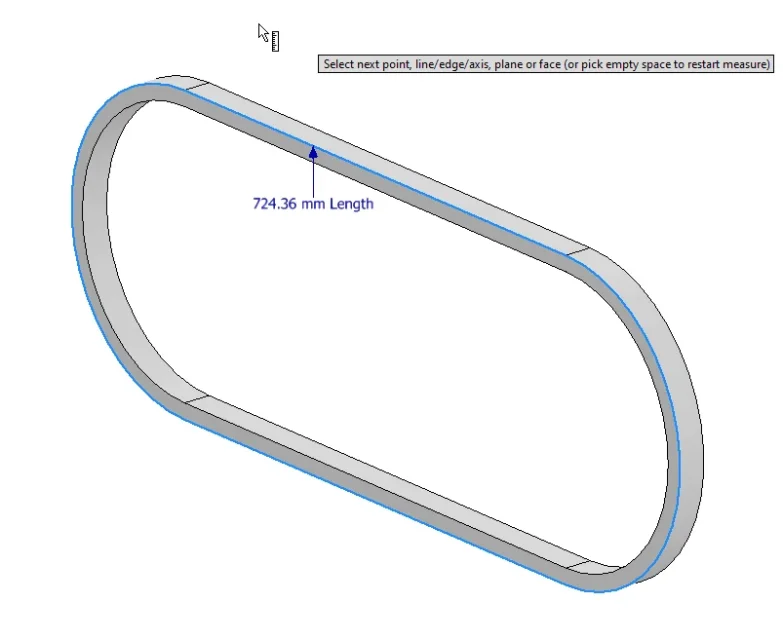

at least in inventor 2024, there is the option to select the perimeter (loop in English):



[ipstatico]

we have version 2022 and we use the scan->measure command (it seems quite incomplete to me). maybe there's another command to use?



[ipstatico]

Maybe I did. analyzing»measure»we will ctrl»outline selection options.
is it correct?



[DrBarde]

I would say it's correct.
