catia - assembly part on machine

[luxlux91]

hello to all, I created on casket a 5-axis cnc machine and, in my opinion, I correctly defined the assembly point piece. when loading a part on the machine, it does not fit at the point indicated. If I send you the files, can you help me? Thank you.



[falonef]

Well start posting pictures with comments ... then see the rest



[luxlux91]

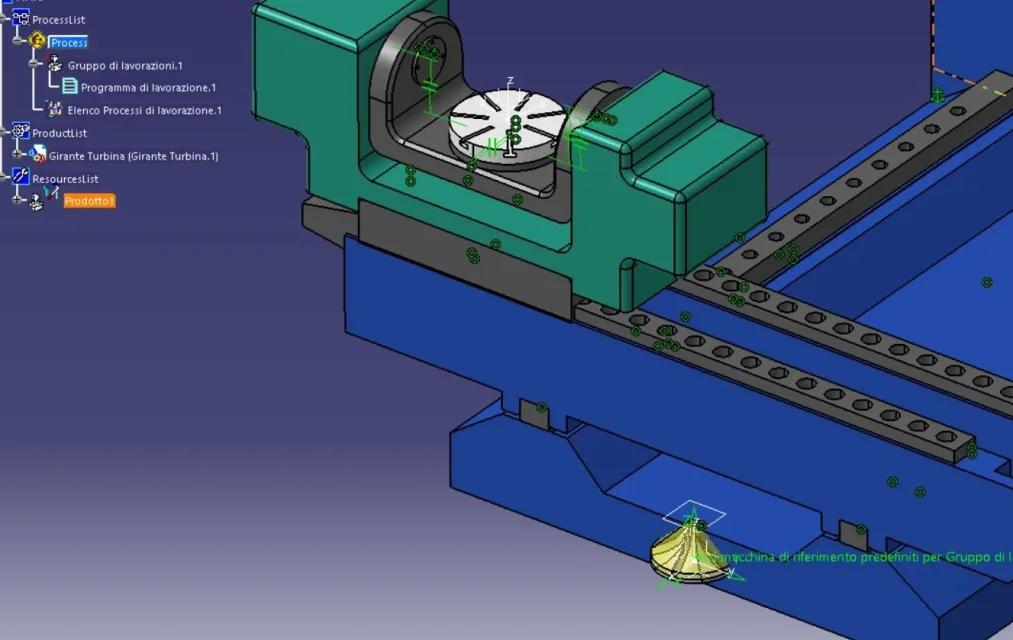

Excuse me. then in practice it is a 5-axis machine with rotary board (axis c) and sunk (axis). the piece should be mounted on it. I defined the mounting point as from photo, but despite that, when I open "machining-advanced machining" and load my machine, the piece sits on the base and not on the table.



[falonef]

but can't you place it correctly in assembly design?
