customised balloon

[BonzoRosso]

Good evening,
for a job that we are making a customer was very categorical about the fact that the balling wants it with a simple line of director.
I tried to look in standard drafting but beyond the basic frames, of which some not working, there is not what I would need.
of course I could do with the "text with reference" command but I would lose all the ties with the bom.
in the image below what the customer would like as standard for the ball.

Thank you.



[Vittorio]

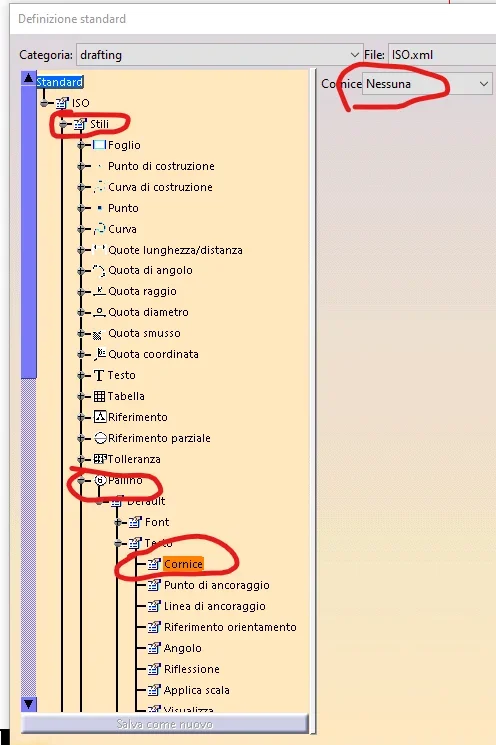

If you want something fast.. selections all the ball with the command locatedand instead of the circle choose no oneif you want to make it permanent, enter as administrator in standard and xml file



[BonzoRosso]

hi victorious, unfortunately I do not need a text without circle but one as the one indicated in the image.
would be a line director completed by text.
or the same function that the text command with reference



[Vittorio]

What precision does your customer require?



[BonzoRosso]

Let's say that it's not about precision or being pointy, what the program creates me by default sent them back with the fact that it is not in line with the documentation they produce for 50 years to this part.. .
so much to make you understand, they make me comments on the fact that two pieces with restraint should have reversed or thawed, even this to today another problem for me.
then type on inventor and solid know that one could save a default species and then set that type for the ball.
is it possible also on catia?
is it possible to write a macro that does what I ask? if you point out what parameter should I map?



[Vittorio]

so much to make you understand, they make me comments on the fact that two pieces with restraint should have reversed or thrived, even this to today

but on this note.. I think he does it properly.
to me makes it reverse the sense of inclination and staggering, I set the type std2
for that characteristic of the balls.. I don't know how to help you.
