define the insertion point of a dxf

  • Thread starter Thread starter Gabriello
  • Start date Start date

Gabriello

Guest
Good morning.
I'm having to put a dxf in a sketch. the insertion point does not coincide with the 0.0 coordinates of the autocad sheet with which I generated it, but with an end line.
Can someone tell me if it is possible to insert a different insertion point?

Thank you.


Attachments

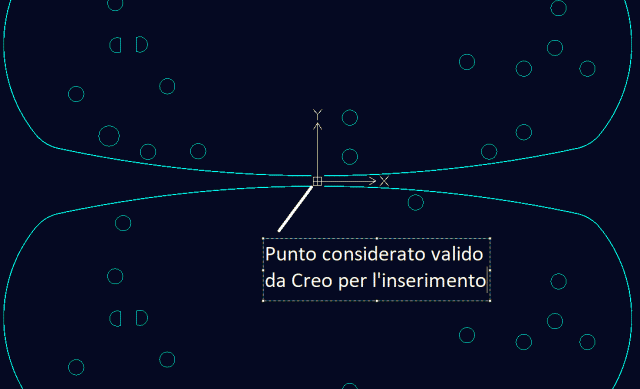

  • Cattura.GIF
    12.9 KB · Views: 5
in the creo sketch, while positioning the dxf, right-click you can move the insertion point to any other notable point of the dxf. I don't think you feel the native coordinate system, try in autocad to put a point or segment with end or middle point and then import it again.
Bye.
