Not bad.

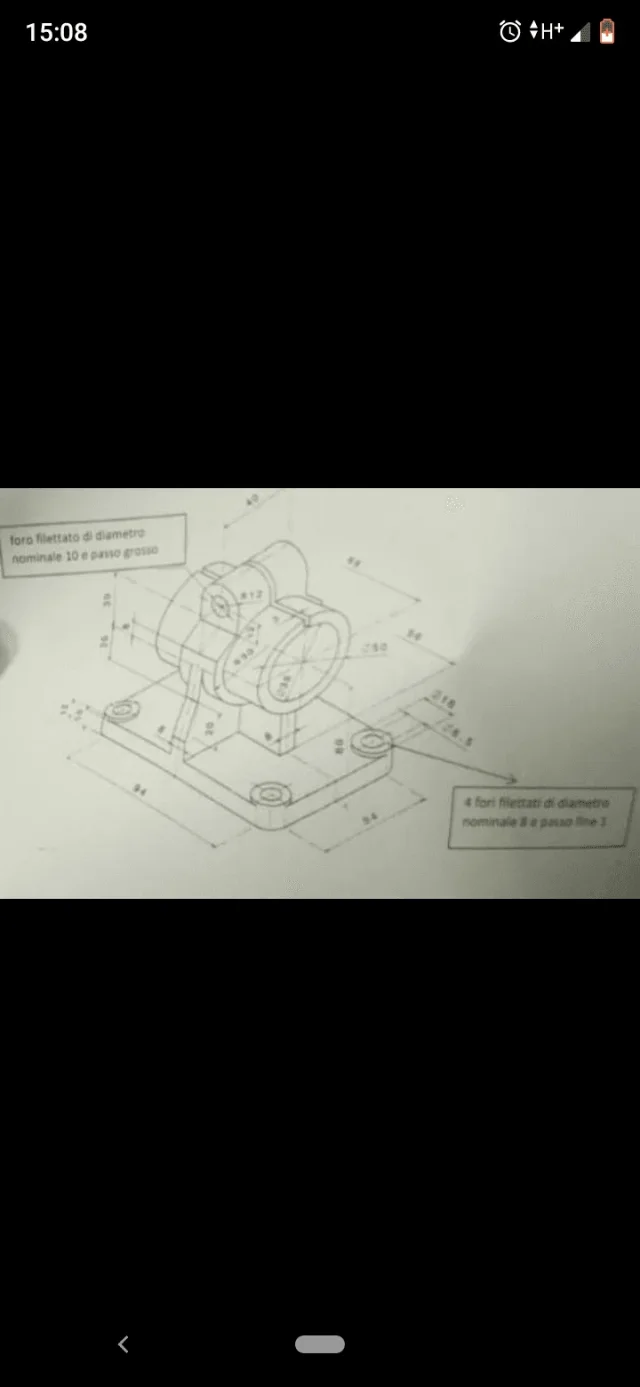

on the quotas referred to the half-axis must be indicated cl, or you must quote one of the faces from the axis itself.
I don't like it as quoti i ø, I would put them in a section. But yours is not a mistake, it only makes the design a little less readable.
the share of the center of the threaded hole m10 is unreadable, I would put it where you listed the center of the cylindrical body.

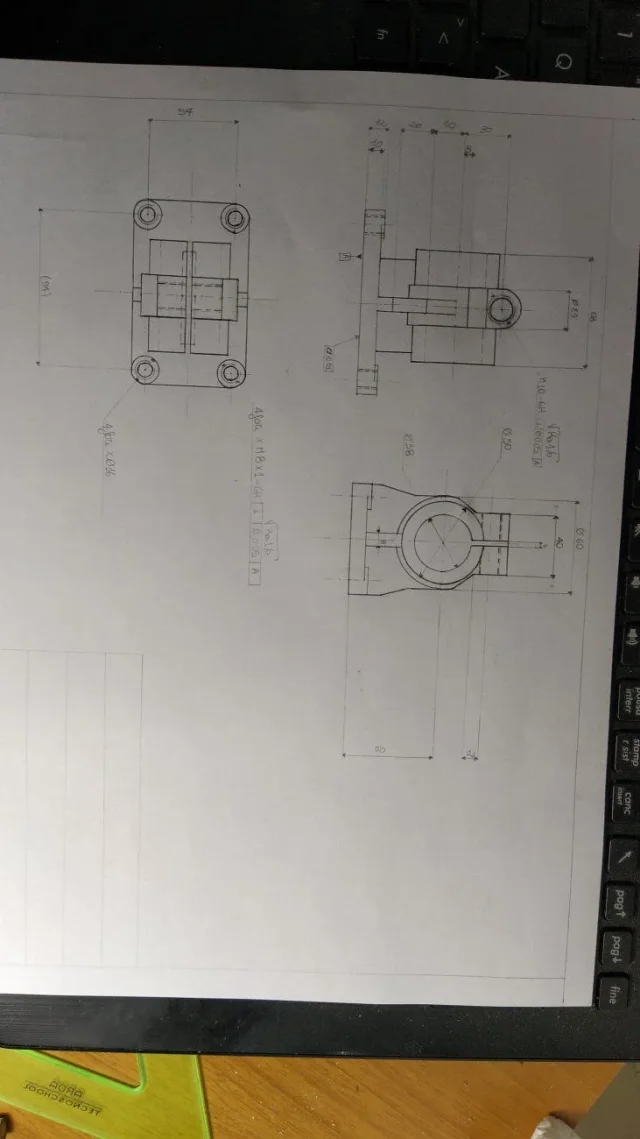

I don't understand that shape tolerance on the holes m8x1. but that ø0.05? or perhaps I do not see well, the photo is not very clear.
Last thing, that threaded hole of m10, probably, serves to tighten the cylinder and to lock a tree that flows inside. therefore should be a threaded hole for one half, the other should be 0.5 bigger than the ø screw.
on the quotas referred to the half-axis must be indicated cl, or you must quote one of the faces from the axis itself.
I don't like it as quoti i ø, I would put them in a section. But yours is not a mistake, it only makes the design a little less readable.
the share of the center of the threaded hole m10 is unreadable, I would put it where you listed the center of the cylindrical body.
I don't understand that shape tolerance on the holes m8x1. but that ø0.05? or perhaps I do not see well, the photo is not very clear.
Last thing, that threaded hole of m10, probably, serves to tighten the cylinder and to lock a tree that flows inside. therefore should be a threaded hole for one half, the other should be 0.5 bigger than the ø screw.
Martakynghi
Guest
Thank you. I don't know what to say about tolerances because as I said before to my professor only cares about putting tolerance well then the rest is indicative so I just put in the right place the tolerances I know secure.
I don't know where my stupid question is supposed to be. .
I don't know where my stupid question is supposed to be. .
TECNOMODEL
Guest
if a quota is symmetrical compared to the axis it is indicated with the word cl, which stands for center line.
what in the past was indicated with the simblo = under the quota.
I miss the sense of "put tolerance well", what should it mean?
put it in the place "right" though with meaningless values?
what in the past was indicated with the simblo = under the quota.
I miss the sense of "put tolerance well", what should it mean?
put it in the place "right" though with meaningless values?
Martakynghi
Guest
In the sense of my teacher, it is more important to point out the tolerance if it is of inclination of rectilineity localization has not made any reference to the fact if we put for example in this case a diameter of 0.05 does not see this but sees more if a tolerance has been indicated well. I don't know.if a quota is symmetrical compared to the axis it is indicated with the word cl, which stands for center line.
what in the past was indicated with the simblo = under the quota.
I miss the sense of "put tolerance well", what should it mean?
put it in the place "right" though with meaningless values?
Martakynghi
Guest
ah okok io so ==if a quota is symmetrical compared to the axis it is indicated with the word cl, which stands for center line.
what in the past was indicated with the simblo = under the quota.
I miss the sense of "put tolerance well", what should it mean?
put it in the place "right" though with meaningless values?
Martakynghi
Guest
always remains the fact that I as a student I am following my teacher and she told me to put == .ah okok io so ==
TECNOMODEL
Guest
I don't remember how many years the norm has been modified, quite a bit surely.always remains the fact that I as a student I am following my teacher and she told me to put == .
I'd say your prof needs some update.
