doubt technical design symbol

[archguida]

hello to all, I happen a mechanical design with this symbol next to a threaded hole, I think it is the depth of the hole, what do you think?
Thank you.



[cacciatorino]

hello to all, I happen a mechanical design with this symbol next to a threaded hole, I think it is the depth of the hole, what do you think?
Thank you.

yes should be the depth of the threaded tract.



[meccanicamg]

It should not....it is certainly the symbol that has become international that indicates depth.
solidworks has used it native for many years. others have adapted.



[cacciatorino]

It should not....it is certainly the symbol that has become international that indicates depth.
solidworks has used it native for many years. others have adapted.

Maybe it's a use unification?



[archguida]

Thank you very much



[TorMec]

6 is the useful depth of the thread.I confirm that the symbol has now been unified by default.



[PiE81]

Maybe it's a use unification?

Yes, in the asmes already for several years there is this symbol, as well as that of lamatura and devasatura.



[Chris_BRB]

Good morning, does the symbol indicate the useful depth of thread or pre-forum? is it reported to some regulations the above symbol? Thank you.



[SperX]

Good morning, does the symbol indicate the useful depth of thread or pre-forum? is it reported to some regulations the above symbol? Thank you.

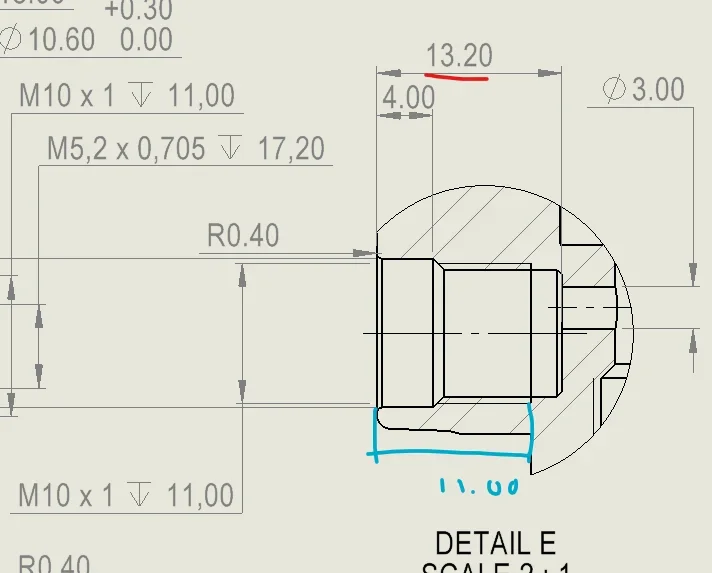

work in uk and here we use quotation the thread and its depth(blue) then quoti the foreskin(red).
The standard is bs8888 if I remember well.



[teseo]

work in uk and here we use quotation the thread and its depth(blue) then quoti the foreskin(red).
View attachment 71342The standard is bs8888 if I remember well.

excuse the intrusion, but how do you in solidwork get this kind of quota? with the text line at 90° compared to the quota thanks hello



[SperX]

excuse the intrusion, but how do you in solidwork get this kind of quota? with the text line at 90° compared to the quota thanks helloView attachment 71369

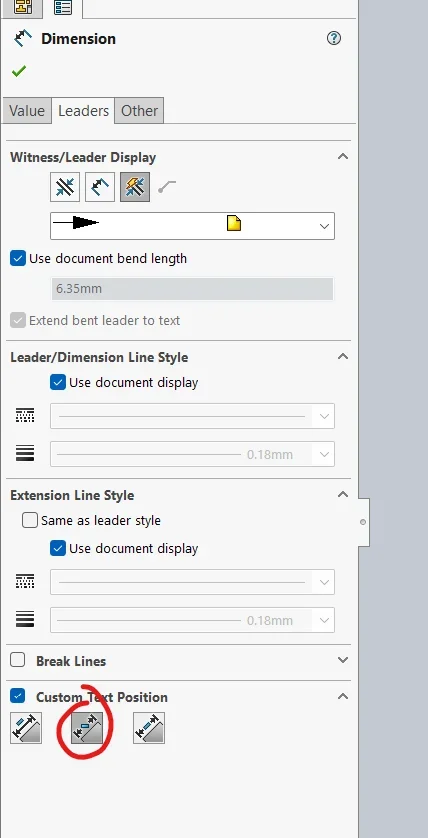

do vertical quotation and then change the text position in orizontalesmall escapees...ahahahah



[teseo]

thank you so much for the answer but it doesn't work vertically? . You know that fugue, too.



[SperX]

thank you so much for the answer but it doesn't work vertically? . You know that fugue, too.

I never tried, but once I thought of drawing with the sheet vertically but with the horizontal layout.. I don't know if I explained. ..practically create a vertical a4 sheet. but having both situations in a table I don't think it's possible.



[teseo]

Well big runaway I would say



[czar]

if it is not possible/turned to quota the hole in saw section, it is seen in the plant and inserting elements from the model/function you check the punctuation caption box, so doing exits that symbol both for the depth of the foreskin and the thread.
is convenient to avoid adding views to the sole purpose of quotating the threaded or laminated hole.
