eurofighter (particularly on wing root)

  • Thread starter Thread starter Richart
  • Start date Start date

Richart

Guest
Hello, everyone!

What is this "hole" indicated in the image?

Are you the machine machine?

thank you all in advance!


Attachments

  • eurofighter_1.webp
    20.8 KB · Views: 82

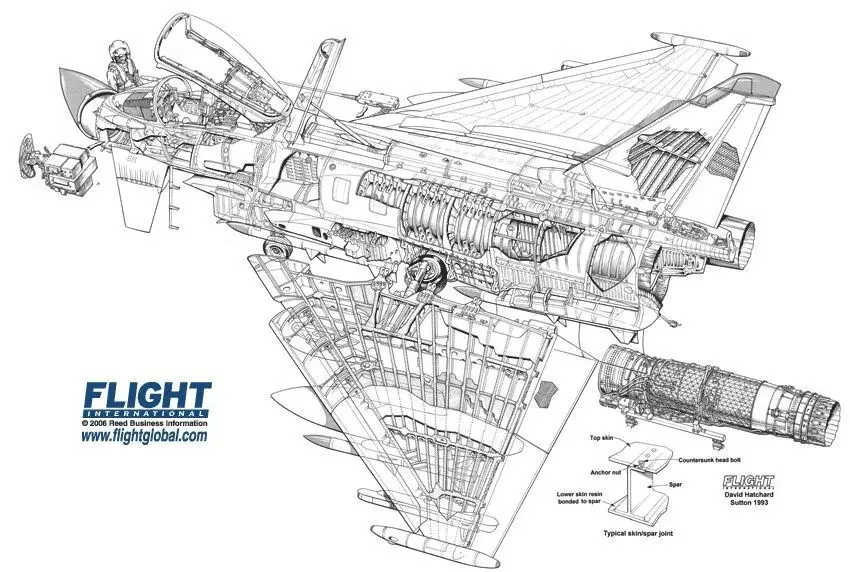

I'm not sure but it should be the exhaust of the mauserwerke gmbh bk-27 cannon, which I attach you two images plus a split of the plane.


Attachments

  • BK27.webp
    12.2 KB · Views: 34
  • 45dd78310ea2d_large.webp
    31.5 KB · Views: 38
  • Eurofighter-2000.webp
    94.6 KB · Views: 66
Hello, everyone!

What is this "hole" indicated in the image?

Are you the machine machine?

thank you all in advance!
in fact as it says er president and a discharge apu

the apu (auxiliary power unit) serves to provide electric and pneumatic energy to the aircraft when the engines are off. It's basically a small turbine engine moving an electric generator.

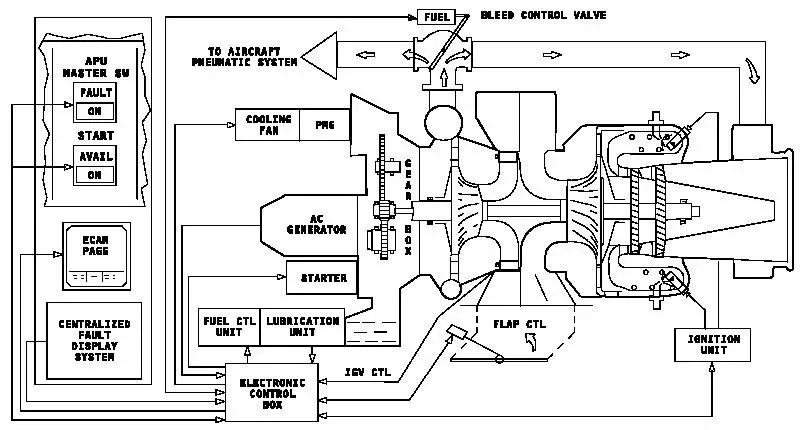

allego schema apu

greetings


Attachments

  • APUDescription.webp
    42.5 KB · Views: 44
