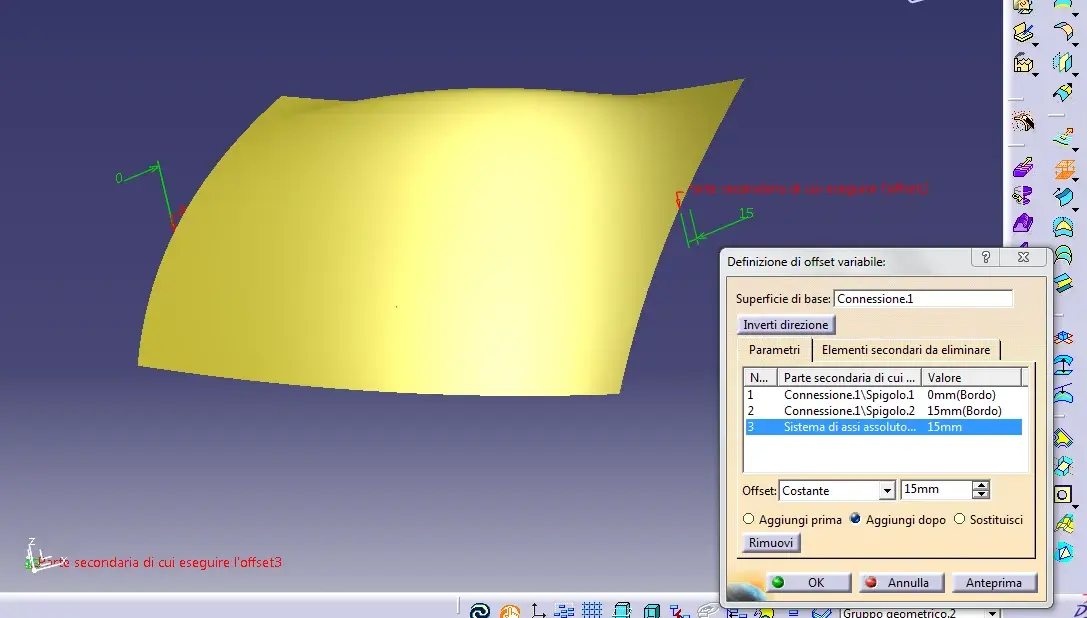

I tried to make the offset of a surface that should be so composed:
0mm away from the sx edge and 15mm from the dx edge.

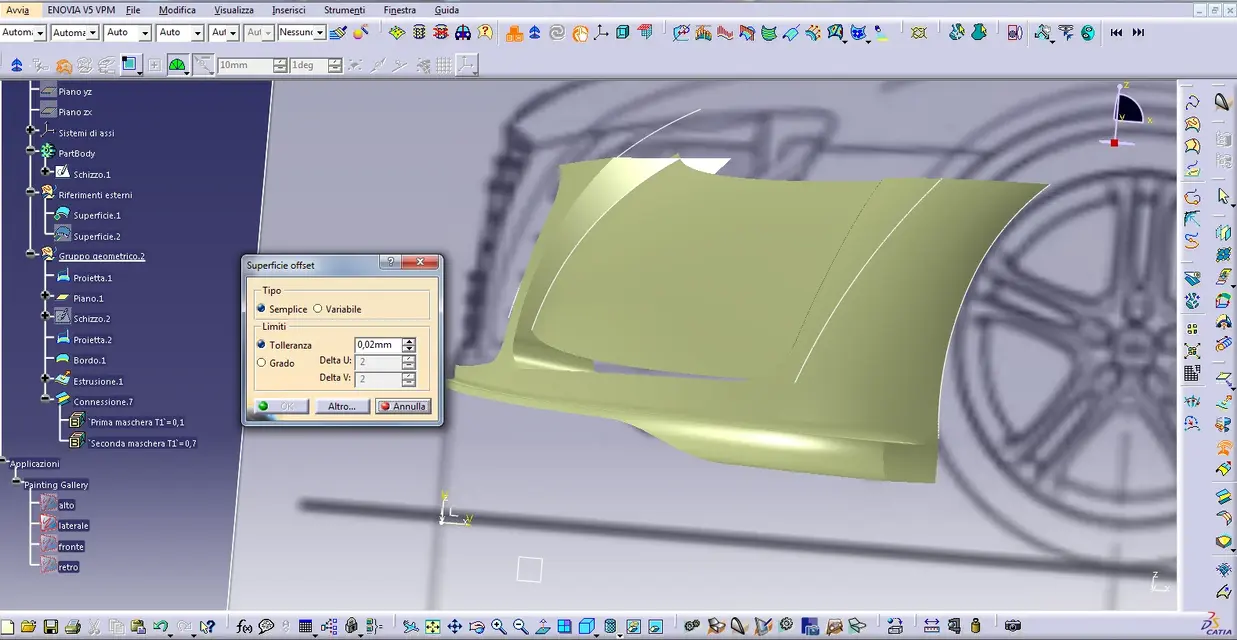

I noticed that it allows me to preview only if I select one of the 3piani xy, yz or zx;
But if I select any of these plans, it gives me a mistake.

What parameters should I enter because it doesn't give me errors and succeeds the variable offset? 4

Thank you.



[panormus]

some extra image that could help you understand.



[alpole]

bye panormus
the variable offset you refer to, i.e. act
on a single surface you can find it in the free style form or
also in the shape design;
in the gsd module the variable offsett feature refers
polysurface offset, in which you can decide
which surfaces (which make up the union) maintain with a constant value and which variables -
to the



[panormus]

thanks to the

but on fs I can not change the connection surface created in gsd.
I need to be able to make a variable offset of a surface that is a connection between 2 curves projected on the surface of the car putting also a tangency bond.

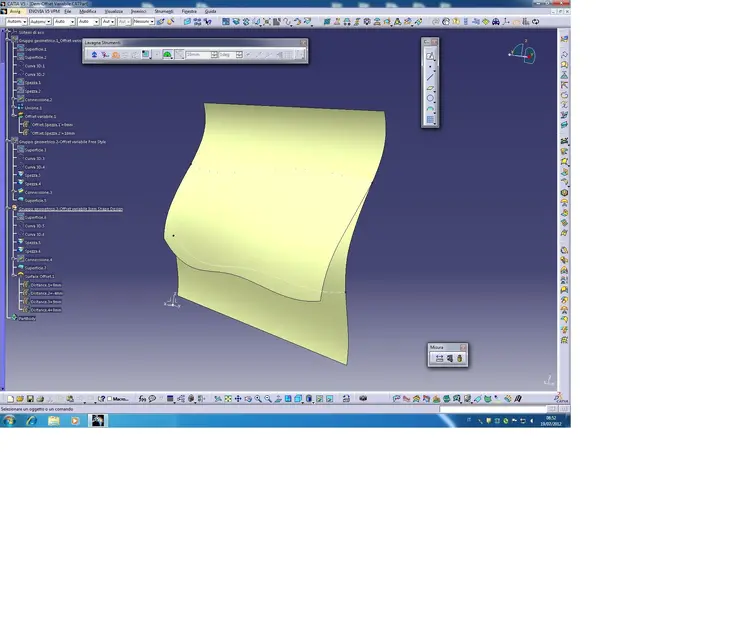

I attach you printscreen to be clearer.



[panormus]

I tried to remake the surface, but nothing to do... the variable offset of the fs does not go.. It doesn't give me the ok, I don't understand how I have to act or if it must necessarily be a surface created in fs environment.



[alpole]

perhaps a small example is worth more than many words-
I tried to simulate what you think
want to realize, using three different modules
gsg-fs-isd
I hope you have help
to the



[panormus]

perhaps a small example is worth more than many words-
I tried to simulate what you think
want to realize, using three different modules
gsg-fs-isd
I hope you have help
to the

I can't open it. I got the r19 you?



[panormus]

I attach the file to remind you that I have the r19 and that I should do the variable offset of the celestial surface.

bye.



[panormus]

...and with your help I would end up.



[panormus]

on... be good... :biggrin:

I can't frame it before because the piece is missing.. Damn. .



[SMAU72]

Great, it works.
variable offset of a curve on a surface?



[gianni55]

Great, it works.
variable offset of a curve on a surface?

Devi fortune il modulo icem shape
