help powercopy

[marcofa]

http://www.catia.co.za/support/training/plm-software-tutorials/create-your-own-power-copyfound this tutorial.
I can't reproduce sequences.
the powercopy contains only the sketch and not the pocket nor the bevel.
Also when selecting the face, you select the whole body and an error message appears.

powercopy works both in hybrid and not hybrid mode?
thanks for the help
Mar



[dandao]

to me it works like this:
all ok until the creation of the anniversary of a group copy( power copy)
then create the point x the next pocket in a new sketch (with point 3d does not work me)
then when selecting recurrence from selection, first you must select the created power copy(recurrence of a group part.1
at that point it makes you select the face and then the new point created (by sketch)

use the r17

Hi.



[marcofa]

Thanks for the tip.
it works perfectly only that after the powercopy command you have to select the powercopy in the tree and then select plan and point
r20 sp1 to me works with 3d point
Mar



[marcofa]

In addition,
I tried to make a powercopy matrix.
It seems that it is not possible! is it correct or is there a method?
Mar



[dandao]

In addition,
I tried to make a powercopy matrix.
It seems that it is not possible! is it correct or is there a method?
Mar

I press that I don't know the powercopy command well, but trying with a rectangular matrix and out this see if it can help you

Hi.



[marcofa]

Sure, that came out to me too.
However you can make a matrix of one feature, the pocket, the fitting does not reproduce.
Mar



[ferrezio]

Sure, that came out to me too.
However you can make a matrix of one feature, the pocket, the fitting does not reproduce.
Mar

when you have to play a feature sequence in a matrix, these must be collected in a body, and as an element to repeat you have to use the body and not the seals parts.

Hi.

ps in the afternoon I will also answer your question about nested sketches and utility in more feature.



[ferrezio]

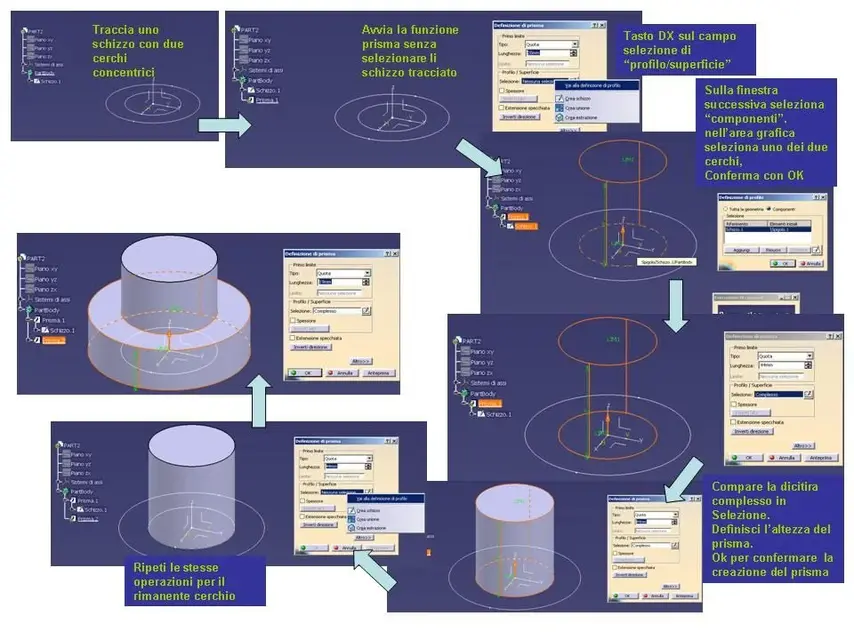

this is the procedure to create more prisms with a single sketch.

Hi.



[marcofa]

like a multiple prism, with the difference that in your way I have in the tree two prisms with its sketch instead of just one multiple prism with the sketch.
what difference and what advantages/disadvantages?

also what difference with the feature profile system? you get your result, a sketch and two prisms.

Mar



[stef_design]

this is the procedure to create more prisms with a single sketch.

Hi.

Thank you very much, I did not know this procedure. a bomb:biggrin:
Your advice is always helpful... thank you very much:finger:
