hexagon center quotation (with possibility of axles)

[Ste82]

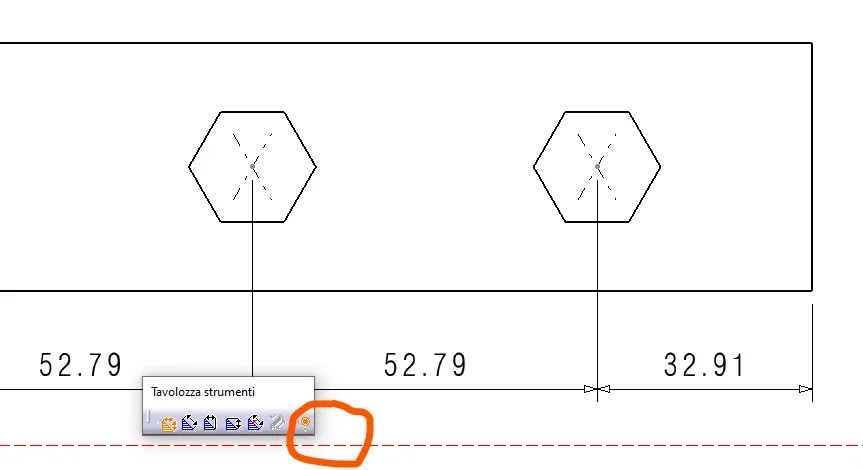

good evening to all, I am experiencing difficulty in listing the center of a hexagon, I attach image and hope that someone can give me an improved input... ps I couldn't set catia v5 and I can't figure out how to activate the snaps...because of constructive advice. . thanks to those who want to dedicate a little time, greetings stefano



[Vittorio]

ciao @ste82you must track the axes of the hexagons (with the appropriate half-control) and in the quotation you must activate intersection point detection (tasto dx mouse)



[falonef]

Hi.

but did you draw them in 2d or is it a view from a 3d?



[Vittorio]

@falonef if the question was for me.. I did the 3d of example and the quoted table



[falonef]

was aimed at the user who started the post.

thanks for your feedback



[Ste82]

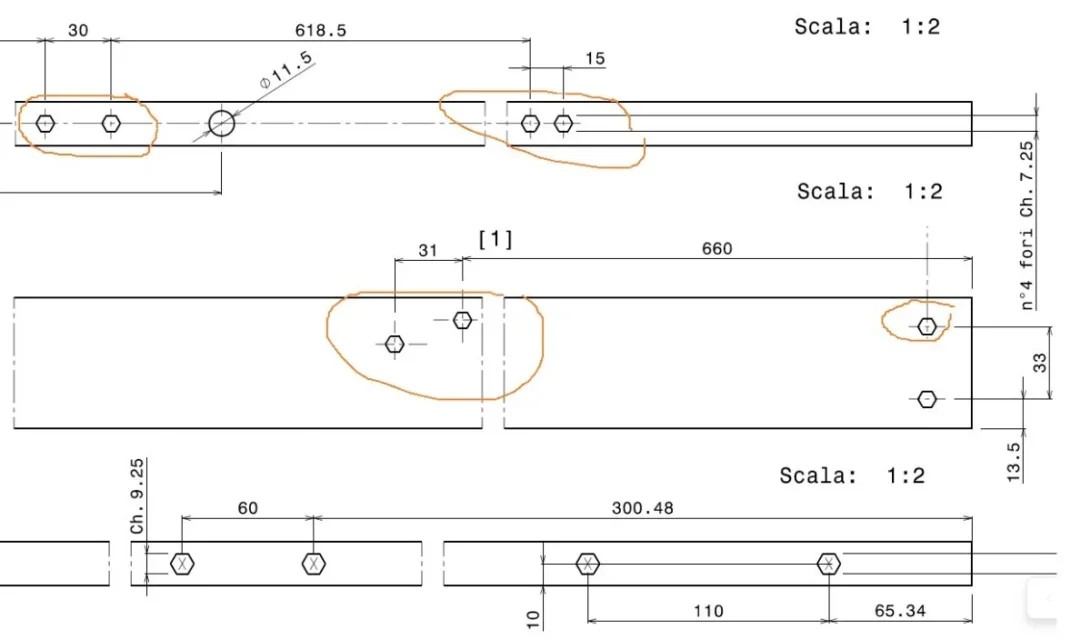

It is a 2d view, based on 3d design...thank you for now I have done as the example of victorious. to make you understand I put an image, on the design I already appeared some hexagons with axes, to I failed to replicate them as I found them.. .
