how to make a partial section

Hubble

Guest

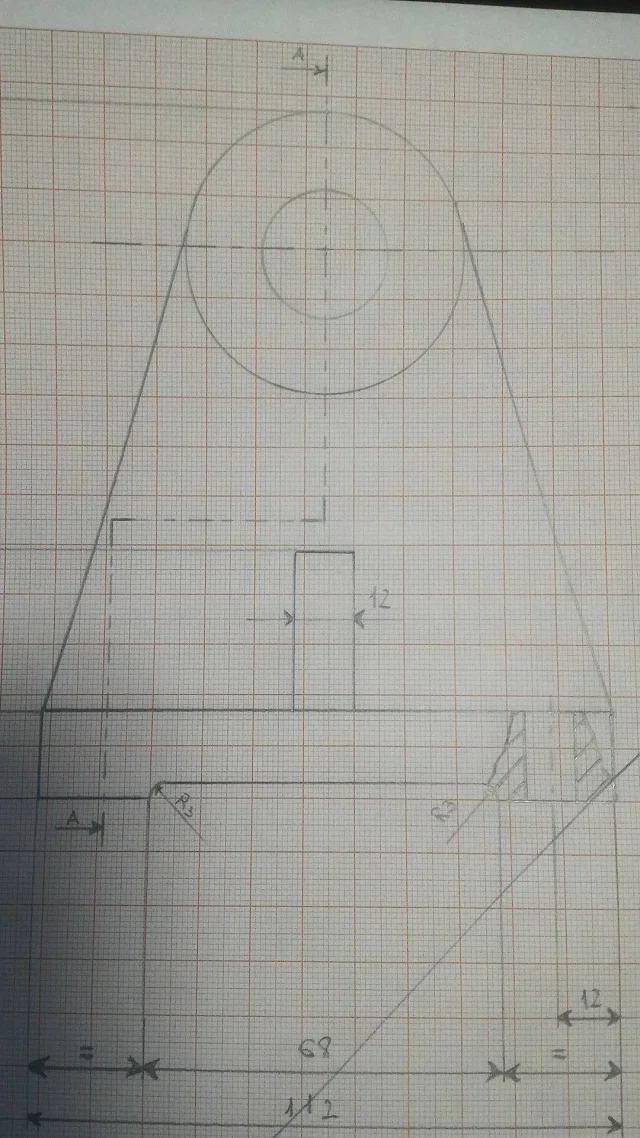

Hi, guys, this is the first time I've been writing here and I'd like to ask you a hand. to save a view in drafting I would need a partial section. How can I develop it in the casket?22664301_2027603827459607_1225136650_o.webp like this in figure.

insert/view/broken view/mask view

via select points a part pane to be dissected, when you have finished a window appears where you can select the depth of the section plan.
