how to take the correct quotation

[stefer]

Good morning, everyone. I happen sometimes to have a piece with a corner that at the end of processing then is rounded.
drawing, when I come to quote the rounded part, in truth I would often need to take the quota of the line that if it were unrounded would continue "for its way".
I realize it's probably stupid, but I can't figure it out.

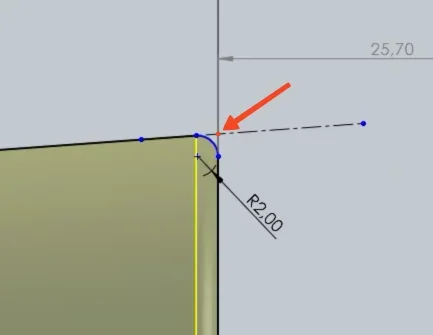

I attach an image to be clearer. the only system I found is to put a construction line and to quote the intersection... but I wonder if there is something more elegant and immediate.
Thank you all!
steak



[SperX]

I usually insert an intersection point. . .



[stefer]

even in the case of table?
as in this case?



[SperX]

sure...if you don't want to do another point you can always see the sketch of the part.. .I always do: select lines and point then intersection



[MFT]

https://help.solidworks.com/2021/it...n.htm?id=4f1ed30f8d0c4c07a31dc849a4402902#pg0



[stefer]

https://help.solidworks.com/2021/it...n.htm?id=4f1ed30f8d0c4c07a31dc849a4402902#pg0

Great, thank you, that's what I was looking for!



[Gabriele SWX]

when you're in the quota mode, if you right click on one of the two edges you have to quote, a menu opens where you can select the "find intersection" item. do the same for the other side and the share will leave you from their intersection.



[stefer]

®

when you're in the quota mode, if you right click on one of the two edges you have to quote, a menu opens where you can select the "find intersection" item. do the same for the other side and the share will leave you from their intersection.

Thank you! !
