we will have to make an industrial metal shelving for a storage, measures. two meters long, two meters deep one meter, some constructive suggestions . should support heavy loads, use profiled or boxed? Thank you.



[MassiVonWeizen]

upn columns, upn mountings, corner shelves frame, sheet metal with angles welded under as stiffening



[PIETRO2002]

try searching on the internet companies that produce shelving, give you the loads that can sustain, if it does not have to be something special, it seems to me wasted starting from zero with design and construction.
I believe that when you can use commercial components it is cheaper and safer to go to this road.



[meccanicamg]

try searching on the internet companies that produce shelving, give you the loads that can sustain, if it does not have to be something special, it seems to me wasted starting from zero with design and construction.
I believe that when you can use commercial components it is cheaper and safer to go to this road.

then they have to be branded there....no jokes



[PIETRO2002]

Yes exactly, you don't joke like for lifting organs!



[meccanicamg]

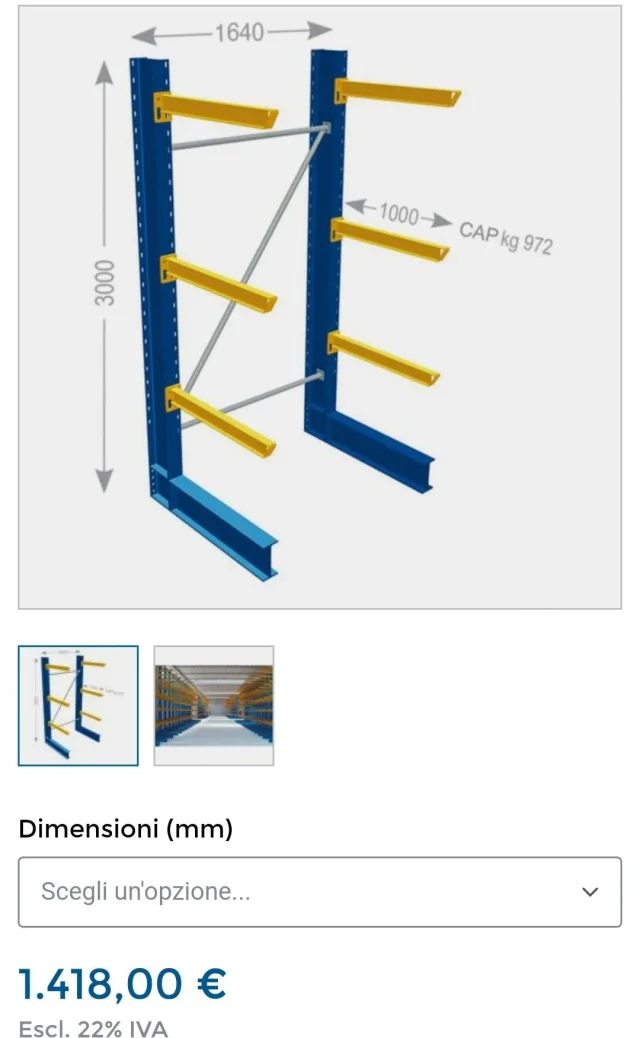

there are also the online configurator. Just try cantilever. they also sell of second hand refurbished and certified half price.even the cost gives you...



[odisseo 18]

like a palett rack I think it's technically called, thanks for the valuable tips



[gerod]

if you go to the site of the unit you will find the product standards of most of the shelvings with also how to size them.
The shelvings, as someone said, are subject to the regulation of construction products and 1090, so, beware of how you build them and the iter (they are excluded light ones, but it is not your case).
some rules...

• uni en 15878:2010 static steel storage systems - terms and definitions
• uni en 15512:2009 static steel storage systems - pallet racking - principles for structural design
• uni en 15620:2009 static steel storage systems - pallet racking - tolerances, deformations and interspaces
• uni en 15635:2009 static steel storage systems - use and maintenance of storage equipment
• uni en 15629:2009 static steel storage systems - specification of storage equipment
• uni 11636:2016 metal industrial shelving - validation of storage equipment
• uni 11262-1:2008 metal shelving - commercial steel shelving - part 1: requirements, calculation methods and tests
• fem 10.2.08 recommendations for the design of static steel pallets racks under seismic conditions
• uni en 16681:2016 static steel storage systems – pallet racking – principles for design



[odisseo 18]

Thank you, I have made it, using 160 ipe beams for the 100 hea beams for the base beams and 120 beams for the embossing shelves, profiled at 50 t for the bags. Thanks again
