interferenza thread

[chip_20]

hi to all, after having created a mothervite and screw, and using the function of solidworks "tuning", of course same thread for both.after having coupled them I noticed, using the interference control of the tool "evaluating", that the interference is there. Is that normal?
Thank you.
chips



[MassiVonWeizen]

Is that normal?

If he gives you the message, yes. Since reading the coffee funds to view the mating today I can not be right to the software

the threading function creates the propeller on the two parts.
if the propellers do not fit perfectly from interference. so if you want to use realistic threads you have to pay much attention to the type of coupling used.



[Meteor02]

If I understand you well, https://www.youtube.com/watch?v=sgsg7j3eiic



[chip_20]

hi, place an image to make the concept clearer.

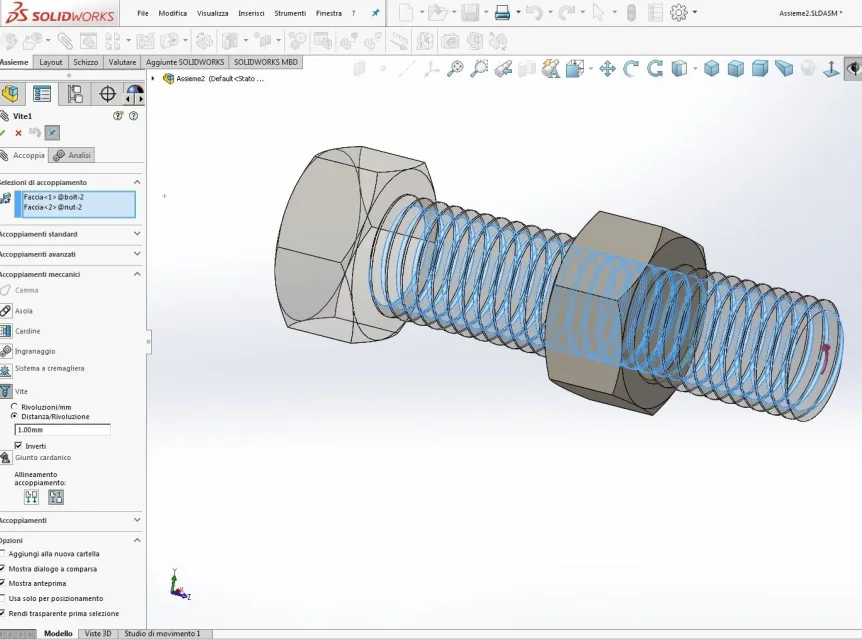

are 2 8x1 threads. in couplings I choose screw and distance revolution 1mm, like threads. Then I follow the interference control and voilà is there. Actually it seems almost logical that there are otherwise there would be a game between lives and mothers, no? I said shit.
Of course I coupled the bottom of the mothervite and the crest of the screw.



[MassiVonWeizen]

You could also put the file so that it has the version 20nonsisaquale can give us a look. from an image it is difficult to understand where the problem is.
Why should you pray to put all the information and means to help you, I repeat to help you, as if you made us a pleasure that then you do not sleep at night if you do not stand your butts? holy Christ is a vine and a nut not a component of the cern



[chip_20]

Okay, here's the file:nut,bolt and together. Thank you.
View attachment Viti.rar



[MassiVonWeizen]

What version? write it in profile



[chip_20]

written. cmq, is solidworks 2017. Hi.



[MassiVonWeizen]

not having 2017 I exploited 2016 of a colleague and does not give me interference.
the fact is that the starting position must be precise and not interfering otherwise even if the screw coupling is done correctly the result will be the one displayed in the pictures.
allego file in 2016View attachment Assieme3.zip



[Meteor02]

He's right to have a big eye here. https://www.youtube.com/watch?v=qahfjxchutu
