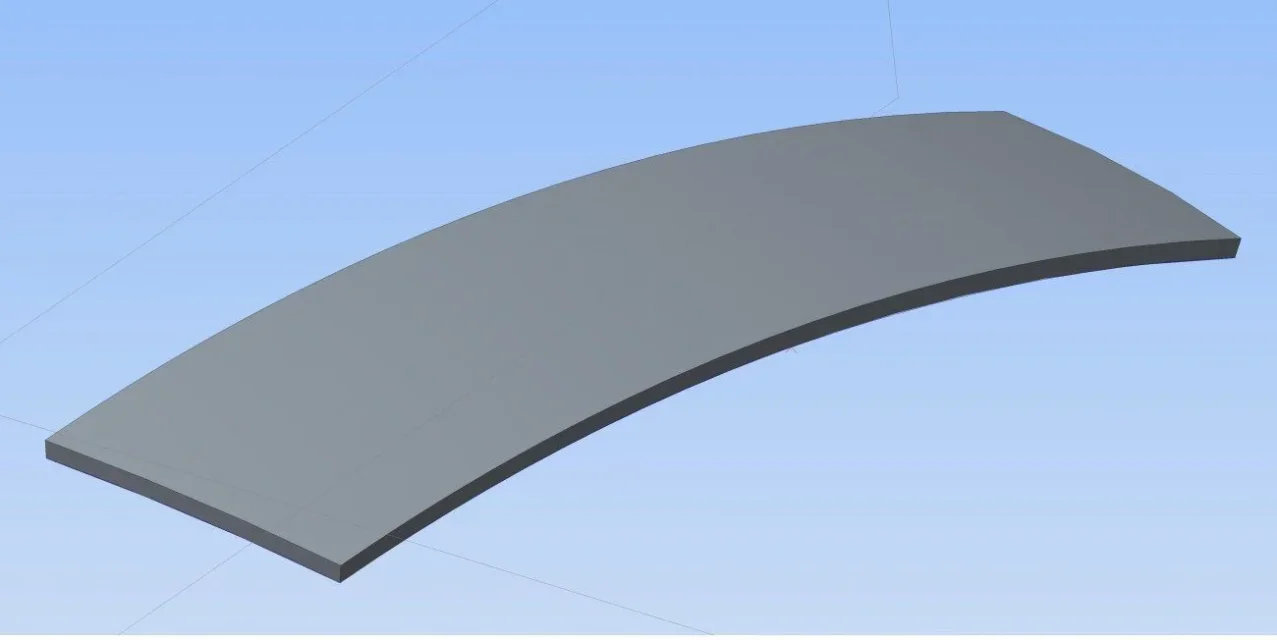

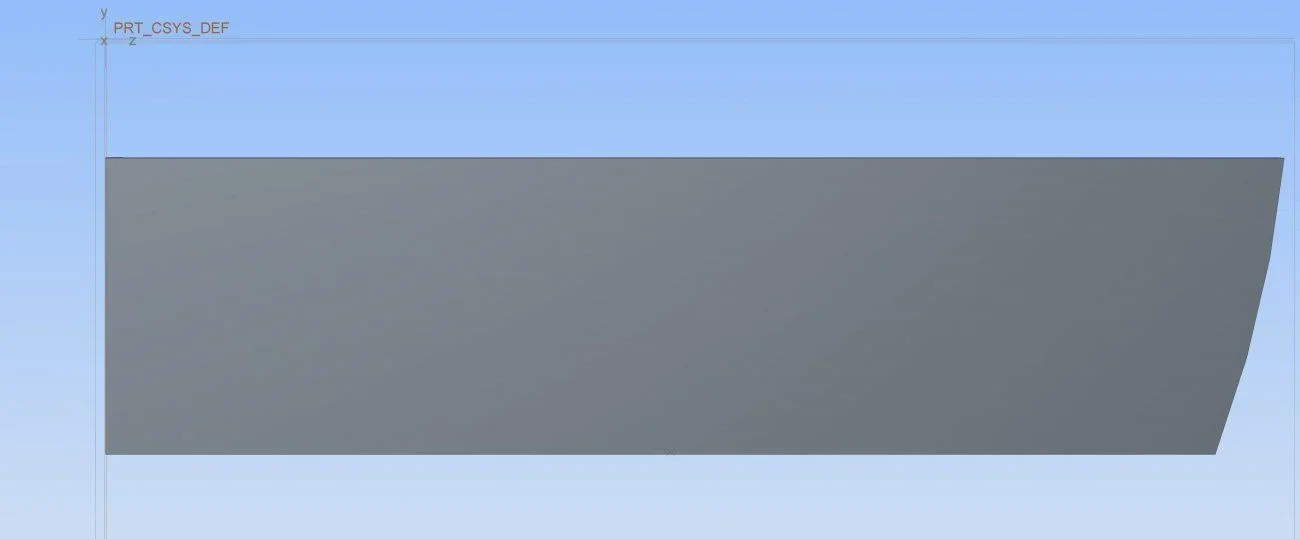

Good morning, I'm struggling with the plate attached, I can't flatten it with sheet metal, is there any soul that can indicate the path? thanks for collaboration



[magma]

How can I attach the prt file here?



[320i S]

Is it shaped like a sheet? or is it a solid?



[magma]

Is it shaped like a sheet? or is it a solid?

surface extracted from a stp file...solido cmq



[320i S]

you must first convert it into sheet metal, then activate all commands, including to flatten



[magma]

you must first convert it into sheet metal, then activate all commands, including to flatten

already done



[320i S]

but does it have a single radius?, or does it have a non-linear pattern?



[magma]

but does it have a single radius?, or does it have a non-linear pattern?

how can I post the 3d file here



[320i S]

zip or rar and attach it.



[magma]

zip or rar and attach it.



[freexf]

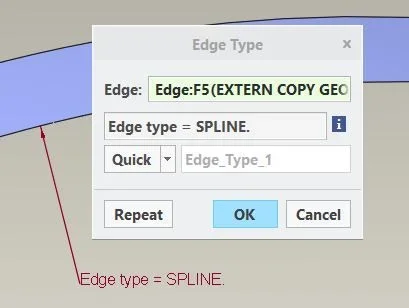

Undevelopable geometry because edge is spline type.
alternative to use the superfic flattening funwione.



[magma]

Undevelopable geometry because edge is spline type.
alternative to use the superfic flattening funwione.

they tell me that the superfice originates from a revolution then cut and shaped
