as from title I should get the design of a logo, to be used with a laser marker, which I now only have in jpeg format.
it would be convenient to insert the image into a drawing so that you can "recalcate" lines and texts.
in the drawing environment you do not activate me the "insert image" button, is there a way to do it?
or even a better method?
Thank you.



[Catafratto]

look at the program inkscape (it is opensource): is a "artistic" graphic program in vector format. among the various possibilities it offers there is also that of vectorizing jpeg images; obviously it is not an accurate thing, but perhaps it can suffice. . .



[TECNOMODEL]

I'd rather draw it on inventor so I could handle it better.
I will have to make several tags with different size and text, with inventor I would work in an environment I know without having to learn to use a new software.



[Cast16]

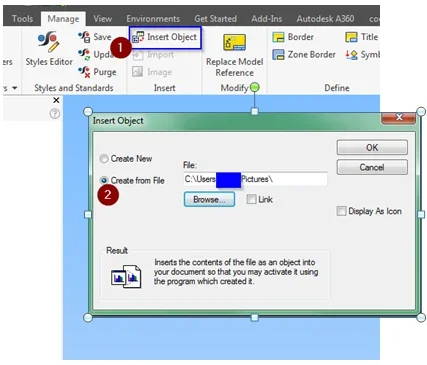

you have tried this?



[TECNOMODEL]

What do you think is better to operate?
I create the logo as a sketch symbol so that I can insert it from time to time where it serves?
or do I create a file with the only sketch of the logo and derive it when needed?
or anything?
considering also that it may happen to have to enlarge/reflect the logo according to the cases.



[Matteo Cappelli dis.CAD]

I would do the sketch and turn it into block and then I would charge it with a trivial copy paste managing so also the stairs.

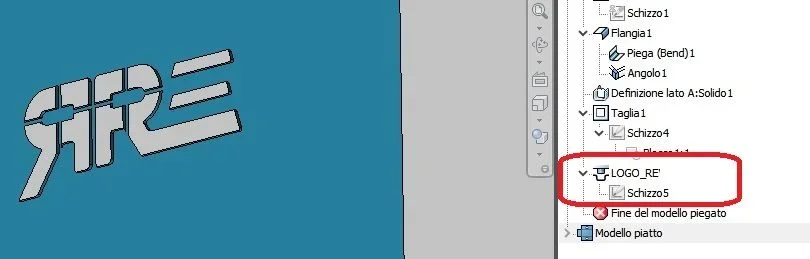

if you want to get the top, you can generate a punch with the logo and then, determine the size from the punch options
see my post with "unthought" on the generation of punches

Hi.



[TECNOMODEL]

What do you mean, "transform it into lock"?
I started creating a sketch symbol, I thought I'd use that.



[Matteo Cappelli dis.CAD]

create block in the sketches of the parts

or as a punch
