+forte
Guest
Here they are.
and this is what they do with a click
and this is what they do with a click
+forte
Guest

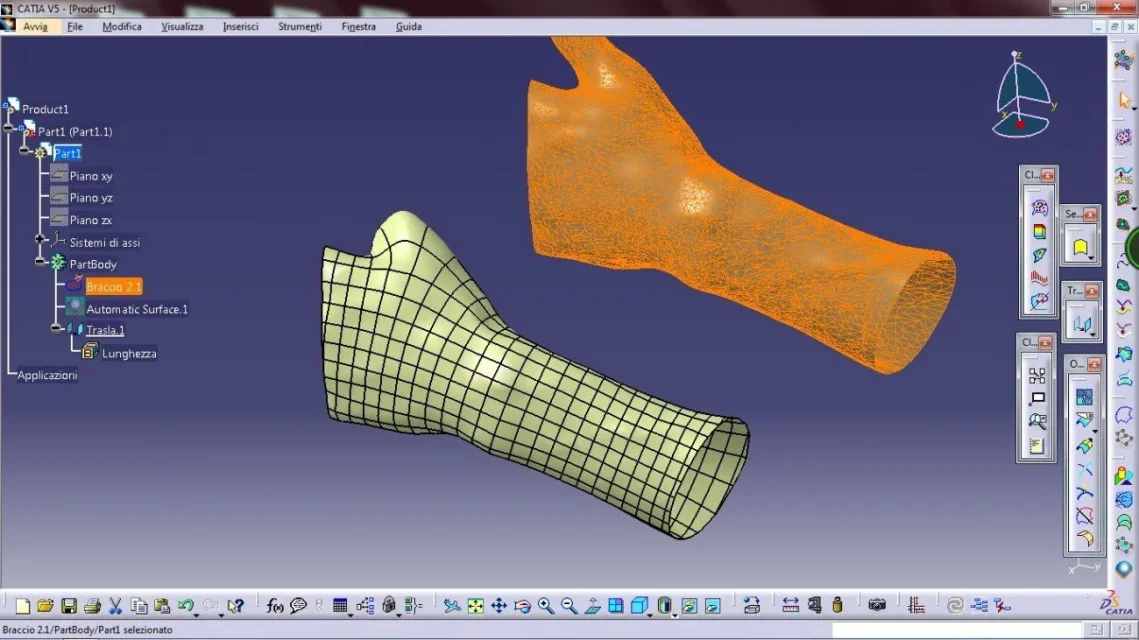

Catia eats a piece of thumb
ale47p
Guest
big +forte
Guest
Geomagic also has it
+forte
Guest
also 3dcoat https://3dcoat.com/ allows to polygonate a mesh automatically
salvi obj,la apri con blender la salvi dxf e la apri con swx come dxf 3d
salvi obj,la apri con blender la salvi dxf e la apri con swx come dxf 3dPolymar
Guest
excuse my negligence in the field of reversing, is there something similar in zw3d?!? ! ?
+forte
Guest
I tried zw3d 2019 a few months ago and it doesn't seem to have anything like that
However the magic keys only work if the mesh is perfect otherwise a message appears that says more or less: mesh has non manifold geometries and automatism does not part
What are non manifold geometries?
http://docs.mcneel.com/rhino/5/help/it-it/popup_moreinformation/non-manifold_edges.htm http://docs.mcneel.com/rhino/mac/help/it-it/commands/showedges.htm https://www.sculpteo.com/blog/2017/10/18/how-to-fix-non-manifold-geometry/+forte
Guest
I do not know
+forte
Guest

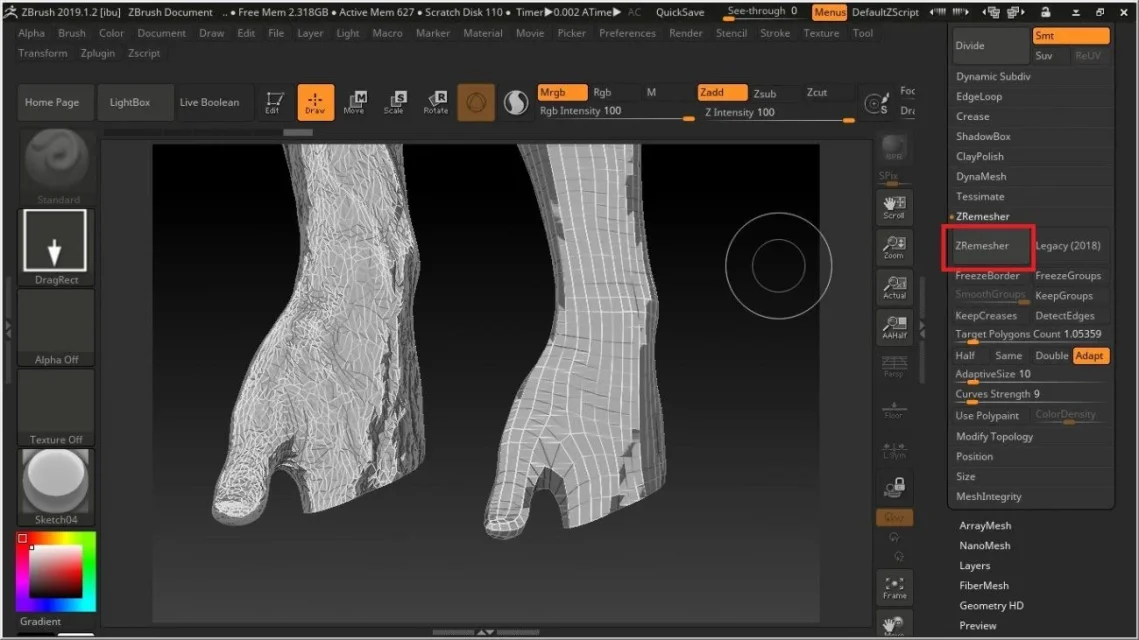

I forgot about zbrush and his zremesher toolhttps://pixologic.com/
marcok625
Guest
to what seems geomagic creates better results, others make great approximations.
it also seems that create parametric returns the less heavy model (with less facets) and quite similar to the original one.
it also seems that create parametric returns the less heavy model (with less facets) and quite similar to the original one.
Polymar
Guest
interesting ... also solidworks can create surfaces starting from mesh. Any impressions on the final result? certainly cannot be worse than the integrated plastic advisor, which always says the opposite of Moldovaflow. a pity that reality is right to the latter.
marcok625
Guest
I with solidworks tried to create a surface from a stl file created with a 3d scanner but the software returns me an error saying that the file consists of too many polygons and solidworks can not manage them.
while using freecad it worked me, I put a couple of days processing but it managed, the problem is that the outgoing file is almost 3 gb the incoming one of about 50mb, and a file so heavy in step I do nothing, my purpose is to have the encumbrance machine for integrations.
LaboratorioDieci
Guest
Did you do it using the scanto3d function?
However, excuse the oct, to have a base on which to build another even a graphic body can be enough.
Polymar
Guest
In fact I noticed that almost all these meshing modules always make great promises, but they lead to an acceptable result only on ad-hoc scans. in reality the results must always be re-elaborated and wisely retouched, sin that then the hours spent on these triangular clusters begin to be felt during invoicing.
Polymar
Guest
Yes, exactly, it always depends on what you have to do. If you do not need too much precision, there is usually a command to simplify the model, in zw3d is "reduce".
marcok625
Guest
Hi, I don't have that option. Are we using solidworks 2016, is this a paid function? because we have active maintenance contracts and if it were enough to upgrade solidworks, I would dedicate a car to this purpose. our license is standard solidworks.
LaboratorioDieci
Guest
from the 2016 version the scanto3d is part of the professional version, before needed the premium. However, but here I go off topic, from solidworks 2018 the system also provides basic mesh bodies that allow to exceed the previous limits of polygons.
Polymar
Guest
in my sw2018, professional version, the scanto3d plugin is enableable.
+forte
Guest
It's true, mea culpa, I use too many programs and I forgot scanto3d of swx
