rhino 7

[Mauro_749]

hi to everyone, I would need help, I recently downloaded the rhino test version because finalmnte uin company decided to buy a specific software for surfaces.
I have a probllema that I can't really solve two or the truncated command and extend.
I ask you if I have two surfaces of a model as I do to:
- first what to extend the surface to the perfect intersection with the cutting one?
- How come the truncated command never works for me?

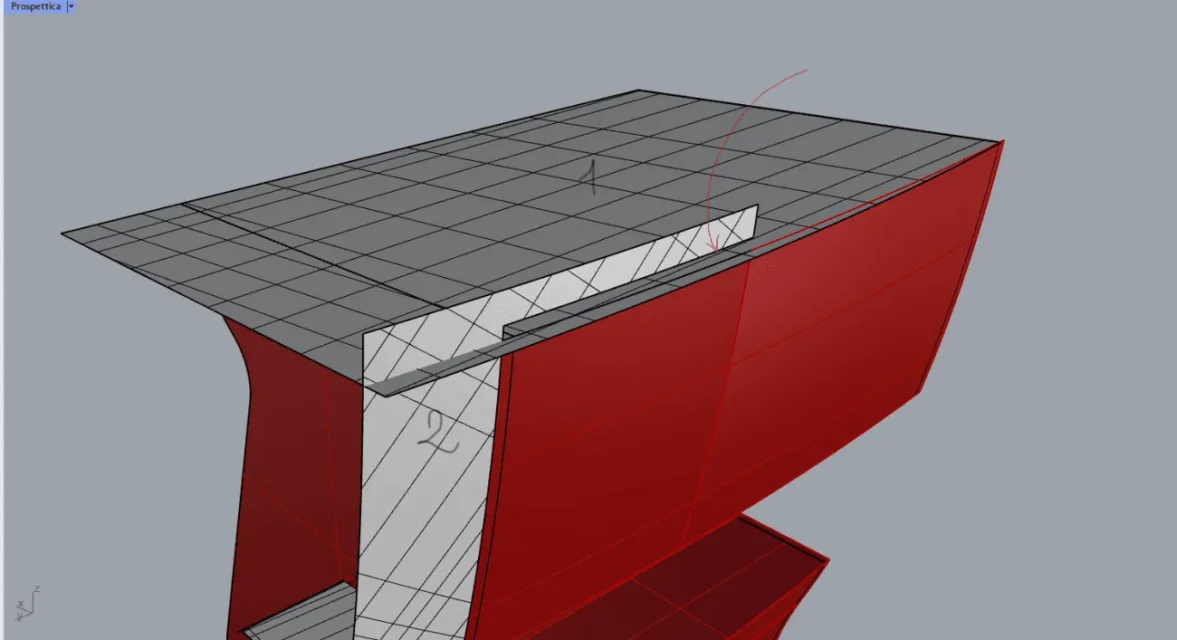

I carry the two surfaces I want to extend and cut.
the sup. 1 I must extend perfectly on the 2
the 2 becomes the cutting surface and then cuts the 1 extended.

thanks to all



[Vittorio]

Unless he's evaded, but I remember not rhino4
the cutting surface had to be as long as the surface to be cut
check that in the various cutting options there is the possibility to insert " tangent propagation" or something similar
otherwise you need to create appropriate cutting curves



[Vittorio]

hi to everyone, I would need help, I recently downloaded the rhino test version because finalmnte uin company decided to buy a specific software for surfaces.
I have a probllema that I can't really solve two or the truncated command and extend.
I ask you if I have two surfaces of a model as I do to:
- first what to extend the surface to the perfect intersection with the cutting one?
- How come the truncated command never works for me?
I carry the two surfaces I want to extend and cut.


the sup. 1 I must extend perfectly on the 2
the 2 becomes the cutting surface and then cuts the 1 extended.

thanks to all

I begin to be intolerant to those who ask for help and then disappear into nothing.
courtesy and education is a gift of few



[Mauro_749]

I begin to be intolerant to those who ask for help and then disappear into nothing.
courtesy and education is a gift of few

My dear too easy to judge without knowing, from the tronde is the least effort to say something without reasoning.



[Vittorio]

Don't take it.
you always find time to ask for help and never for a simple thank you for the interest in your question, but especially if the given advice was of help or not of help.
I ask you a lesser effort to understand that this serves to help other people who have met your problem.



[ChiaraMJ]

Bye! sup 2 can never cut the sup1 because the second is smaller; Make sure to extend the cutting surface throughout the width of the surface to be truncated. As for the first question I have not understood that you have to do; Do you have to create a flat surface that has as boundaries those of geometry in red?



[Tristan]

...

I point out that you are answering a post of a year ago plentiful and that the author (among other things very rude) has not accessed the forum for as long.
dubito receive reply



[ChiaraMJ]

I didn't realize, thank you. Well, it could always be useful to those who read if they have the same problem. .
Have a good day!
