scanner professionale blue led shining 3d

heterodyne

Guest
I sell cause inuse 3d scanner to professional blue light ideal for reverse engineering and methyl applications.
It is a quite versatile scanning system. I used it to measure objects from about 30mm up to over 3 meters.
if you are interested write me a message in pvt

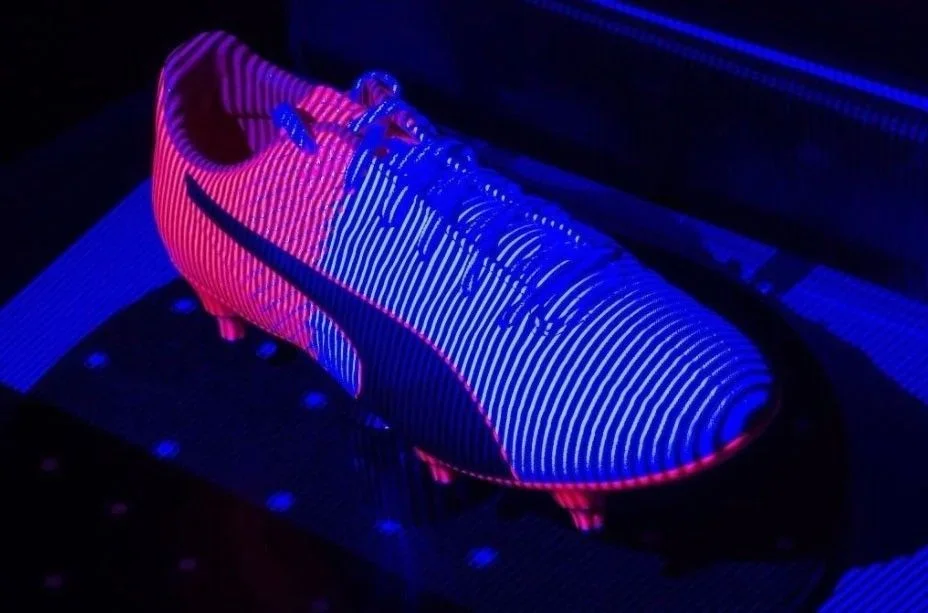

specificationsScanning technology: projection of fringes, blue light
production: December 2016
guarantee: in progress but will end in December 2017
conditions: excellent, free from any defect

working areas: 3, 100×75mm2 gate200×150mm2 gate400×300mm2
dimensional accuracy : 0.05 to 0.03 mm
point-point distance: from 0.07 to 0.31 mm
scan rate (for single measurement): < 5 seconds
scan depth: from 100 to 400 mm
resolution: a pair of 1.3mp stereo cameras
source: blue(led) light
alignment methods: photogrammetry (markers), automatic (bestdit), manual 3-2-1
scan data rescue: asc,stl,ply,rge,p3,pf
pc configuration: intel core i5 3350 or higher
vga: geforce gt 640o upper
memory ram: 4g ddr3 1600 or higher
operating system: win7/8/10 64bit
prezzo: 6.500 euro
accessories included- license dongle usb + scanning software (dvd)

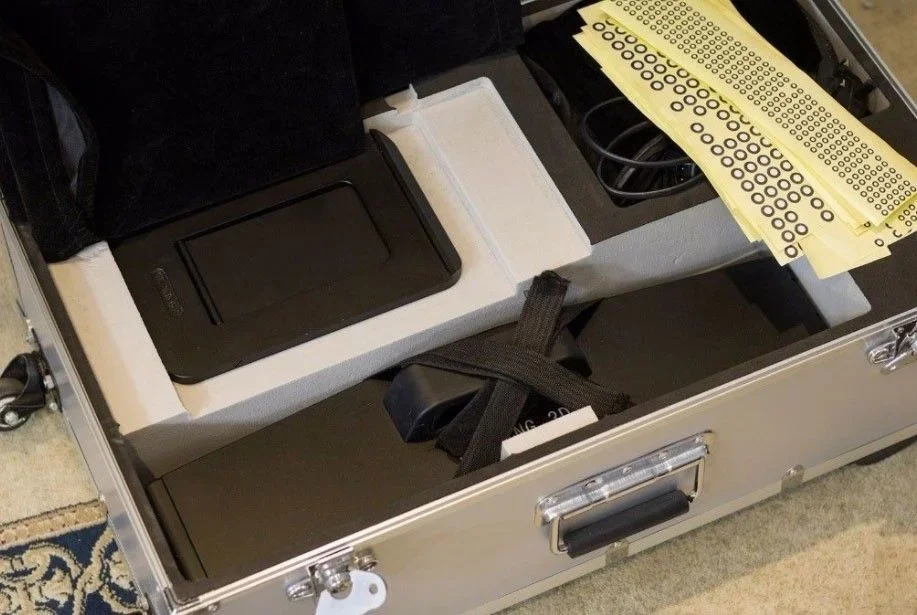

- aluminium flight case with transport wheels
- 3 ceramic certified calibration boards
- photogrammetric markers set
- tripod.
- cables: hdi, usb, power supply
