search photos of mechanical overall sections

[marcoevolution]

in order only to exercise on the recognition of the components of the technical drawing (unified) and of the modeling 3d of the unified elements, I am looking for images of sections of mechanical complexes (an example, the only one in my possession, the place below)
I apologize if I have wrong forum section



[MassiVonWeizen]

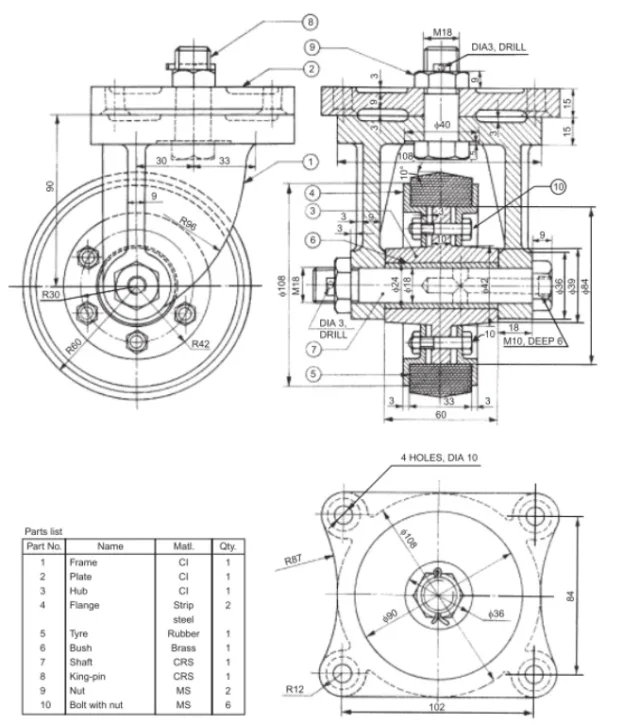

in the forum there are. I also posted a small exercise for someone who had asked a question similar to yours. This is a wheel group made in dwg. I look for it tonight and mark it



[MassiVonWeizen]

I can't find it anymore, so I'll get another fact in speed, so it might have some flaws.
the measures the revenues from the dwg also there are some missing parts that require the completion of the objects



[meccanicamg]

on the books of niemann find the world....especially gearboxes. then there are technical drawing textbooks and then....you can think of designing from scratch some group doing something, learning to dimensional, shape and mount. on the forum there are more posts with the same question... .



[meccanicamg]

I'll attach you some axioms or explosives to rebuild.



[meccanicamg]

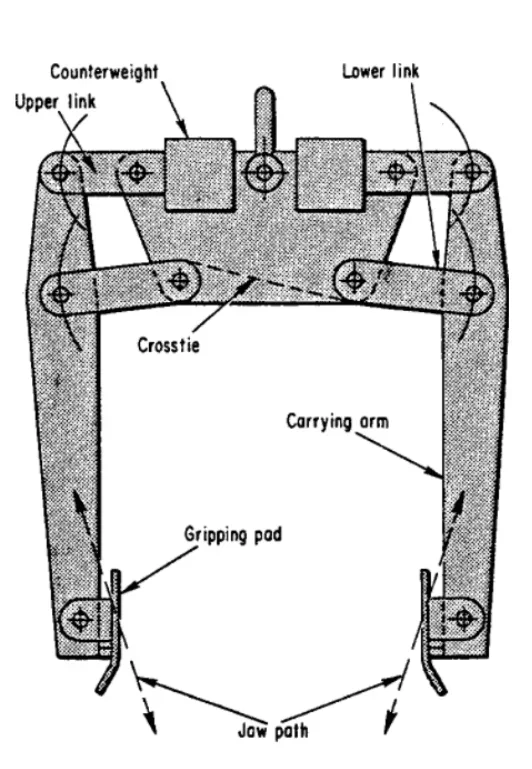

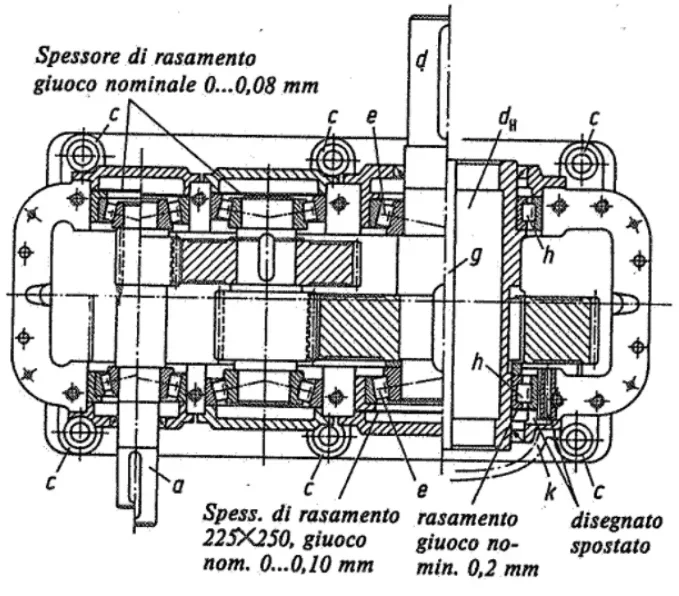

old riduttori



[MassiVonWeizen]

another that in a month did not find 5 minutes to thank and to tell if the posts were useful... applauseni!! !



[marcoevolution]

I am absolutely wrong: Excuse me!
But know that I really enjoyed your help and even if at a distance of time I want to thank you very much!



[DoctorBomber90]

Good morning, everyone.
I'm going to give up this old discussion.

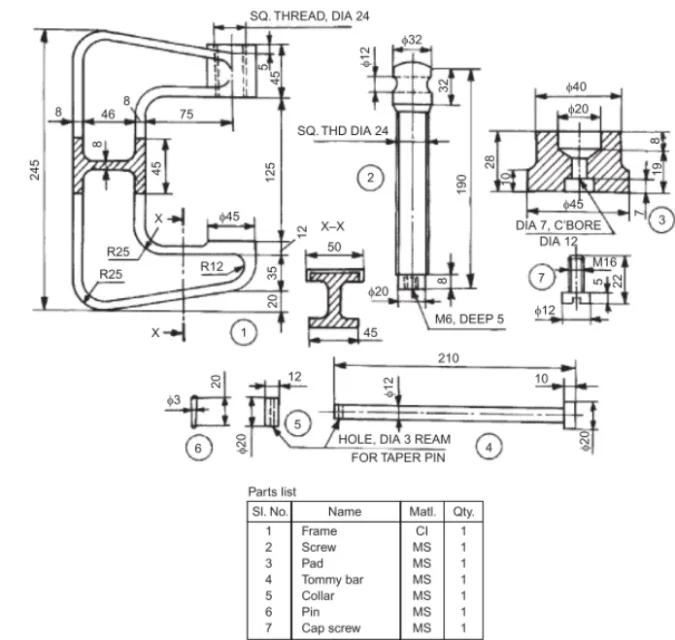

in one of the drawings of post n°5 of @meccanicamg, in particular the image "wp_ss_20180528_0001", I noticed that the life (component 7) has the diameter of the head 12 mm but the nominal diameter of the thread is a m16.
Am I wrong or is it a text printing error?
thanks for the attention.



[@ndreaR]

Good morning, everyone.
I'm going to give up this old discussion.
in one of the drawings of post n°5 of @meccanicamg, in particular the image "wp_ss_20180528_0001", I noticed that the life (component 7) has the diameter of the head 12 mm but the nominal diameter of the thread is a m16.
Am I wrong or is it a text printing error?
thanks for the attention.

looking at the compost n°3 I think it should be a screw m7, while the laminated part of the hole diameter 12.



[Fabietto]

perhaps easier than it is a m6, and therefore error of printing the text. .



[meccanicamg]

Good morning, everyone.
I'm going to give up this old discussion.
in one of the drawings of post n°5 of @meccanicamg, in particular the image "wp_ss_20180528_0001", I noticed that the life (component 7) has the diameter of the head 12 mm but the nominal diameter of the thread is a m16.
Am I wrong or is it a text printing error?
thanks for the attention.

is definitely a mistake in the text. when you will see what is best as encumbrance looking for a standard European screw.
