set in autocad 2014 menu icons as in autocad 2007

[al9k]

is it possible to replace the icons of the 2014 autocad menus with those of 2007?

2014 icons are horrendous... They are all the same and sincerely... I can't distinguish them like those of 2007...

is it possible to do this customization?
must act on the acad.mnu file? ?

Would someone kindly give me a tip? ? ?



[PlannerRoad]

No, it's not possible.
I think we should get used to it.



[al9k]

Thank you



[Tristan]

It's just a matter of habit. . .



[al9k]

My was not a hub...
I have business problems and sincerely as I am discreetly fast with autocad... I often click an icon instead of another and it is striking. . .



[GP.]

if you have still installed the 2007 see where the icons are and then assign them to the commands that interest you in 2014, it is clear that you have to change them all you have to take some time... .
otherwise look for them on a pc where there is 2007.

to change them use the command: to which



[al9k]

if you have still installed the 2007 see where the icons are and then assign them to the commands that interest you in 2014, it is clear that you have to change them all you have to take some time... .
otherwise look for them on a pc where there is 2007.

to change them use the command: to which

Yes, it is. I should go through this...
If not, I'm gonna have to do all the custom menus. . .
I was hoping that they could copy some files. . :

I take a look at the command... Thank you!



[GP.]

I don't think there are fast operations to do what you ask for this should be the procedure:

a) in autocad 2007 col command jupers (always existed, while it seems missing from 2014) selects the controls of the toolbars you want to change the icon, such as text/scale (see image):

b) clicca su change, then save by name without rc_data_16_ (in our case ♪)

- b1) in the folder you want
or

- b2) in the folder that should propose you by default, i.e. the one you find indicated in the options\file\file\file\customization file\position icons. (*)


now you have two roads to continue:
1) copy all icons in the "custom icon position" of autocad 2014 (always options\file\ecc. )
in autocad 2014 repeat the procedure iupers and, for each command, in the window " button icon" --> edit --> It matters. the corresponding icon.
2) <non dovrebbe="" funzionare="" ma="" testato=""> if the two versions are installed in the same pc, via windows start, placed in the subfolder of autocad 2014 and "exegui migration from a previous version".

If option 2 works in one single shot you will find all the already customized icons, clearly you must have chosen the saved indicated in b2.


(*) If you want you can indicate a "more comfortable" to find.</non>



[al9k]

:finger:

I don't think there are fast operations to do what you ask for this should be the procedure:

a) in autocad 2007 col command jupers (always existed, while it seems missing from 2014) selects the controls of the toolbars you want to change the icon, such as text/scale (see image):
View attachment 33897
b) clicca su change, then save by name without rc_data_16_ (in our case ♪)

- b1) in the folder you want
or

- b2) in the folder that should propose you by default, i.e. the one you find indicated in the options\file\file\file\customization file\position icons. (*)


now you have two roads to continue:
1) copy all icons in the "custom icon position" of autocad 2014 (always options\file\ecc. )
in autocad 2014 repeat the procedure iupers and, for each command, in the window " button icon" --> edit --> It matters. the corresponding icon.
2) <non dovrebbe="" funzionare="" ma="" testato=""> if the two versions are installed in the same pc, via windows start, placed in the subfolder of autocad 2014 and "exegui migration from a previous version".

If option 2 works in one single shot you will find all the already customized icons, clearly you must have chosen the saved indicated in b2.


(*) If you want you can indicate a "more comfortable" to find.</non>

too kind! Thank you!
As soon as I have a moment, I'll put myself... so maybe I learn something about customizing icons...
If I have any doubts or difficulties I will allow me to recontact you.. . .



[al9k]

I tried to save the icons of the toolbar ''layer ii'' in the default folder of custom autocad icons 2007 and that is:

c:\users\username\appdata\roaming\autodesk\autocad 2007\r17.0\enu\support\icons

I closed the program

started from start -> autocad 23014 - migrate from previous release

(autocad use in English)

I used the default option, which means I didn't touch anything... I gave ok and he opened a log file in which he tells me that he exported everything:

I opened autocad 2014 but unfortunately the icons of the toolbar layer ii are the default ones

I also tried by physically copying icons from
c:\users\username\appdata\roaming\autodesk\autocad 2007\r17.0\enu\support\icons

a

c:\users\username\appdata\roaming\autodesk\autocad 2014\r19.1\enu\support\icons


but rebooting the program unfortunately icons do not change:-(


p.s.

in autocad 2014 the command that still exists...



[al9k]

I tried with the command which (iupers) to export to a whose file the toolbars of autocad 2007: importing them in autocad 2014... incredibly... the images change.... and remain the default ones of 2014...

in practice opening the same file that since 2007 icons are those of 2007... in 2014 magically become those of 2014



[GP.]

I tried with the command which (iupers) to export to a whose file the toolbars of autocad 2007: importing them in autocad 2014... incredibly... the images change.... and remain the default ones of 2014...

in practice opening the same file that since 2007 icons are those of 2007... in 2014 magically become those of 2014

followed my suggestion?

b) click on change, then save by name without rc_data_16_ (in our case scaletxt)

otherwise icons have the same name in the two versions and 2014 opens its own.



[al9k]

followed my suggestion?



otherwise icons have the same name in the two versions and 2014 opens its own.

Thanks for the answer!
as I posted earlier:
rc_data_16_

I tried to save the icons of the toolbar ''layer ii'' in the default folder of custom autocad icons 2007 and that is:

c:\users\username\appdata\roaming\autodesk\autocad 2007\r17.0\enu\support\icons

I closed the program

Started by start -> autocad 2014 - migrate from previous release

(autocad use in English)

I used the default option, which means I didn't touch anything... I gave ok and he opened a log file in which he tells me that he exported everything:

I opened autocad 2014 but unfortunately the icons of the toolbar layer ii are the default ones

I also tried by physically copying icons from
c:\users\username\appdata\roaming\autodesk\autocad 2007\r17.0\enu\support\icons

a

c:\users\username\appdata\roaming\autodesk\autocad 2014\r19.1\enu\support\icons


but rebooting the program unfortunately icons do not change:-(


p.s.

in autocad 2014 the command that still exists...

the message I posted later was about another method I tried to use.. i.e. export of toolbars directly from the customization menu. . What doesn't seem to work. . .

in fact the file pers2007.cui with all the toolbars of autocad2007 if it is opened in 2014 sees the icons default,....ma of 2014... and this is something that I can not explain... .



[GP.]

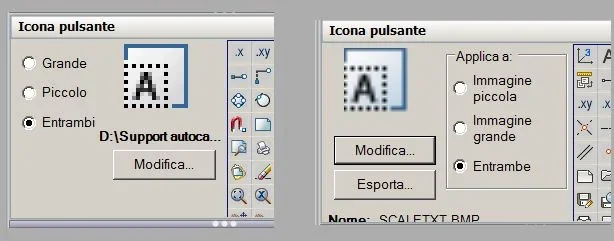

I tried to change an icon and in fact the default one was replaced, but the display is not clear, in the image you see how it was in the old version and how it is displayed in the new one.
the strange thing is that by clicking on "change" the image is displayed sharply in the editor of the buttons...



[al9k]

I tried to change an icon and in fact the default one was replaced, but the display is not clear, in the image you see how it was in the old version and how it is displayed in the new one.
the strange thing is that by clicking on "change" the image is displayed sharply in the editor of the buttons...
View attachment 33937

thanks for the reposition.. .

to tell the truth change the icons once is feasible but long.... I was wondering if there was any other method. .

and why a .cui coming from 2007... is not seen correctm,ente da 2014! sar1a why the icons to be replaced are those by default? ?
