2d inventor how to make bisetrice a bent tube

[Giancesa]

I don't know if there is the system to put the axis of a pipe in one shot only without going to click the binder on each straight and curved tract.



[graziano-g]

bisector or halfway line?
are two things a little different...
you see converging pipes.



[Giancesa]

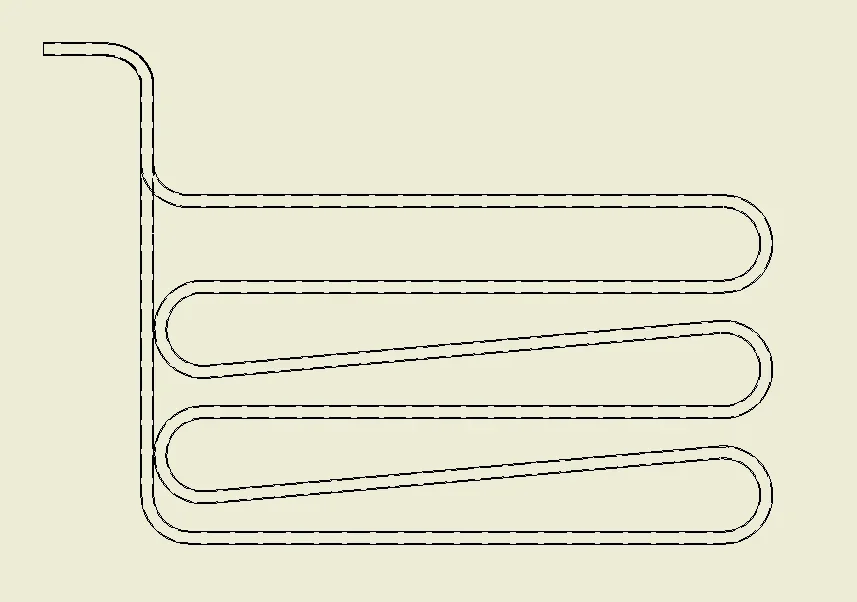

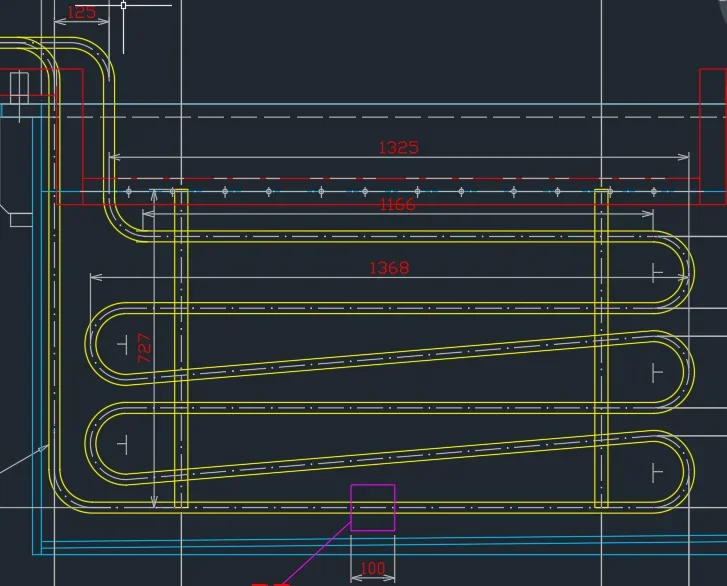

I mean dotted line, which is called bisettrice by the inventor command. The tubes are not convergent, there is no lateral view, where it is seen that the tubes at some point open.



[Matteo Cappelli dis.CAD]

If the "tubo" has been modeled as "sweep" extrusion on a path, you may be able to display the driving sketch and then change the layer in axis type.

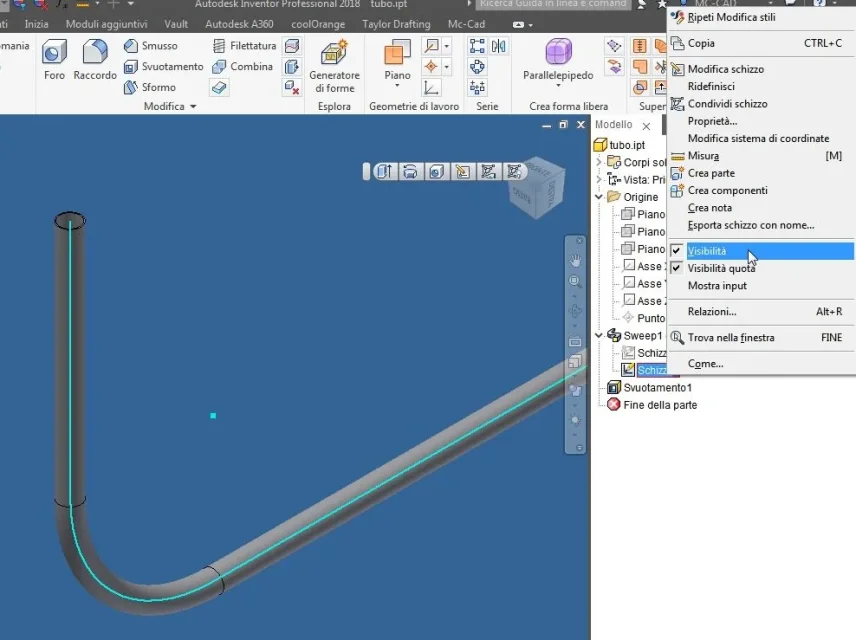

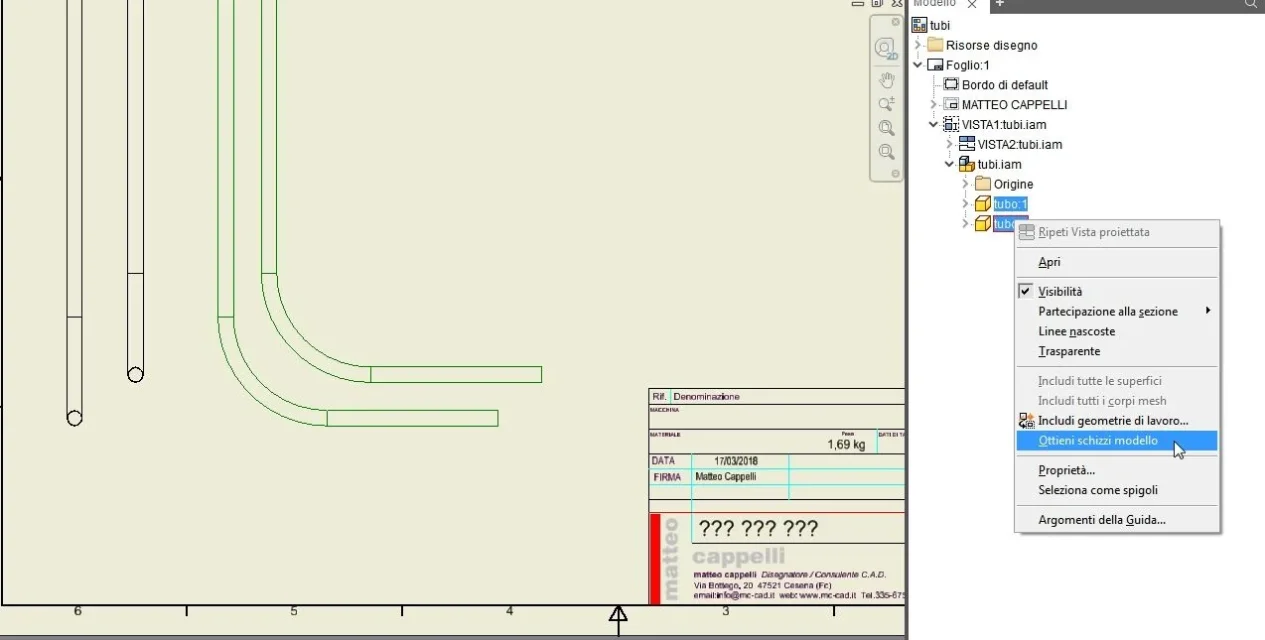

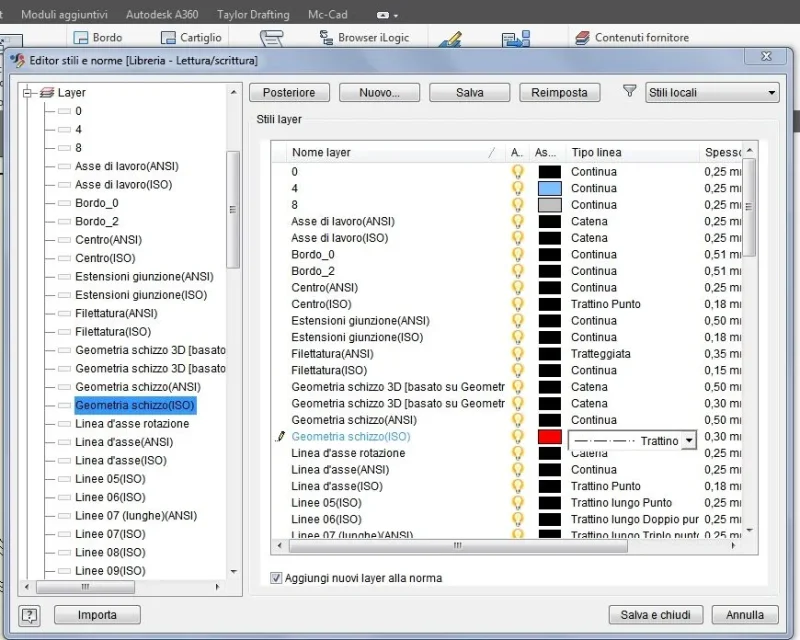

1- view the sketch guide sweep2- carry out the boarding and, by selecting the tubes, select:3 - change the layer with the desired typeline and color

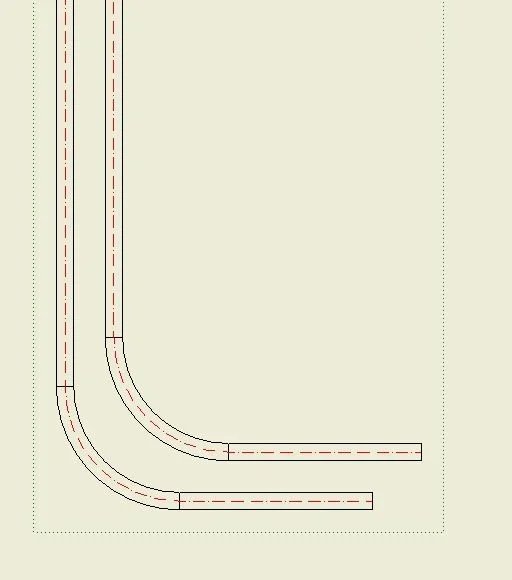

4- here is the result:Good job



[Giancesa]

Thank you. good idea
