3d overlap with silimari surfaces

[xxxfazioxxx]

Hello, everyone, I'm asking for help,

I have 2 3d similar deriving from two 3d scans, sw has some function that can help me to perform a similar couple then perform detour analysis?

Is there software not necessarily related to 3d scanners that can help me with it?

thanks for your advice



[MassiVonWeizen]

What do you mean by similar mating?



[xxxfazioxxx]

What do you mean by similar mating?

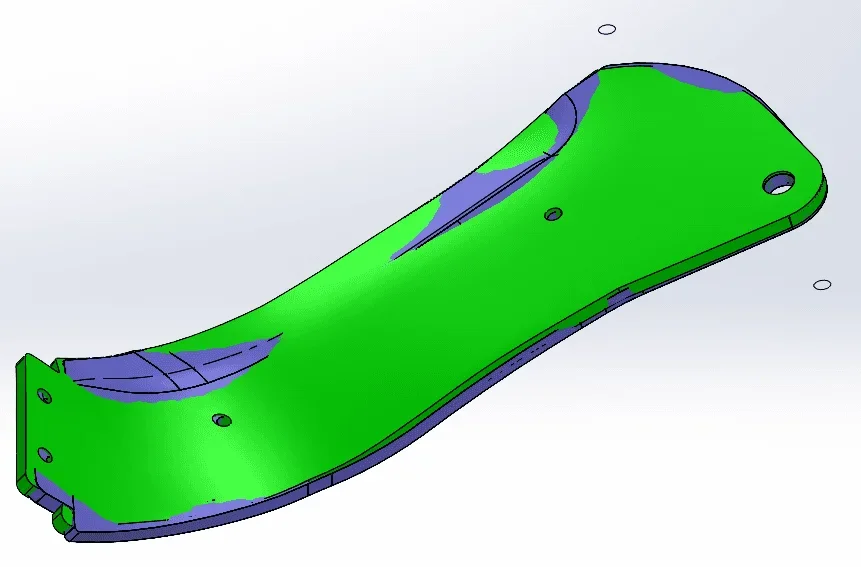

I upload the photo with the "hand-made" overlap to better understand



[MassiVonWeizen]

so you want to couple the two parts so that they can verify their differences.

the coupling you can do by identifying common geometries. in this case where there are many curved surfaces the best thing is the holes
however there is also the method of comparison http://help.solidworks.com/2016/italian/solidworks/sldworks/c_compare_overview.htm



[xxxfazioxxx]

we did some 3d scan demos here in the company and in the bundle sftware there was a function that positioned

so you want to couple the two parts so that they can verify their differences.

the coupling you can do by identifying common geometries. in this case where there are many curved surfaces the best thing is the holes
however there is also the method of comparison http://help.solidworks.com/2016/italian/solidworks/sldworks/c_compare_overview.htm

Yes, only that being scans the relationships do not work a great one, indeed, they often place the two components in an absurd way.



[MassiVonWeizen]

we did some 3d scan demos here in the company and in the bundle sftware there was a function that positioned

What is the software bundle? perhaps misses the end of the sentence because so it makes little sense

s only that being scans the relationships do not work a great that, indeed, often place the two components in an absurd way.

You're the one who needs to place them. if necessary by building appropriate references.
For example, you can draw 3d* sketches on the holes to use them as a bond

* draws a point giving it as relationships: concentric on the edge of the hole and on the surface plane



[xxxfazioxxx]

What is the software bundle? perhaps misses the end of the sentence because so it makes little sense

You're the one who needs to place them. if necessary by building appropriate references.
For example, you can draw 3d* sketches on the holes to use them as a bond

* draws a point giving it as relationships: concentric on the edge of the hole and on the surface plane

Sorry, I wanted to say that in the 3d scanner package they also offered software with functions that allowed you to overlay with a "best fit" the two geometries automatically and then see any discrepancies.

Thanks for the advice, I try to move with 3d sketches and see if I can get something good



[MassiVonWeizen]

try first with the utility I linked
