Riccardo81
Guest
in inventor 2018 can you change the angle of the isometric view and/or switch to the perspective?
Matteo Cappelli dis.CAD
Guest
Hi.

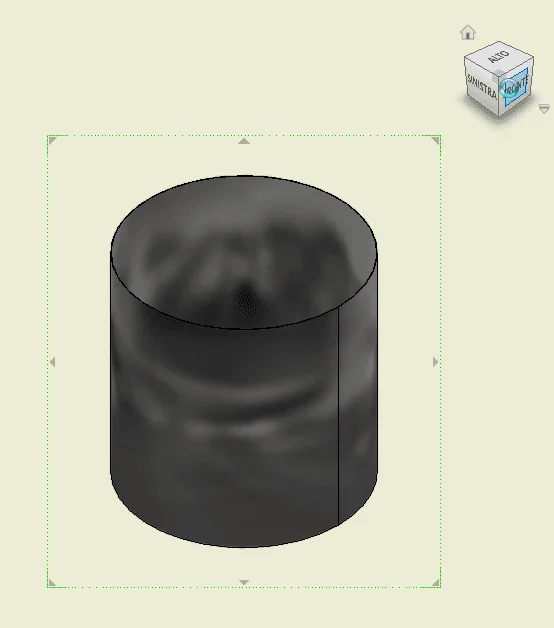

Sure, double-click on the view, the "usual" cube appears and click on the face you want to activate. Sometimes the view cube remains under the "view design" interface, so if you don't see it, move the control mask.
tricks:

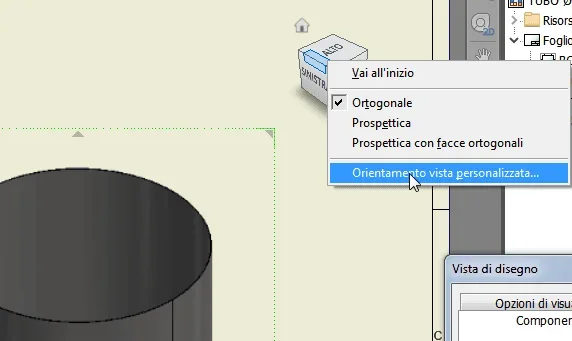

by clicking with the dx ul cube button, you can select "view orientation"
reopen the 3d and allows you to change the angle of view accurately
Sure, double-click on the view, the "usual" cube appears and click on the face you want to activate. Sometimes the view cube remains under the "view design" interface, so if you don't see it, move the control mask.
tricks:by clicking with the dx ul cube button, you can select "view orientation"
reopen the 3d and allows you to change the angle of view accuratelyRiccardo81
Guest
It was a piece I didn't use inventor anymore, I didn't remember it! Thank you!
