45° cut in inner bending

[Devis]

Good morning to all, does anyone have any solution about it? you can see it in the attached file. there is a fast system to make the grooves on the inner folds, in order to obtain the sheet developed for cutting.
Thank you.
f.devis



[sampom]

Good morning to all, does anyone have any solution about it? you can see it in the attached file. there is a fast system to make the grooves on the inner folds, in order to obtain the sheet developed for cutting.
Thank you.
f.devis

use 2010?
I'm sorry but I haven't installed it yet and I can't open your file.
Could you post images and better explain what the problem is and what your intent?
I don't understand what you mean by grooves on the inner folds; so "ear" it comes to tell me that if you have built correctly with the controls of sheet metal, the grooves (and developments) are done automatically without problems.. but without seeing the file I'm randomly pulling.
You should explain better. .

not in many here still use 2010 (among us mod nobody seems at least). risk of having few answers, so better ipg images (see the "expanded" tree maybe) and clear explanations.

greetings
Marco:smile:



[Devis]

At the moment I thank you, and I hope I can explain you better. as you can see in the bottom end you can see bends inward, if I develop in the plane with the flattened command the program would give me error, because there are two ears that overlap, I ask if there is a fast or more correct system to eliminate this type of error. Thank you.
f.devis



[re_solidworks]

systems are:

1- bevelled
2- Extruded cut
3- Modify the flange profile if you used the flange edge command.

I've never noticed, but swx doesn't notice the problem... I'll report it to the assistance.



[Mike1967]

systems are:

1- bevelled
2- Extruded cut
3- Modify the flange profile if you used the flange edge command.

I've never noticed, but swx doesn't notice the problem... I'll report it to the assistance.

make sure you have not enabled this flagignores self-intersecting checks for certain sheet metal functionsand you did not rehabilitate error messages in system/advanced options. :wink:

to me signals the error, even in the table.

returning to the pz, unfortunately the corner in that context
needs a sheet rectangle to be soldered
after performing bends... physically missing material
that must be added to the counter.
in the part I added the pieces with the classic flange tab system
basic, though sw2010 supports multibody.
in this way in putting on the table I have all the components
united to the main part.



[Devis]

That's fine, but I meant, as you can see from the attached design, the 45° cut of the inner folds, as it does on the external buoys automatically I thought it would do internally.



[Mike1967]

That's fine, but I meant, as you can see from the attached design, the 45° cut of the inner folds, as it does on the external buoys automatically I thought it would do internally.

from my personal experience no program finds you automatically
solution to that situation, the sw remove the material in the folds
that adhere to each other once folded.
What you're looking for is an exhaust, so you have to create it.
to do so there are several systems, you must always evaluate from time to time
which will be the best solution considering various aspects including
the changeability of the feature.
I added corner flange1 in your file, with two simple steps you will have
What you're looking for.
Remember that the plates are "live" objects anything but simple solids.
you are among those lucky ones to which solidworks allows certain work, today,
because I can assure you that in the hold version there was something to laugh about.. .
however analyzes the processing added by me, maybe you had not
considered. :wink:



[sampom]

....

....

.....

Would you mind posting pictures, better if you capture directly from the graphic area with the tree you see ("copy" with the key stamp by keyboard and "paste/save" in paint for example)?
I repeat that you are not in many to use 2010.

greetings
Mar



[Mike1967]

Would you mind posting pictures, better if you capture directly from the graphic area with the tree you see ("copy" with the key stamp by keyboard and "paste/save" in paint for example)?
I repeat that you are not in many to use 2010.

greetings
Mar

Excuse me, I try to post an e-drawing:wink:

e-d... 7 mega.. for the moment satisfied with a .avi;-)



[Mike1967]

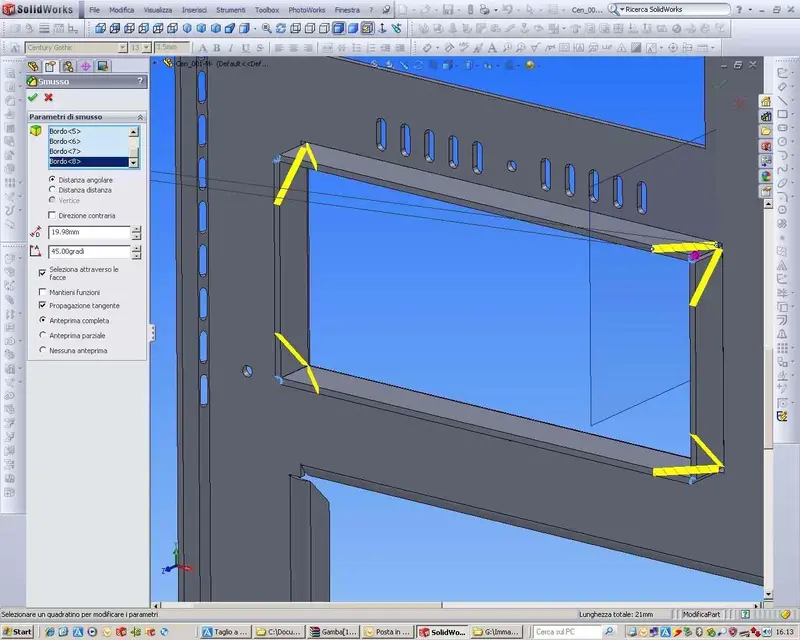

screen... work



[sampom]

screen... work

now is ok:finger:
good, good work and excellently solved:smile:
I just want to see it "under the car"; I imagine you build these artifacts habitually, it takes an excellently equipped bending machine with series of measuring matrices and especially "sagomate" specially.

greetings
Mar



[Devis]

good guys, that's what I wanted, to bend it there's no problem we have all the broken matrices, clearly you have to do 2 workstations, however still thanks and we feel hello



[Mike1967]

now is ok:finger:
good, good work and excellently solved:smile:
I just want to see it "under the car"; I imagine you build these artifacts habitually, it takes an excellently equipped bending machine with series of measuring matrices and especially "sagomate" specially.

greetings
Mar

as has already written devis, we also have fractioned puppets and matrices.
even for some particular work we prepare laser cutting kits.
I, for the truth, are no longer in the workshop, full-time project with solidworks and in the workshop I go only to see that the pieces drawn
managed as a virtual wreck on PC...:wink:



[Devis]

hi marco, I have a company with my brother, we also have a laser cut with attached bending machine and I also spend my day developing prototypes for some customers, as well as making production. first I folded now there are boys who do it for me, so that's why in the design stage I can figure out whether you can do it or not. However, I hope that we will be affected every now and then for some mutual help. Thank you all again



[Mike1967]

hi marco, I have a company with my brother, we also have a laser cut with attached bending machine and I also spend my day developing prototypes for some customers, as well as making production. first I folded now there are boys who do it for me, so that's why in the design stage I can figure out whether you can do it or not. However, I hope that we will be affected every now and then for some mutual help. Thank you all again

my name is michele... :finger:
However yes, I find instructive the use of this forum... every now and then
you have to exchange experiences and impressions.. :wink:
