aesthetic thread

[N5L]

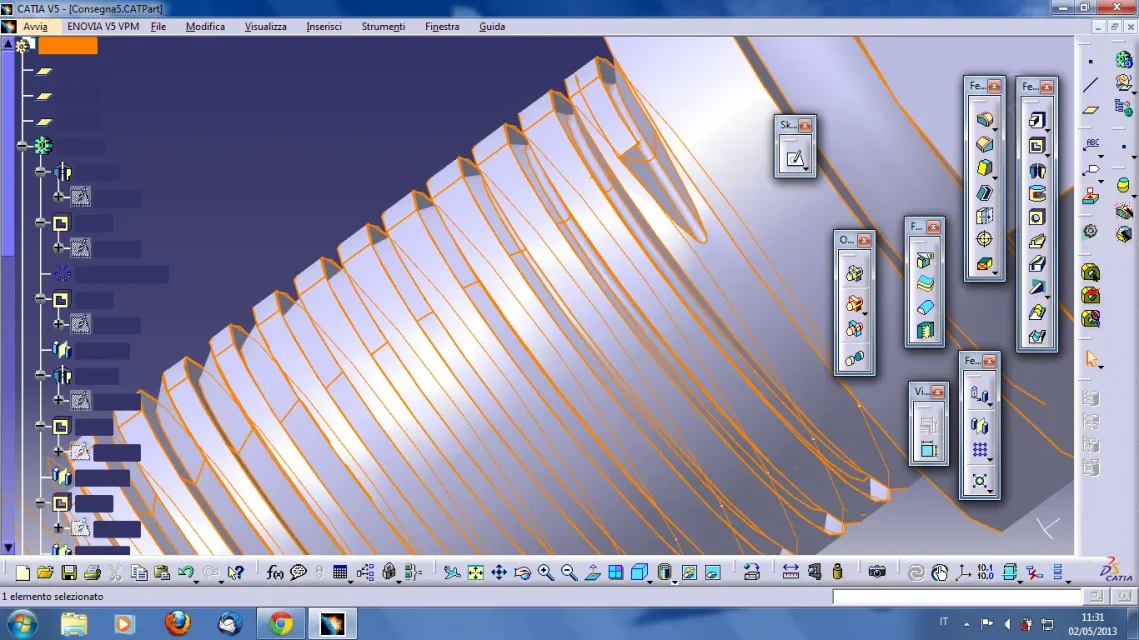

Hello everyone, I'm struggling with one of my first modeling in part environment and I wanted to ask you a question. I press that I have used the search function but I have not found answer to my problem. I am modeling an ignition candle as one rigid body and I was trying to make a m14*1,25 aesthetic thread. Designed the propeller with its step and designed the simple triangular profile bound, I finally used the feature groove. It presents itself with sweep error, loft or connection... and the excavation that does not resemble a true thread at all. I tried various profiles and the only one that doesn't bother me is circumference but I would like to use the triangle to stick to the real. I await your answer or suggestion, thank you all.



[falonef]

verify that thread pitch and groove width are right. I have the impression that the profile going up intersects the already existing groove and therefore goes into conflict



[N5L]

First of all thanks for the answer, the passage of the propeller is 1.25 mm as the base of the triangle-profile, do I have to vary these dimensions? I've been sticking to the iso profile, wait for your advice, thank you again



[N5L]

for completeness I carry the complete error: " sweep operator, loft or connection operator:
The face has a small edge.
errors may occur in the following operations.
- clean up the input data
- verify mating data (loft, connection)"



[mrwolverine]

If I didn't understand you want to do something like this:View attachment vite.zip



[N5L]

If I didn't understand you want to do something like this:View attachment 33162

thanks for the availability, I opened the file and it's just what I want. I have seen that the passage of the propeller is 1.5, but I do it from 1.25, obviously wrong. Now I see all the procedure you've done and I'll let you know, thanks again.



[mrwolverine]

the correct step is 1,25 but it is wrapped with the tangences.
try to put the base of the triangle not coincident with the propeller.



[N5L]

Hi, I'm studying your part, I have some things to ask you: is it necessary to define the sweep surface? What's that for? I have not yet solved because I always keep giving the same error by changing the size of the profile and the step. you would explain the iter to do it correctly, from the file I can't understand it, thanks again.



[N5L]

mrwolverine, I found the error, in the setting of the groove I left the default setting "keep the corner" instead of setting the right direction of "extrusion".



[mrwolverine]

Sorry, I didn't tell you!
It's all right.
Next!
