animation folding sheet

[RomyA]

good evening to all, I just started using inventor, so I apologize if it is a trivial question or maybe already requested, but I did not find it. my question is, is there a function to create the 3d animation of the bending of a sheet? I explain better, I design a cassette in sheet format, I create the various flanges, I create the annotation of the fold order and until we are there. but is there a chance to see a movie where my flat sheet bends?



[Matteo Cappelli dis.CAD]

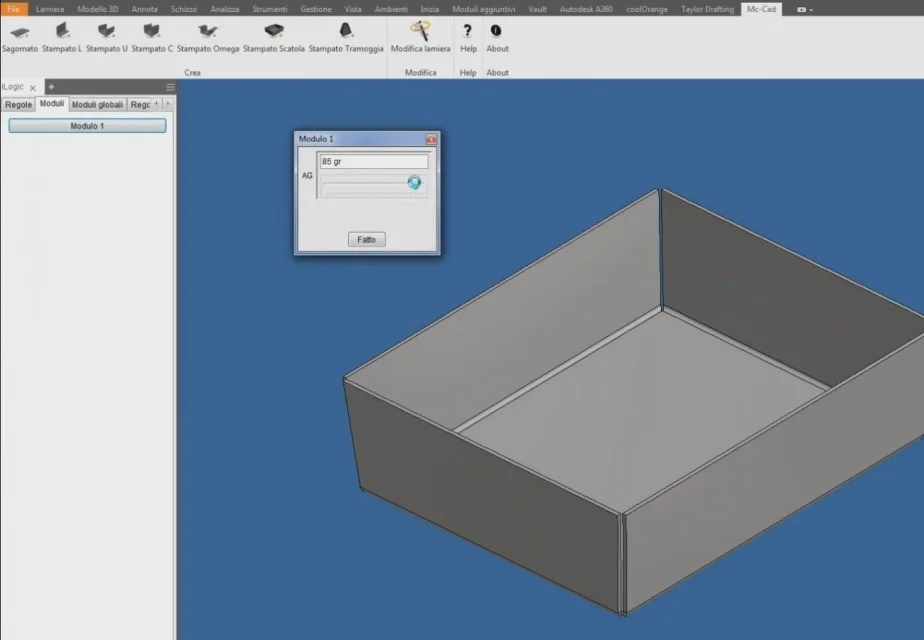

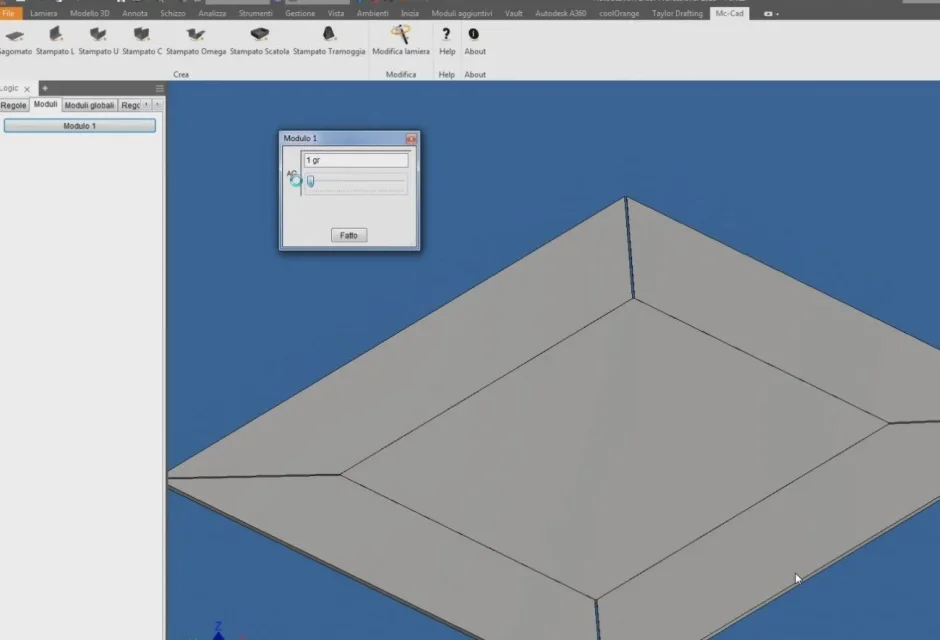

the only solution is to use ilogic and animate the fold angle/s
see photo and sheet 3d with mudulo iogic attachments



[RomyA]

Good morning, and thank you very much for the tip. I will now document this function. a domandina only, to start the animation of the file that sent me, how do I?



[Matteo Cappelli dis.CAD]

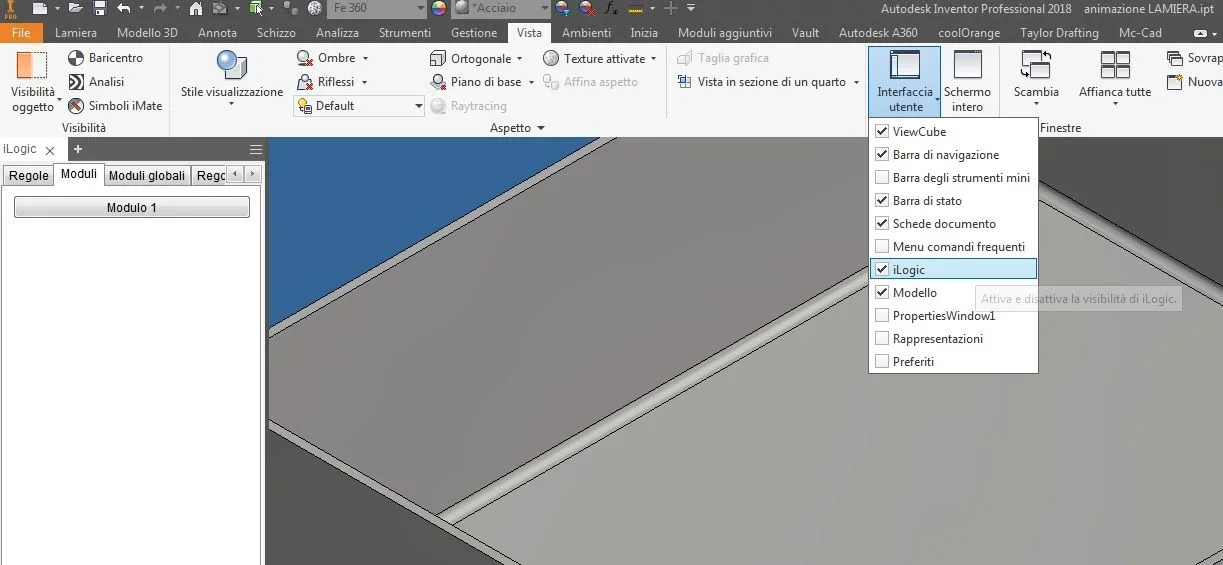

you have to activate the ilogic browser
drop-down menu view- user-ilogic interface

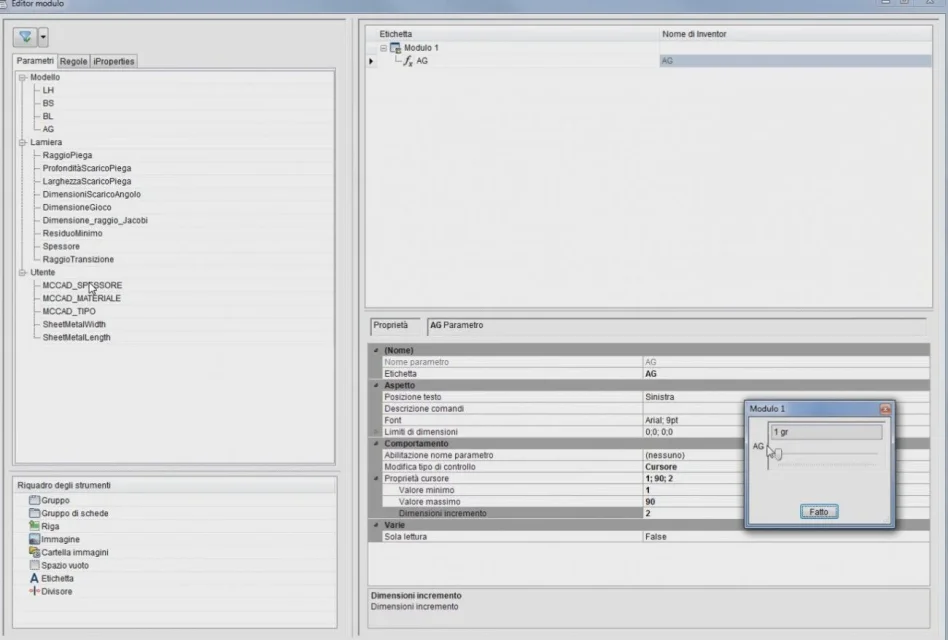

and then you will find in the tab forms the key



[RomyA]

perfect, I'm here. I just have to do it manually. Doesn't make me export a video until it folds?



[Matteo Cappelli dis.CAD]

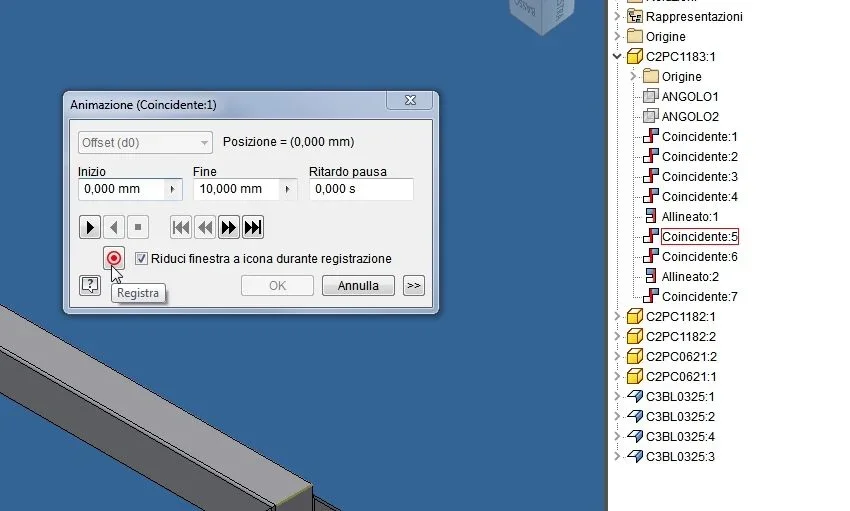

no, the recorder only works by animating the bonds togetherwhat you can do is use a screen recorder
