blocks in drawings

[drake]

Hi guys, in the table I realized that often using blocks that contain simple notes with only text, at the time of the change of the block to change the notes, it seems that everything works but at the rescue of the block x magic recompete the old note! If I return to the change of the block I see the note as modified and if I go back the old one. He doesn't always, but often he does. so every time I am forced to remove the note from the inside of the block, to instruct it and then reinsert it inside. did you also find this characteristic "pittoresca" and in case you know how to remedy it?
Thank you.



[drake]

I'm sorry. No one finds the problem?



[MAX71324]

I'm sorry. No one finds the problem?

I have the same problems as having to explode the paper block and revision of the boards...I can not understand why inside the block the size of the characters and the texts inserted reading the custom properties of the part do not collimate and if I explode the block everything is settled...I hope so someone helps us. .



[drake]

Since you have reopened the old discussion I tell you that the problem of the size of the text does not match it, but the problem I had highlighted sometimes yes. I solve it by removing the note from the block and reinserting it later.
insert the sw version you use in the profile.



[drake]

I add x clarification that the problem I had reported found it with 2016 and I don't know if with the 2017 version it looks equally, since I updated sw recently and I didn't have a chance to verify it.



[MAX71324]

I recently used sw2017 I had to make the edges, the cards and the tabelline with various words to insert in the drawings; I've had a lot of trouble with the blocks so much that they can explode. to me it happens that if I make for example a block for a cartilage at first it's all right then at the time when I reinsercate it I see changing the font size or reverse the location of the customized properties connected to the part, to the axieme or to the design itself. the incomprehensible thing is that in front of these seemingly insurmountable problems if I explode the block everything settles... Perhaps I mistake some procedure is not possible to explode the blocks then to move them inside the design the thing gets complicated.. .



[MassiVonWeizen]

I have the same problems as I have to explode the cart block. . .

sure to proceed properly?
Cartridge should not be a block, but an insert as sheet format. I'll send you back to this debatebut you can find many more



[drake]

I recently used sw2017 I had to make the edges, the cards and the tabelline with various words to insert in the drawings; I've had a lot of trouble with the blocks so much that they can explode. to me it happens that if I make for example a block for a cartilage at first it's all right then at the time when I reinsercate it I see changing the font size or reverse the location of the customized properties connected to the part, to the axieme or to the design itself. the incomprehensible thing is that in front of these seemingly insurmountable problems if I explode the block everything settles... maybe I mistake some procedure is not possible to explode the blocks then to move them inside the design the thing gets complicated.. .

I do not respond to any changes in writing or changes in font size as indicated by you. Let us see pictures x understand the problem.



[drake]

sure to proceed properly?
Cartridge should not be a block, but an insert as sheet format. I'll send you back to this debatebut you can find many more

I personally created my cartilage as a block in the format and I do not use the proper procedure of sw. in the end it works well equally, except for that antipathic thing of the change of the content of the notes...



[MAX71324]

I do not respond to any changes in writing or changes in font size as indicated by you. Let us see pictures x understand the problem.

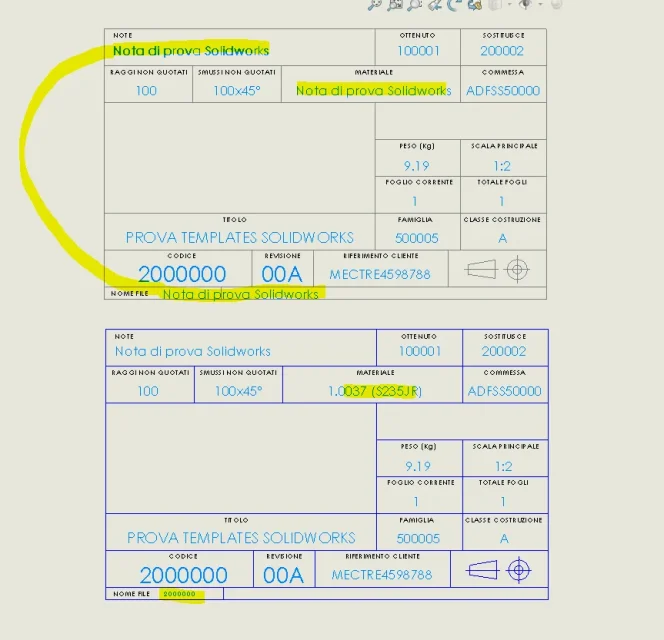

in the image at the top of the block with the customized properties inserted and at the bottom the same block exploded.



[drake]

Does it seem to me that the notes you see above are those before the insertion of the custom property or is it wrong?
in that case you see different characters, but just the drawing reads the properties of a file I have everything corrected. the block reads the custom properties once inserted the model that contains them and possibly regenerating the design.
Doesn't that happen to you?



[MAX71324]

I have not changed the properties, at the top there is the block below the same exploded block and as you see at the moment when I explode it is like reading a different property...



[drake]

I get it! I don't know why it does that, though I suggest you remove notes with properties from the block. Create a sheet format with the cartiglio made ad hoc, with the lines and notes that you insert manually inside the block and the notes that read the custom properties outside the block. However you always get the correct result as you wish. at the bottom if you think it is not correct to enter into a block of data that can change "dynamically". when you explode the block he manages to update the notes by reading the properties, while remaining inside the block freeze freezes them to a "different moment". I'm doing this, and I'm not having a problem.



[MAX71324]

ok regarding the cartilages I can explode them and leave them in the sheet space, I also have problems with labels for welding or for workflows the most classic is the "preliminary", also these texts have problems while not being associated with ownership of the part or the assieme.



[drake]

ok regarding the cartilages I can explode them and leave them in the sheet space, I also have problems with labels for welding or for workflows the most classic is the "preliminary", also these texts have problems while not being associated with ownership of the part or the assieme.

if you don't have to dynamically update notes what kind of problems do you encounter?
always post images that make you understand better, of course if you can.. .



[MAX71324]

you are right if there are no texts connected to file ownership there are no problems of changing the texts themselves but I noticed that solidworks also changes the size of the text if I explode the block, then sometimes there are notes to be inserted in the drawings where the values are compiled from time to time, typical label/bloc: "cilindro alesaggio --- stelo ø ---- run ----"... there must be the way to insert blocks in which then to compile values...I come from inventor and you could do quietly, the blocks (they were actually called symbols) did not change size or value at the time when I saved them and used them. I'm definitely wrong. .



[drake]

I don't really understand your need. make us a typical example, so let's see how you should operate. . .



[MAX71324]

I'm sure I mistake something but as for the blocking of the cartilians also for example in the label "preliminating" the block is different from the exploded entities; Attached the image with top block and bottom the same block exploded. . .



[drake]

This is really weird, I don't know how it can happen. Ask for assistance.
