lakiway
Guest
hi guys, I have to draw a 3d model of a reel consists of 3 columns, each formed by 5 coils. I have to develop a 3d model and I can't. thanks in advance for every help.
volaff
Guest
Nice presentation!
cmq apart from the jokes I suggest you present yourself in the appropriate section and post the problem in the "ad hoc" section!
cmq apart from the jokes I suggest you present yourself in the appropriate section and post the problem in the "ad hoc" section!
lakiway
Guest
carro volaff, a coil is an electric machine that needs a support, since, once run by electric current exercises a magnetic field not indifferent. to ensure the stability of the field lines the coil must be bound to a mechanical support adequately dimensioned. why I asked the question in the section "for mechanical designers". the model to be realized is in 3d, second reason why I chose this section. thanks to autocad, perhaps you do not know, from a 3d model you can develop a system in which you see the agents forces, system that the software solves and allows to trace the standard mechanical diagrams. I spent 1 minute responding to your answer, useless and without foundation, which simply denotes your "not knowing". next time you save sarcasm. If you are a senior user and provide these answers, perhaps you should change forums. Have a good day!
MassiVonWeizen
Guest
In addition to puzzling, a little fun takes us to stimulate the day, be also positive.
lakiway, I assume you don't want the 3d fact, you should explain what doesn't succeed, how you approach modeling, maybe attach the drawing, because you will realize that put so
I don't know anything about 3d modeling with autocad, so I can't help you, but it also tries in the future to be more detailed in the questions than in the solutions you will bring.
lakiway, I assume you don't want the 3d fact, you should explain what doesn't succeed, how you approach modeling, maybe attach the drawing, because you will realize that put so
your problem does not know what it is and how to help you.
I don't know anything about 3d modeling with autocad, so I can't help you, but it also tries in the future to be more detailed in the questions than in the solutions you will bring.
volaff
Guest
Then let's calm our souls!
Step 1: When you sign up on a forum you would like the presentation. I reminded you, but you pretended nothing.
point 2: in my first comment I wrote "cmq apart from jokes........ "

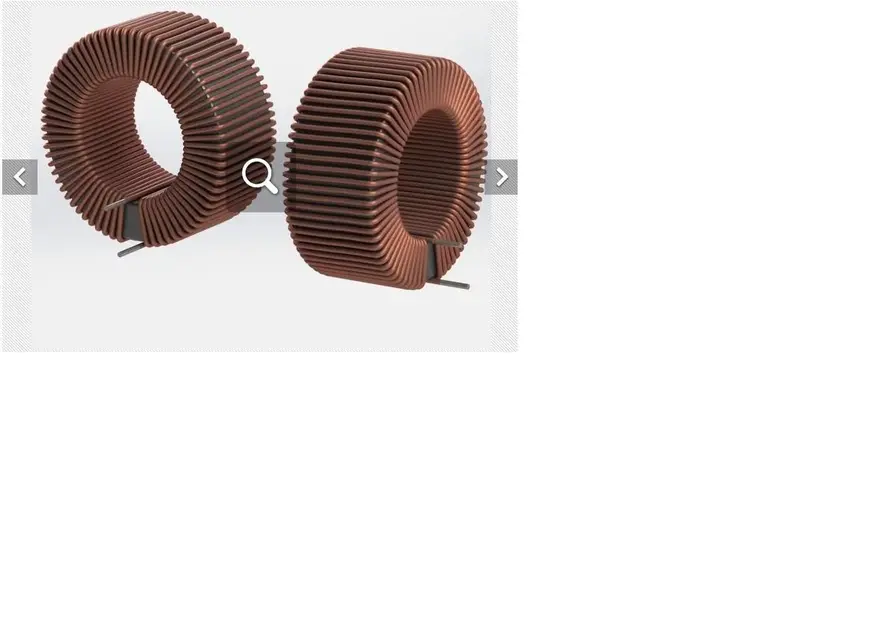

point 3: but a coil is a set of coils made with conductor material (see attached image).
point 4: just for the record learns education and you will find all the help of the case!
without education I see her hard for you!
greetings
Step 1: When you sign up on a forum you would like the presentation. I reminded you, but you pretended nothing.
point 2: in my first comment I wrote "cmq apart from jokes........ "
point 3: but a coil is a set of coils made with conductor material (see attached image).
point 4: just for the record learns education and you will find all the help of the case!
without education I see her hard for you!
greetings
