calculation perimeter in the sketch. . .

[PiegatoreSolidworks]

Hi guys I wanted to know if it's possible to have a quota where the exact perimeter of lines and strings takes me back inside a sketch.
thanks for the answers.



[marcof]

Hi guys I wanted to know if it's possible to have a quota where the exact perimeter of lines and strings takes me back inside a sketch.
thanks for the answers.

I would have served this function a little bit off ago. I had made up like this:
-I quoted every single element of the "poliline"
- I then created in the same sketch a line of construction and I quoted it
- I made an equation that commanded the share of the construction line as sum of the quotas of the various elements of the polyline.

when instead I wanted one of the elements of the polylinea to be dependent on the total length I left it with the guided quota and I modified the equation so that the length of the construction line was a variable that I could change, along with that of the individual elements of the polylinea.

I don't know if I'm "chapter."
It is easier to do than to explain and even if it works is a paciugo medium. a dedicated function would be very comfortable.
Maybe they've implemented something that has escaped me... :redface:



[PiegatoreSolidworks]

I would have served this function a little bit off ago. I had made up like this:
-I quoted every single element of the "poliline"
- I then created in the same sketch a line of construction and I quoted it
- I made an equation that commanded the share of the construction line as sum of the quotas of the various elements of the polyline.

when instead I wanted one of the elements of the polylinea to be dependent on the total length I left it with the guided quota and I modified the equation so that the length of the construction line was a variable that I could change, along with that of the individual elements of the polylinea.

I don't know if I'm "chapter."
It is easier to do than to explain and even if it works is a paciugo medium. a dedicated function would be very comfortable.
Maybe they've implemented something that has escaped me... :redface:

I had also solved by adding the individual elements (segments and circle arches) through equation. I really needed the perimeter for that.. .
sooner or later they will also implement this function on "scratch".

Hello and thank you, Marco.



[SolidUser]

Hi guys I wanted to know if it's possible to have a quota where the exact perimeter of lines and strings takes me back inside a sketch.
thanks for the answers.

sensor with saved measurement.



[PiegatoreSolidworks]

sensor with saved measurement.

Forgive my ignorance, could you articulate a little better your answer with an example? also the resulting quota can I use it on an equation?

Thank you, Marco.



[re_solidworks]

Forgive my ignorance, could you articulate a little better your answer with an example? also the resulting quota can I use it on an equation?

Thank you, Marco.

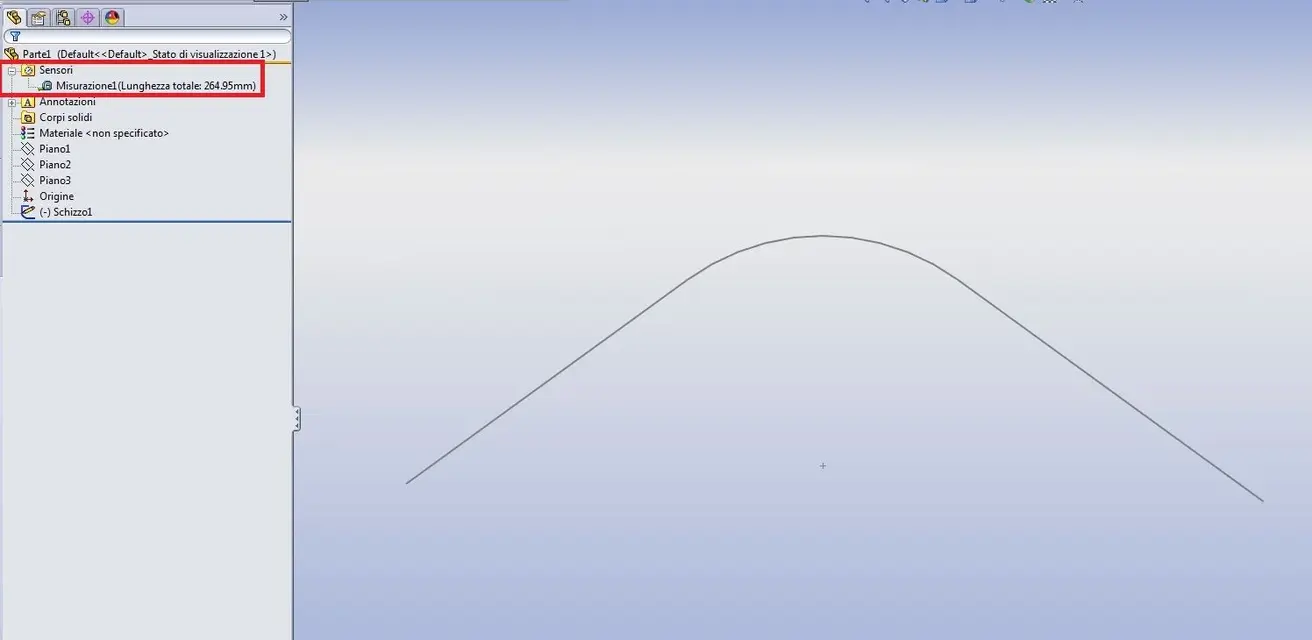

go to the rating tab and take sensor. read the proprety manager, it is very simple, make sure and save the selection of items. the result is that in the image.



[PiegatoreSolidworks]

go to the rating tab and take sensor. read the proprety manager, it is very simple, make sure and save the selection of items. the result is that in the image.

Yes thank you, King, I had tried last night and I had succeeded, but it is a measurement "reminder" that is unusable by equation, or is it wrong? I had solved yesterday morning with a somatir of the various segments and bows.. .
