I'm studying lifting an arm through a cam.
in 180° I have to perform a lift of 115mm.
the values of y, r0, rr e la I'm more than clear.

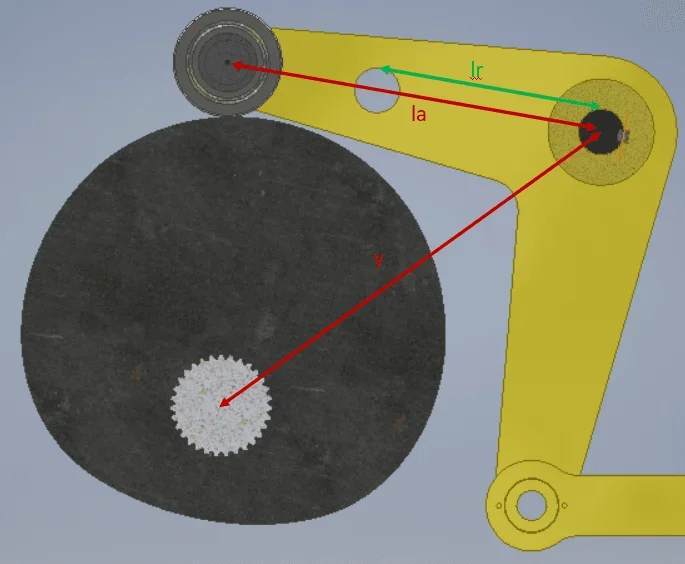

as regards lr I have some difficulty defining it. in my case, in fact, it is not opposite to labut on the same side:
In fact, I am engulfing myself in this undertaking because I cannot make a spline readable by the transitory bond in the assieme: the profile, in fact, has already passed my colleague engineer, but I can not import the spline of autocad on the sketch of inventor, keeping it as a united element so that you can extrude and use it to display the correct movement in the iam file.
Thank you in advance for your attention and for any help!
