cinematisms with catia v5r21

[16_alex_85]

Everyone moves and moves as I want. because it moves is not clear to me, perhaps and I say perhaps the whole thing was in the fact that I used cylindrical joints that allow also the translation and I nn binding such translation. Perhaps if use screw joints should be easier, but for the moment it is okay so. I have noticed however that these joints are great if you want to make a simulation of the assembly process because they allow to simulate the screwing and unscrewing of the pins, but I wanted to do this:biggrin:. But there are many commands (9) to me I only need one, but cmq better too many than a few :smile:. I'd like to send you the simulation, but I know how to do it, that is how I can save it in order to show it, because it's because of you that I've come to a point at least. and then how do you change the design in pdf? Is it possible? with solidworks I think you can do it.
Thank you again I would like to ask you more questions, but I think I've bothered you enough, if you're in the neighborhood of napoli, a coffee is due to you.
p.s. it is so nice to see him move that now I turn it off, he threw my blood.



[Roxkill]

Everyone moves and moves as I want. because it moves is not clear to me, perhaps and I say perhaps the whole thing was in the fact that I used cylindrical joints that allow also the translation and I nn binding such translation. Perhaps if use screw joints should be easier, but for the moment it is okay so. I have noticed however that these joints are great if you want to make a simulation of the assembly process because they allow to simulate the screwing and unscrewing of the pins, but I wanted to do this:biggrin:. But there are many commands (9) to me I only need one, but cmq better too many than a few :smile:. I'd like to send you the simulation, but I know how to do it, that is how I can save it in order to show it, because it's because of you that I've come to a point at least. and then how do you change the design in pdf? Is it possible? with solidworks I think you can do it.
Thank you again I would like to ask you more questions, but I think I've bothered you enough, if you're in the neighborhood of napoli, a coffee is due to you.
p.s. it is so nice to see him move that now I turn it off, he threw my blood.

I know, it happened to me the same time!

If you're interested, or maybe you'll be able to pass the news to a friend, search through the forums:
catia v5 course for graduates. . .
Maybe I can help someone in the beginning, just to give a setting, before messing up and then looking for solutions.
I'll say hi.


ps1:
Are you a student of what?

ps2:
I would now complain about the fem!!!:finger:



[16_alex_85]

study ing. mechanical.
Surely I will pass word, but I still wanted to ask you, before going to fem analysis, how do you make the graphs of acceleration and movement and speed of an element? This is really the last thing I swear I'll leave you alone.



[Roxkill]

study ing. mechanical.
Surely I will pass word, but I still wanted to ask you, before going to fem analysis, how do you make the graphs of acceleration and movement and speed of an element? This is really the last thing I swear I'll leave you alone.

Hi.
propose the question more correctly, in a new discussion, so that others may answer you too or maybe who would, after you, who needs it, when he will do a research will find the topic desired.
I expect you to publish it.
Bye.



[Nio04]

Good morning to you of the forum,

I'm a new user, and I'm an inventor... I love you. .
I would like to simulate with catechisms, 2 opposing forces and equal to the hymn of a closed site, but with a fixed bond in one of the 2 directions, the purpose is to see if there is movement.
I would be able to say how to do this software that looks very good... ?

thanks for the courtesans answers
cordial greetings
:



[Vittorio]

Good morning to you of the forum,

I'm a new user, and I'm an inventor... I love you. .
I would like to simulate with catechisms, 2 opposing forces and equal to the hymn of a closed site, but with a fixed bond in one of the 2 directions, the purpose is to see if there is movement.
I would be able to say how to do this software that looks very good... ?

thanks for the courtesans answers
cordial greetings
:

on youtube there are several demos



[scalareale]

hi try sending an image of what you want to achieve, because if I understood for the verification that you need it does not need the cinematographic package but just bind with the catprodut and agging a parameter.



[Nio04]

Good morning to you all, climbing,

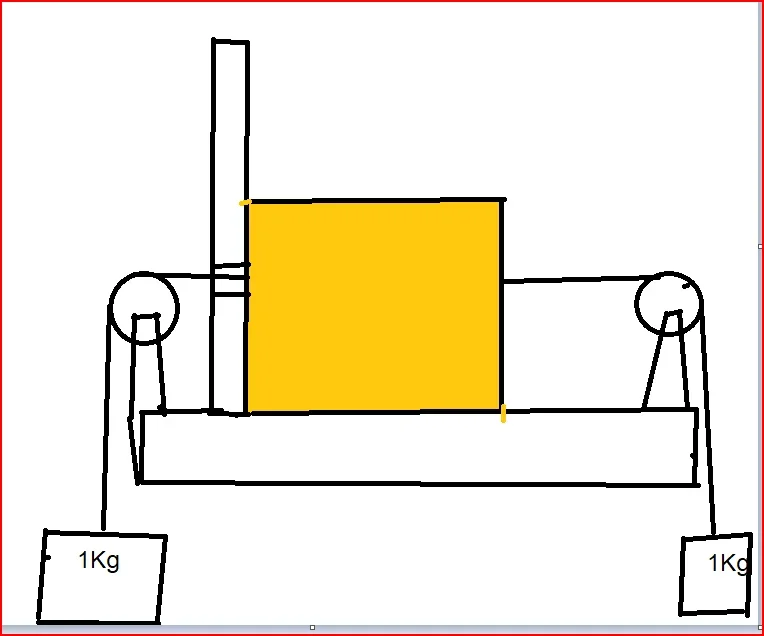

then as required in the attachment there is the explanatory image.
so if you can help me with the resolution I thank you in advance. . .
the question therefore is.. the f2 force will move the parallepiped to the right...
I think so, since the f1 force is discharged into the wall...
According to the "newton pendulum", kinetic energy moves into the mass, so I think f2 will be free to move the parallelepiped to the right. . .
but a simulation must give its answer.. .

hello and thank you all
Nio04?



[scalareale]

hello but look that in the package of catechism you cannot apply the forces that I know



[Vittorio]

You need the fem license... but I have doubts that resolve your question



[Vittorio]

You can always check the theory.. with a simple wooden model ahahah
