construction hole per centine

[panormus]

Hey, guys.

I hope someone can help me, lately I feel like writing blank..:frown: Blessed are you who are in holiday:

1) I should make a series of solids, exactly of the wooden alar inches, crossed by longherons.

I should do something like that.
|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
|----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

limiting me to create the entire centines and to obtain the perforated centines automatically from the intersection with the longherons.
made the intersections and generated the holes should cut the centin to cnc with its hole.
question: Should I use Boolean operations?
if I had to create this drilling by intersecting 2 products (an auction and a complex product/solid) how should I do?

2) the very prepared ferretium kindly sent me a catpart with the wing profile of the centin realized as geometryfromexcel plus a profile scaled from two profiles (extended and intradox joined to the ends from one point) following a set of points supplied to him, but that I failed to work to generate a solid.

I am at this point: https://docs.google.com/leaf?id=0b-4nj7fcicwmzte2mjiyngitnzdlnc00zjmxltk0yzitnjg5mjm4ndzlywnk&hl=itbasically I can't handle the scaled profile (generated by two profiles, as I said) as it was a sketch to use to generate a prism (to a thickness). Maybe it's not a detail that the body's gear is gray.

Can you help me?

greetings



[marcofa]

I would have a method, but it's more complicated to explain that.
If you can assemble in the right position the crude centines and longherons, in a second time you can get the housings of the longherons directly from the axieme creating pockets in the centines referred to the longherons (external references) placing them with constraints to the longherons.
There will also be the advantage that, in the case of displacement of the longherons, automatically the housings in the pennies will move accordingly.
If you put it with the parts you can see it in practice.
Mar



[panormus]

I would have a method, but it's more complicated to explain that.
If you can assemble in the right position the crude centines and longherons, in a second time you can get the housings of the longherons directly from the axieme creating pockets in the centines referred to the longherons (external references) placing them with constraints to the longherons.
There will also be the advantage that, in the case of displacement of the longherons, automatically the housings in the pennies will move accordingly.
If you put it with the parts you can see it in practice.
Mar

I mean you're telling me that if
I create my pocket
momentarily moved the solid
Is the pocket edges in contact with those of the solid made?



[panormus]

Marcofa, I haven't tried yet, but I'll let you know.

I wanted to ask you why I can't fix an element (rib) in space?

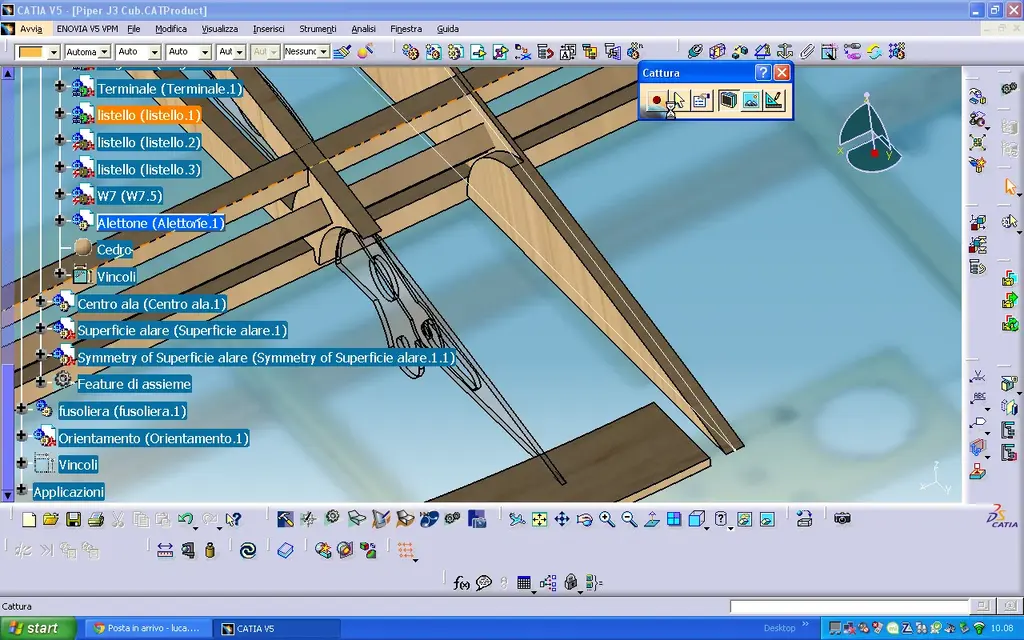

I created a thick surface from a sketch belonging to other product, then I applied a pocket and then I wanted to move it, but if I am living with the classic yellow and black spiral it brings me the rib back to the initial position.

I have verified the presence of other previous constraints but I do not see it.
other thing. the pocket is realized partially, in the sense that if I apply a thickness of one mm more, I also disappear the piece that I need.
