couple profile with structural element

[roccolaser]

hi to all I wanted to couple two 45° profiles made with the structural elements having different inclinations.. I make you understand better with the annex....



[Mike1967]

hi to all I wanted to couple two 45° profiles made with the structural elements having different inclinations.. I make you understand better with the annex....

imagine you have the profiles in your hand and try to cut them to make them mate...

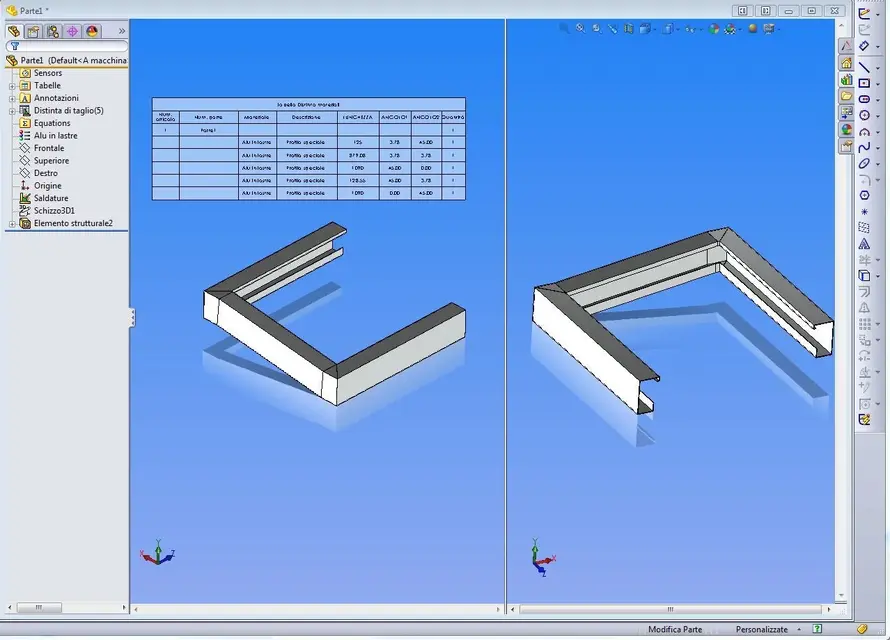

the correct system according to me is as from image.
best wishes for any changes in your file...:biggrin:



[roccolaser]

You're always very kind and smart, definitely to do what you did, I'd take maybe 3 days instead you did it in ten minutes... .



[Mike1967]

You're always very kind and smart, definitely to do what you did, I'd take maybe 3 days instead you did it in ten minutes... .

Surely you have already solved but you place the file the same.

Hi.

download



[simone03031986]

How did you do to view the spreadsheet?



[Mike1967]

How did you do to view the spreadsheet?

for precision is a distinct cut.
you can insert it from the drop-down menu inserable materials.
make sure to click on the ts dx on the tree under the "cutting list" and select "upstream" (the icon will change and assume the appearance of a table with a welding symbol).

:smile:



[simone03031986]

Thanks, you're really great.. .
