creation multiple lembi (se2022)

[biz]

Good morning.
if I use the command "multiple edges", when these intersect should not be cut out if they select "cutting"? allego file



[Be_on_edge]

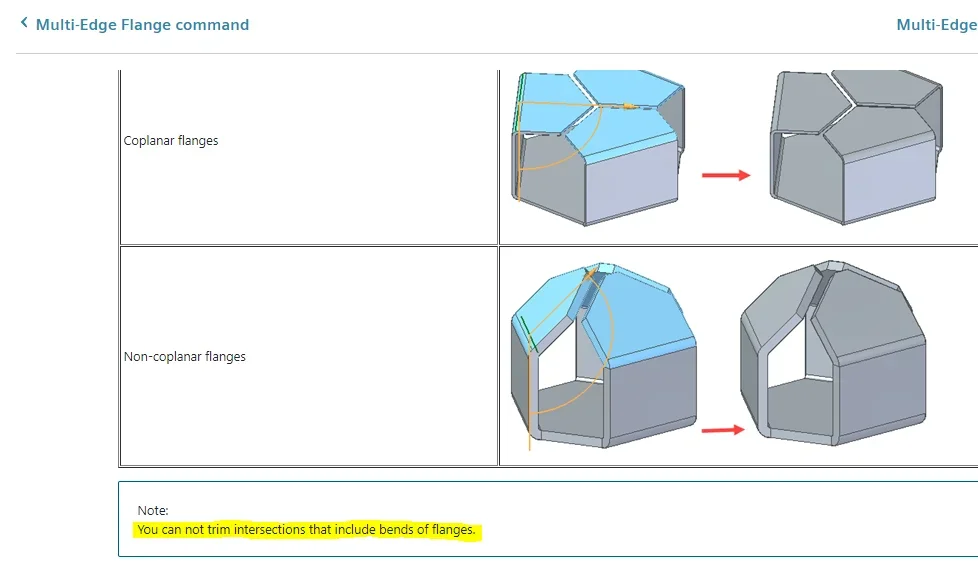

hi, the cut does not work because the folds overlap.

changing the angle the cut takes place correctly.



[biz]

Now I'm not in front of the cad but, if you want to make a box like the one in the annex, I guess the connection is to not make the edges of the first series of "multiple edges" coincide? I don't know



[Be_on_edge]

Now I'm not in front of the cad but, if you want to make a box like the one in the annex, I guess the connection is to not make the edges of the first series of "multiple edges" coincide? I don't know

it is enough not to close the edges using the creation option of the lembi with fold that starts from the edge or by activating the cut of the edges.

if it was necessary you can then use the command close two fold corner



[biz]

if it was necessary you can then use the command close two fold corner

does not close with such command. It gives me "unsuccessful operation"



[MassiVonWeizen]

hello, today, being proposed the same dynamic, with a colleague we found the solution.
you have to use the multiple flap function, then in the options select "multiple flap" + "bord"; at this point select the remaining edges and create the correct box
