customization local labels

[net]

Good afternoon,
after several researches and attempts I couldn't find a solution to customize local labels.
the label should be set in this way: local name (non him avuto problemi)Number inside a circle instead of a rectanglearea of the room inserted in a rectangle with colored filling also the windows, value that I can also insert manually
when I'm in change-text label I can't add any line or circle because I notice "no one of the created elements is visible in the view..." and I can't understand how to solve it because in visibility graphics The label is active.
thanks in advance



[Tristan]

Are you from an existing label or an ex-novo family?



[net]

from an existing one, precisely from "local label with area".
Should I create an ex-novo family? even for a circle and a colorful rectangle I have to "go round wide"?



[Tristan]

I don't know. I should see the family in question. so a priori I cannot tell you



[net]

I finally surrendered and created a new family, thanks to the same:smile:



[Alfredo Medina]

I finally surrendered and created a new family, thanks to the same:smile:

However, just starting a new family doesn't answer your questions, does it?

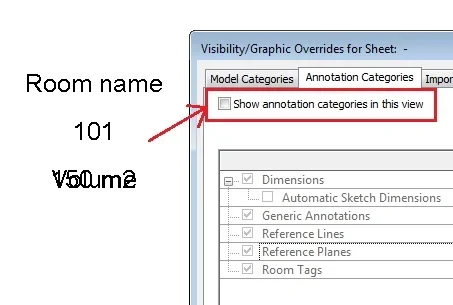

• the cause of error is that annotations are hidden.

• to manually place the windowed surface area, you need to add a shared parameter to the local label family.



[Tristan]

to manually place the windowed surface area, you need to add a shared parameter to the local label family.

with 2017 formulas can also be used in :wink labels:



[net]

• the cause of error is that annotations are hidden.

thank you so much!!!in this way I would have managed to change it without need of a new family! next time I will do this:biggrin::biggrin::biggrin:



[Alfredo Medina]

with 2017 formulas can also be used in :wink labels:

Yes, this I heard in some autodesk presentation about new things. I haven't used the 2017 version yet. This is good news. Thank you!
