design a dispay lcd

[crisrn]

Hello everyone!! !
I have to design a lcd for a dash. the problem I met is the relative to the "writing" on the dipslay. I mean...how can I do to get a redult similar to that attached?

thanks in advance... .



[eboss]

Well if you have photos at your disposal front view of the screen and you only have to get a graphic result, could you use a decal? ! ?



[crisrn]

Hi.
I don't have any photos, the one I've attached was an example to show what I have to do. The lcd I have to draw is custom, so I have to design it with its writings.
the difficulty arises in fact from the writings... is there a way with solidworks to realize writings so that the ecd is pleasant to the customer?
I am sorry, but I have never done solidworks courses and unfortunately I have little time to try alone to solve the problems that I encounter...so if the question appears trivial....



[Tequila]

Hi.
I don't have any photos, the one I've attached was an example to show what I have to do. The lcd I have to draw is custom, so I have to design it with its writings.
the difficulty arises in fact from the writings... is there a way with solidworks to realize writings so that the ecd is pleasant to the customer?
I am sorry, but I have never done solidworks courses and unfortunately I have little time to try alone to solve the problems that I encounter...so if the question appears trivial....

I use if but in this case it doesn't matter... by problem similar to yours, not having images to be applied to serigraphs, I created the writings as a deep excavation feature 0.1 mm so that I can apply a color. the result is good and if you make a make even better. You should easily find the font that allows you to write as the character placed in the image.
Hi.



[crisrn]

thank you tequila,
It is the same "technical" that I used until now...I knew there was a simpler way and with an aesthetically better result. ...

thanks again for the support....



[Tequila]

thank you tequila,
It is the same "technical" that I used until now...I knew there was a simpler way and with an aesthetically better result. ...

thanks again for the support....

You could try to use some little program to manipulate images.
if you have the 2d of the screen of the display you carry it in wrmf (metafile) or bmp (by autocad you can) and then with paint or something more professional you modify and then use it in 3d.



[Ivan1990]

thank you tequila,
It is the same "technical" that I used until now...I knew there was a simpler way and with an aesthetically better result. ...

thanks again for the support....

the roads you can take are mainly two, or find an image to apply as a decal, or as tequila says you find the fronts, but instead of making a cut of 0.1 mm I would use the command line of division that only divides the surface, then if you want an aesthetically better result you should make the screen in transparent glass and put and written under the glass.



[crisrn]

Well, this would be a great solution, but I'm afraid that my skills are still too small to get so much... but thank you for the excellent point



[Ivan1990]

Well, this would be a great solution, but I'm afraid that my skills are still too small to get so much... but thank you for the excellent point

It is not that it is very complicated, in 5 min I did such a thing as a result



[Mike1967]

... if you also use the appropriate characters... :smile:
http://www.dafont.com/theme.php?cat=302



[Ivan1990]

... if you also use the appropriate characters... :smile:
http://www.dafont.com/theme.php?cat=302

already :biggrin::finger:, I had no time to look for them:biggrin:



[Mike1967]

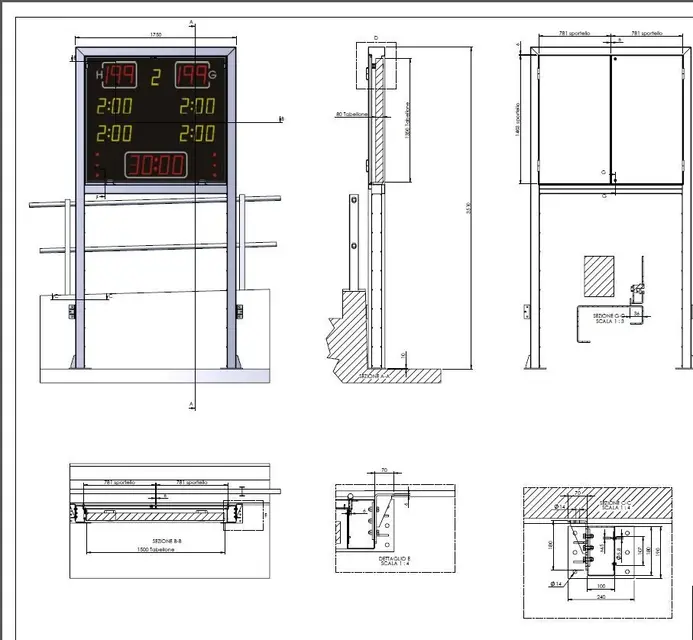

I didn't remember anymore, years ago I did this....



[Ivan1990]

I didn't remember anymore, years ago I did this....

fig :finger: I hate / do these kinds of works that rarely happen:biggrin::finger:



[Mike1967]

... to me often happens, especially if to decide the execution of the work is a woman... :biggrin:



[Ivan1990]

... to me often happens, especially if to decide the execution of the work is a woman... :biggrin:

the ruin of men, women... But at least have you been rewarded for this madness? :biggrin:



[eboss]

if you download and add fonts to windows then you can also manage the writings as a sketch... so it is faster if you want to create configurations with different values (10.000 , 2500 )...
