design control on autocad

[PierArg]

I told her to prof.. and she said to me that I am in sight

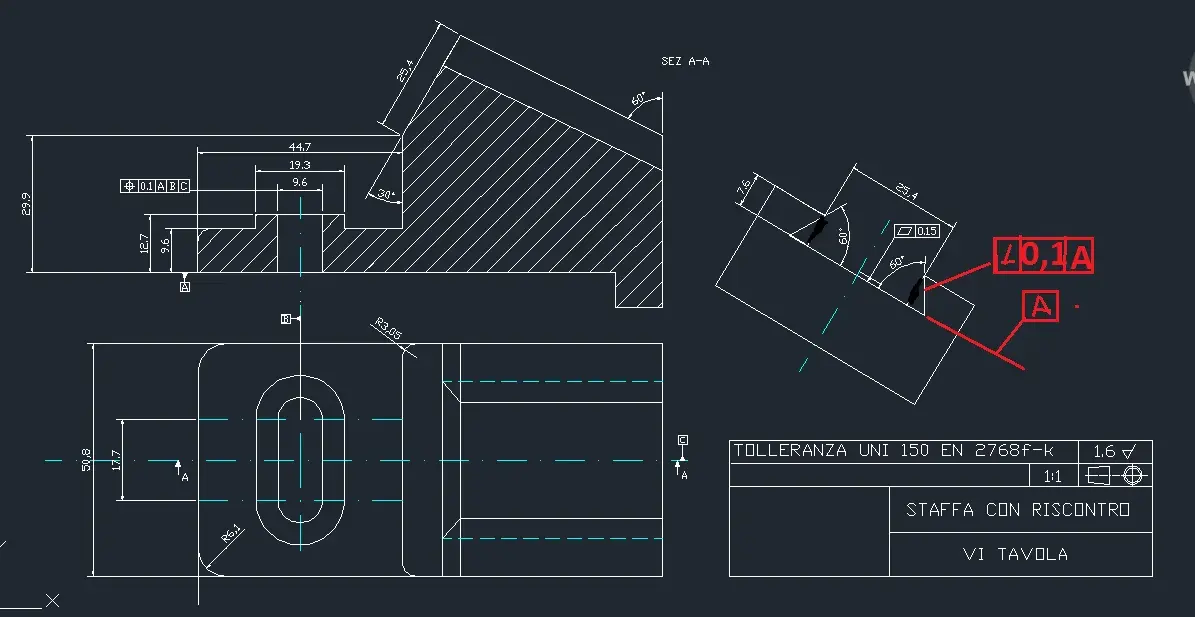

for the toll. of inclination is well done so?:

Yes, tolerance is fine

for the lines look as I did: I erased them completely. I'm not here.



[ornitorinco91]

pier arg, even in my opinion, but many people say they're in sight, including... I'm going to put them... If he says that they don't work well,



[PierArg]

however put the name of the auxiliary view and the arrow indicating the direction of the view (see attachment of mauri:66 on the first page)



[ornitorinco91]

the arrow I tell you with b
above the auxiliary view, instead, should I write : auxiliary view or b (like arrow)?



[PierArg]

the arrow I tell you with b
above the auxiliary view, instead, should I write : auxiliary view or b (like arrow)?

you can also write "Auxiliary view b"



[sampom]

you put corners that do not exist; Those lines are not that "they are in sight", they are not there.
missing odds.. also put the maximum dimensions "everything out", to understand the flight that measures will have the piece for the supply of the material. If they're redundant, you put them in brackets.
indicates that the longitudinal axis identifies the halfworks and the piece is "symmetrical", or you have to put the quotas on the axis.
use different colors for odds and sectional restraints.. In addition to confuse with the edges of the contours in the printing phase you will have problems in differentiating the line thicknesses.
more space the views and put the odds "more out" from the piece, so they are all attacked and the lines get fucked... I mean, it also cures the order.



[sampom]

you can also write "Auxiliary view b"

sì, anche..
:smile:



[bonvolo]

How do you create a new discussion in this forum?? ? !



[ornitorinco91]

to set the color change of quotas now one by one I have to do? or is there a command that changes all of them together? :



[sampom]

How do you create a new discussion in this forum?? ? !

on the first page/summary of each section there is a nice pulsary with written new discussion.. top left and bottom left.



[sampom]

to set the color change of quotas now one by one I have to do? or is there a command that changes all of them together? :

if you put the odds on a dedicated layer (as would be good rule) change the color to the layer. otherwise change the size of share change what you want. And then you're going updates and you can with window selection enclose all the design; quotas are recognised and updated.



[ornitorinco91]

I used layers... I went to styles of quota modification... I changed everything...
and I clicked current set... but nothing has changed



[sampom]

nn ho usato layer

and you've done so bad

... I went to change quote styles... I changed everything...
and I clicked current set... but nothing has changed

Have you read everything? you have to do updates.



[Mauri:66]

Hello ornitorinco91,
Sorry the question, with all due respect, before studying industrial engineering that school you've hurried. I ask you this because I think you continue to ask questions that are the basis of studies that you did to professionals studying as a meccacnic congener. and then if your professor continues to say that certain lines are seen despite we are not there, then I suggest you change institute at least that you cannot change prof.:biggrin:



[Mauri:66]

If you look well at my post in pdf see exactly what the visible lines are, besides what you call section b is not a section but a projected view.:frown::redface:



[ornitorinco91]

I went to the science school... that's why I find myself a little too flattened with this subject.



[Mauri:66]

quiet, however, stick to the correctness of the views of the pdf, if then the prof. does not agree, let me talk to you. :smile:

Good job



[PierArg]

quiet, however, stick to the correctness of the views of the pdf, if then the prof. does not agree, let me talk to you. :smile:

Good job

I want is a threat to prof!:tongue::biggrin:

apart from jokes, stick to the drawing of mauri (as I already told you in a previous post)



[Mauri:66]

I want is a threat to prof!:tongue::biggrin:

apart from jokes, stick to the drawing of mauri (as I already told you in a previous post)

no is not a threat ... I really want to know her closely, listen to her well and receive explanations ...:biggrin:



[PierArg]

no is not a threat ... I really want to know her closely, listen to her well and receive explanations ...:biggrin:

Do you understand ornitonism? :finger:

you are in a barrel of iron!:biggrin::tongue:
