design of a triple flange circle for battery

[Ian5150]

hello to everyone, can anyone give me some advice to draw this detail with inventor 2023? ? ?
I should draw the flange of the snare that presses the skin on which it is played.



[meccanicamg]

read the rules? No.
Did you show up? No.
Did you write in the right inventor section? No.



[Ian5150]

read the rules? No.
Did you show up? No.
Did you write in the right inventor section? No.

Hi, I'm so sorry, it's true, I'm very sorry I didn't introduce myself, I apologize to you that you have rightly reported it to me and to all of you who read.
My name is gorea, and for several years I design with inventor, both for my company and for personal passion.
and unfortunately I knew that it was probable that I wrote in the wrong section, the site is very vast and I did not have the certainty to write in the correct section, if then help me to address myself in the right section I would be grateful.
I still apologize for the experience



[Ian5150]

read the rules? No.
Did you show up? No.
Did you write in the right inventor section? No.

I forgot, I apologize for writing in the wrong section. I published in the stamping section, because the type of circles I should build usually are made from sheet metal stamping, I didn't notice that below, in the list of discussions there was also the inventor topic.
Excuse me again



[batleo]

I don't know if you get the desired result.



[Vittorio]

Do you have to make the 3d model only for representative use?



[Ian5150]

I don't know if you get the desired result.

hi, batleo, no I haven't tried with the punches yet, but I also had this idea, before I preferred to try with the surfaces, but without great results for now.
If you have any more ideas, come!
Thanks again
Hi.



[Ian5150]

Do you have to make the 3d model only for representative use?

Hello victorious,
At first, I can be satisfied with the representative use, as I need to assess well the encumbrances of the underlying stem and the housing of the rods.
But then the idea is to make one in sheet metal, and then I will have to go into detail.
If you have any more ideas, come.
Thanks again
Hi.



[Ian5150]

I attach a section of the circle, and a view from above to better understand
the sheet is thickness 2,3mm and has n°10 slots width 6.5mm
the more internal flange is 14" in diameter, that is 355.6mm



[Vittorio]

I struggle to understand (today with making everything is possible)
Is this the 3d model you did or is it the real piece?



[Ian5150]

I'm struggling to understand
Is this the 3d model you did or is it the real piece?

no this is the real piece, which is on the market.
I must reproduce the same, then make changes and realize a dedicated one.



[Ian5150]

no this is the real piece, which is on the market.
I must reproduce the same, then make changes and realize a dedicated one.

Unfortunately I have no idea for now how to reproduce it.
I'm still at the start, because I don't know how to perform the side folds continue to the light part where there are instead the sunbeds.



[Vittorio]

So... I don't use inventor, but I think modeling tools are the same in most software.

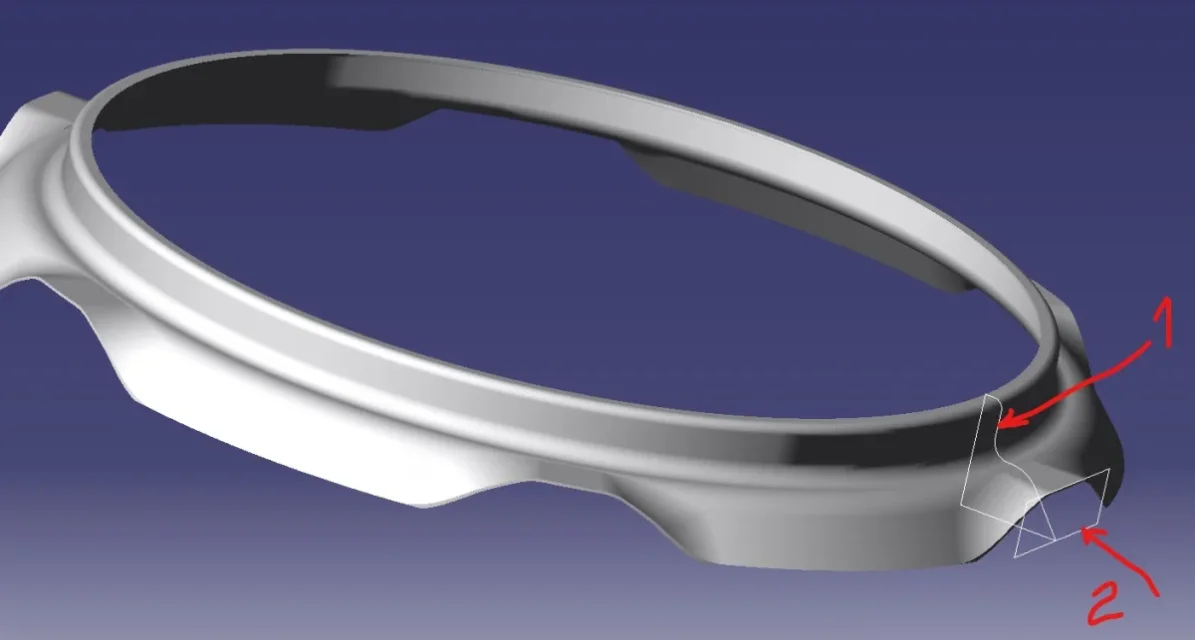

I attach the image of how I quickly made the 3d model
Basically: profile n°1 is a rotating profile
profile n°2 is a repeated rectangle circularly n times
then there is a boolean operation between the solid in rotation and the rectangle repeated n times
then there is the empty command (which is also on inventor) where you give the desired thickness of your sheet.
and finally.. software allowing all rays

I hope I managed to explain myself



[Ian5150]

You were very clear victorious! ,
As soon as I get back to the office, I'll be right next to it and I'll try.
as soon as I have news I send you photos of how I came.
for now thank you very much!



[ceschi1959]

ciao @an5150 ,
you can be useful to have an approach even with the surfaces that can be preferred to the solid approach giving thickness to these.
in the image see what the difference is, with the emptiness of solids it can happen to you that a cut to ' slice of salami'.



[Ian5150]

Hello baskets,
thank you so much for your advice, they are very helpful,
as I wrote above I tried to walk the road of the surfaces, but with little success, having hardly ever used them, they are still a dark world.
Now that I see that but it works and it is viable, I will take back and I also try this solution.
Thanks again



[Ian5150]

hi guys, after a thousand tests and experiments with the victorious council, the result is that I train you.



[Ian5150]

I also consider the suggestion of baskets, and these days I will make other tests etc.
But I would like to close the circle, try also the way of batleum punzoni, did any of you ever try to do something like that? ?



[Ian5150]

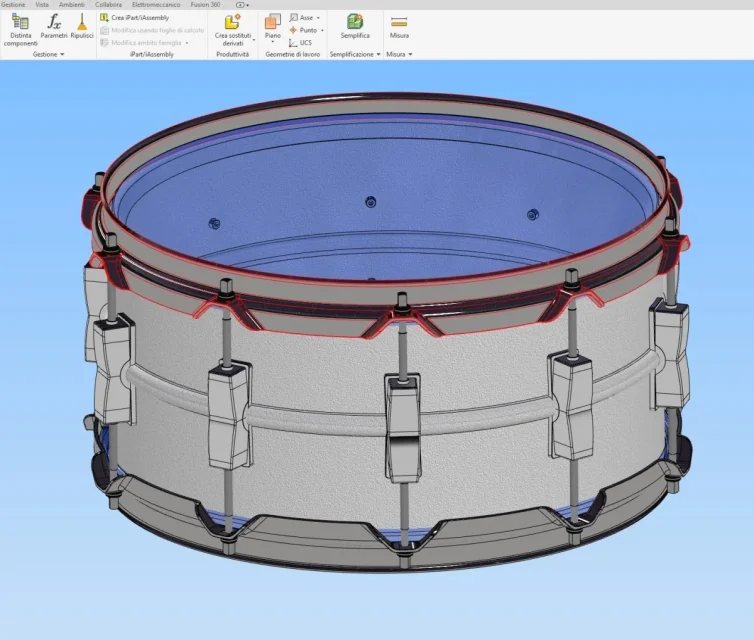

both circles mounted. . .
