detergent bottle

[adrenalina100]

Hi, guys.
I have confused ideas on a model that I attach below.
the model would like to represent a bottle for detergents.in particular it would also like to bring back that edge on the upper face next to the neck that delimites the space for the label.some has so much to make my model more realistic, in particular the above edge?

View attachment inizioflacone.dwg



[Cristallo]

compliments for modeling:finger:



[doking]

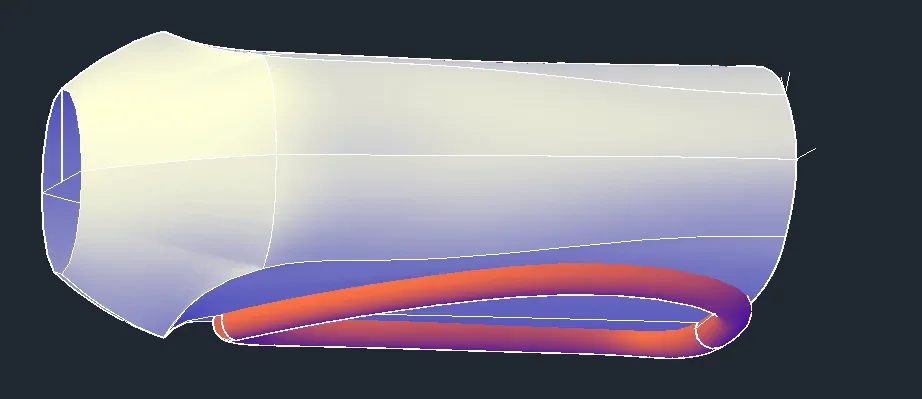

create a copy of the model by moving you to a known measure, placed in the front view (top in this case) draws the perimeter you want to give to the edge, extrude it and use the extrusion just created to cut the face of the model, then explode everything and you will return a trajectory, move again of the measure known so as to return to the model and perform a sweep of a circle or that



[doking]

Sorry but I can't post the file because with only two sweeps added it reached a weight of 1.14 mb and the forum does not allow files greater than a mega



[GP.]

compliments for modeling:finger:

together 1+
However, adrenaline will have problems when creating a solid, there are small discrepancies in the combination of surfaces.

creates a copy of the model by moving you to a well-known measure, placed in the front view (top in this case) draws the perimeter you want to give to the edge, extrude it and use the extrusion just created to cut the face of the model, then explode everything and you will return a trajectory... .

oppure preytageom :smile:



[doking]

together 1+
However, adrenaline will have problems when creating a solid, there are small discrepancies in the combination of surfaces.




or projectgeom :smile:

right ;-)



[adrenalina100]

together 1+
However, adrenaline will have problems when creating a solid, there are small discrepancies in the combination of surfaces.




or projectgeom :smile:

in fact I tried to thicken the surfaces and autocad told me that the surfaces self intersect.how to correct the problem? once I saw him do: it was about adding a connection between the surfaces, do you think it works?



[adrenalina100]

I have actually tried to connect the surfaces.
between the side surface and the front one no problem to collect and therefore not to thicken.
the problem of fitting there is between the surface in the shape of a cap and the front one, even with low connection rays it tells me impossible to execute the fitting.how can you solve the problem?
