development cone trunk design autocad 3d

  • Thread starter Thread starter enricocad
  • Start date Start date

enricocad

Guest
I was given a dwg made with the 3d autocad composed of a series of overlapping cone logs to compose two intersecting tilted fireplaces between them.. the thickness of the sheet must be 8mm.
I don't want to redesign it in solidworks or in inventor for issues of even time and so I wondered if someone could help me develop it from the existing 3d.. well both solidworks and inventor...just know if it is possible to do so..I have already tried but without results. I'm not an expert on the two programs. .
I attached a part of the starting base of one of the two cylinders. .
Thank you!
embellishment.

1) is good standard to present itself first
2) writing in capital equals screaming
3) you have not attached anything
4) I don't understand, you don't want to redesign it and you want others to draw it?

enricocad said:
I was given a dwg made with the 3d autocad composed of a series of overlapping cone logs to compose two intersecting tilted fireplaces between them.. the thickness of the sheet must be 8mm.
I don't want to redesign it in solidworks or in inventor for issues of even time and so I wondered if someone could help me develop it from the existing 3d.. well both solidworks and inventor...just know if it is possible to do so..I have already tried but without results. I'm not an expert on the two programs. .
I attached a part of the starting base of one of the two cylinders. .
Thank you!
embellishment.
Click to expand...
PlannerRoad said:
1) is good standard to present itself first
2) writing in capital equals screaming
3) you have not attached anything
4) I don't understand, you don't want to redesign it and you want others to draw it?
Click to expand...
In addition to quotating in plannerroad toto, I add that from autocad you can't get any developments and, if you don't want to calculate it/trace it "hand", the only system is to move from a 3d "real".
modeling a cone trunk in solidworks can take up to 45 seconds and you immediately have the development you can save in dwg/dxf for possible laser cutting. If you need the quotated 2d table and "noted" add another minute... does not seem to me that great loss of time; definitely less than you have lost so far:smile:

..if you want to show us the job you have to attach the image and/or the quoted file.

greetings
Mar

I apologize with everyone:
1) I introduce myself. My name is enrico and I am of the province of brescia years 42, I make the designer of profession but more on the 2d than on the 3d..say that I am learning. .
2)I didn't notice writing in case. It's not my intention to scream. .

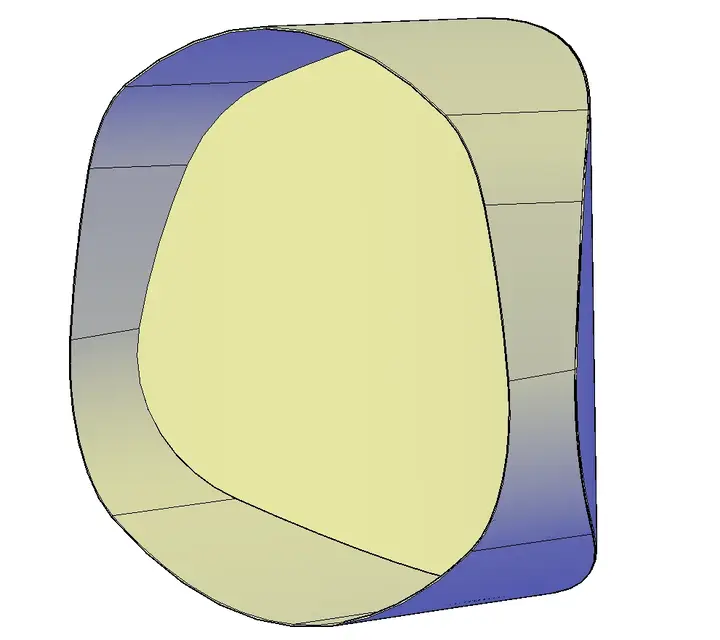

3)I attach one of the different files I should develop. At least I hope. .
4)I don’t want others to do it, I just asked, since I’m not an expert, if it was possible to pass from a solid 3d of autocad to inventor or solidworks and develop it in floor as 8mm...if it is not possible it is obvious that I will have to redesign it. .
If it were a simple cone trunk I would have done it already. .

I thank those who can give me some useful advice. .

Hello, everyone.
♪


Attachments

If someone has time and desire I also attach this file to better understand what I should do. .
my purpose was not to remake the design with a 3d modeler (inventori-solidworks) and to convert this to develop the pieces. .
know if you can. I don't want them to do my job. .
Thank you.
embellishment.


Attachments

Hello, my name is enrico from the prov of bs... I have recently registered and I have already patched..see above..:frown:
attached there are the files of the model that I have to make in 8mm corten sheet..
the problem is that I have managed to make the developments of the 2 logs independently from each other but then when I go to join them I can no longer get the developments of the parts in common. .
I colored green and purple the parts I can't do. .
I turn to you because I've been freaking out for three days!
Can someone help me with a few tips?
Thank you! :smile:


Attachments

I finally managed to develop the model in question. .
I had to redesign it in solidworks or in inventor.. (lucky I had the construction lines in autocad).
But to develop the most complex parts I had to use rhino..glia others were continually giving me error! :
If someone needed to develop something like that, contact me as well.. in my little one I am available to help. .
Hello everyone and thank you!
enri.

hello and good morning, I have a problem, sorry if I take advantage, but I can't get out of it.

I have to build a little special section, with the front bottom calandrato instead of bombed, to clarify, that I can turn on the tractor vehicle. .

I attach a file.

In summary, it's the first time we make such a piece, and I don't know how to make sheet metal developments at cad., I have autocad 12 and inventor fusion 2012, and I'm not sure you can do it, can you tell me if these programs can make a development then cut the sheet and have the "wolf mouth" in order?

thanks in advance

in synthesis is the front of a semirimorchio.

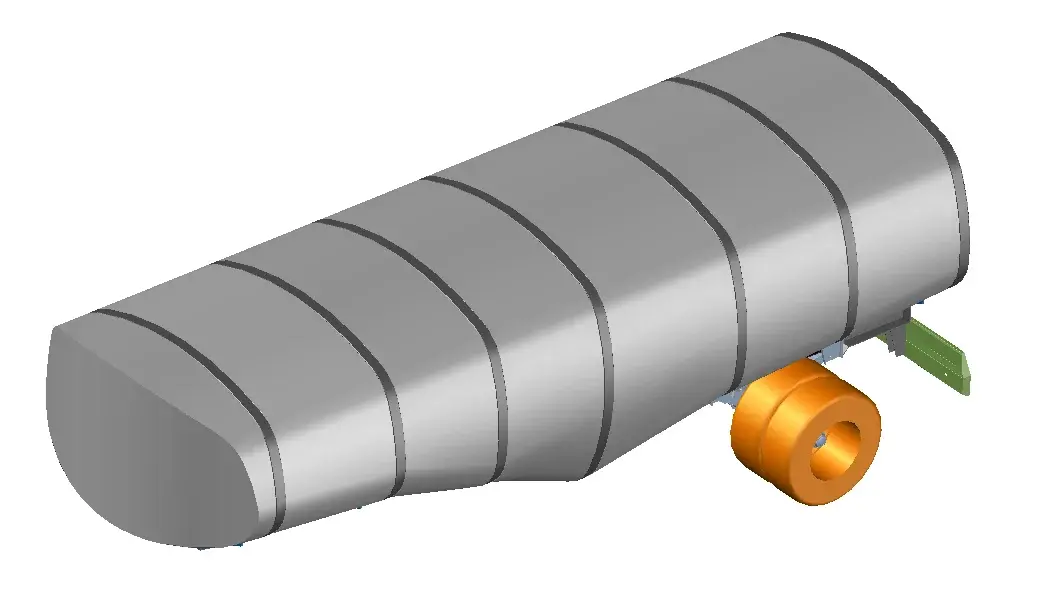

Cattura1.webpI don't know how you see it, I used the "capture"

I think I understand what you mean; if you have inventor that fund you can do it and develop it, with the functions of sheet metal.

greetings
Mar

Here, the problem is that I have autocad 2012 with autodesk inventor fusion, and I don't know much about these things, I got to mount a new pc with eight processors etc etc, but I always worked at 2d, and now (50 years) I try to get out of it.

the design I carry it inside inventor, but I do not see (I don't know) the plate functions.

opss, maybe I understood.

I have inventor fusion 2012, I think all sheet functions etc etc are in the professional.

Would someone make me develop if I send him the model?

I don't have inventor and I barely know him; I don't know what versions do what. .

if you save in step and attach that (before you have to "compress" with zip or similar) I can import it and get the development with solidworks.
However surely some inventor user will show up.

greetings
Marco:smile:

but it does not seem correct to do the tasks to the members of the forum, wanting you can engage and have some advice on how to do.

Well, it's your homework. Come on, it doesn't sound like a schoolgirl.

then between "colleges" and almost peers.. :biggrin:

sampom said:
Well, it's your homework. Come on, it doesn't sound like a schoolgirl.

then between "colleges" and almost peers.. :biggrin:
Click to expand...
However a minimum of commitment....I made a certain cu.. when I didn't know and I had to ask, maybe by asking 1000 questions.

It's true, I've been indelicate and even very superficial.

In fact, it is worth doing, but not having the program I am forced to make a jump from friends who have sw, and see how it is done, and then decide if to buy 'this stuff, which costs like a utlilytis with medium accessories.

Of course a program like autocad 2012 doesn't make a sock like this....

take a surface and iron it, I can't believe it represents an insurmountable amount of calculations, so much so that if I take the tecnigraph, with a cross series of projections I do it by hand, then cut the paper and try to close it with the sewing machine.

is not an imbuted or deformed sheet, it is simple development of solids with rigid surfaces. . .

I'm gonna put on it now, and I'm in trouble.

Rupert
