Hello everyone,
Can you tell me the fastest way to get the development of a bent tondo like that posted? I have to bring the cutting length back to the table.
Thank you as always in advance all for any given answers.



[xxfast]

read this old discussion. ...https://www.cad3d.it/forum1/threads/24013-creare-e-piegare-tubo/page2?highlight=sviluppo+tubo



[MassiVonWeizen]

If you do it with the structural members and indicate the union of the curves you have the automatic length.
or if you've done a single sketch, use the route share.
or if...
or if..
with the image alone you can not give the best solution.
but how do you bend that pipe with such a tight radius?



[deep70]

If you do it with the structural members and indicate the union of the curves you have the automatic length.
or if you've done a single sketch, use the route share.
or if...
or if..
with the image alone you can not give the best solution.
but how do you bend that pipe with such a tight radius?

Hello Mass, and xxfast,
In fact massive this round comes from a step file, the customer asks me to do it again with sw and to develop the table indicating its cutting length.
I'll put the full file.



[MassiVonWeizen]

But how do you pity him? is it not that it is made with welded curve?
not being able to see the measurements (maybe it is a diameter of 2000) the development of the folded pipe or of a metal plate and bent?



[deep70]

I ask:

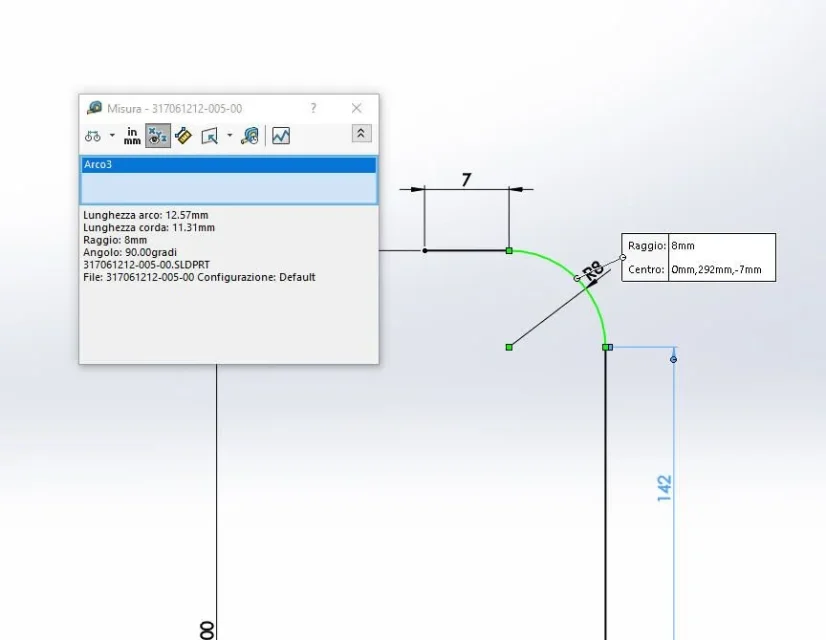

if I follow the following calculation: 7+12.57+142=161.57 is correct as theoretical development?



[deep70]

could be folded and then cut.. I have not given particular specifications, this is one but there are several others even with longer ends. .



[MassiVonWeizen]

use the command quote path.
or structural members to have total length.



[deep70]

thanks massive and also to you xxfast, you are as always very useful and exhaustive.
thanks again and good day to you.
