difficulty in some fittings and repetition of faces....

[Stemox]

Hi.
In helping a friend I'm putting on paper the size of a particular mechanic and I have a couple of problems. the first with modeling that does not execute me operations, the second are looking for some threads ....one is to be detected and the other is indicated as 6 5/8 bees reg.

working with modeling:
modeling fails to perform fittings ..see img1

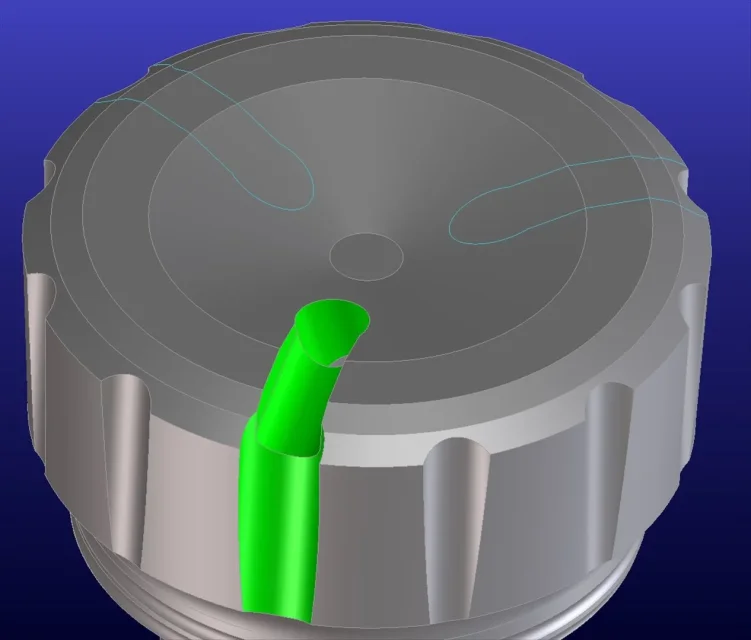

modeling does not perform a copy of some faces (green) ..see img2
... model allego.

threads:
- of the first allego size detected but I do not find a correspondent... see img3
- of the second I can not find a table although it is recognized as a amaricane thread used in trivellations.

Give me a hand? ?
Thank you.



[MFT]

the model I can't open it I have version 17, for fittings actually sometimes creates problems in certain situations try individually or before making the vertical opening the thread what is of a bottle cap



[Stemox]

the thread is of a tube+tape that contains part of the attached model. is used in trivellations is part of a head.
for the fittings I tried also individually but there are some edges that give him boredom.
allego in ver. 17



[MFT]

I managed to open it but I'm afraid you can't do anything. However I have tried in different ways but always gives me errors

the thread is of a tube+tape that contains part of the attached model. is used in trivellations is part of a head.
for the fittings I tried also individually but there are some edges that give him boredom.
allego in ver. 17



[Er Presidente]

But the piece is not modeled in osd, is it?



[Stemox]

made with osd



[Stemox]

I had to do it again, I think he corrupted the model, because now he creates them!!



[Er Presidente]

I had to do it again, I think he corrupted the model, because now he creates them!!

something that was not going there, it was not possible to carry out any processing.
