distinct at multiple levels (bom)

[dermatoid]

Dearest,

I have done a nice complex axieme, which contains configurations, sub-configurations, and especially sub-assiemi - I speak of sub-assiemi up to the 4th level, related to the workflow of the mounts.

At this point, I'm making an automatic bom. instead no! solidworks allows you to reach the 1st level of separate, and not to export automatically separate multi-level? possible? Did I miss something?

Meanwhile there are, it would be beautiful that, once I set up my set, I would crush a button and automatically have the multi-level bom of the active axieme. Do you know a macro that does this?

Thank you.

d



[cacciatorino]

At this point, I'm making an automatic bom. instead no! solidworks allows you to reach the 1st level of separate, and not to export automatically separate multi-level? possible? Did I miss something?

You have to use the numbering "with reentry", there is the problem that the q.ta' of the parts contained in the subaxieme are referred to the single subaxieme and not to the total, besides I'm not clear how to make the levels appear in a separate column instead of in the main column.

I hope I understand your question well.

p.s. I usually but customers send:
a distinct "exploded" without levels for the purchase.
many different for each subgroup for mounting
I'm afraid that by creating a unique multi-level distinction, the misunderstandings are around the corner, and maybe in the end, you'll find that the cuff buys three gear motors when you actually needed one.



[dermatoid]

Thanks for the tip, but my problem is that sw stops at the 1st sublevel, I have subaxis of 2nd and 3rd level, and it does not list the individual parts of these in the...

Thank you

d

You have to use the numbering "with reentry", there is the problem that the q.ta' of the parts contained in the subaxieme are referred to the single subaxieme and not to the total, besides I'm not clear how to make the levels appear in a separate column instead of in the main column.

I hope I understand your question well.

p.s. I usually but customers send:
a distinct "exploded" without levels for the purchase.
many different for each subgroup for mounting
I'm afraid that by creating a unique multi-level distinction, the misunderstandings are around the corner, and maybe in the end, you'll find that the cuff buys three gear motors when you actually needed one.



[cacciatorino]

Thanks for the tip, but my problem is that sw stops at the 1st sublevel, I have subaxis of 2nd and 3rd level, and it does not list the individual parts of these in the...

Thank you

d

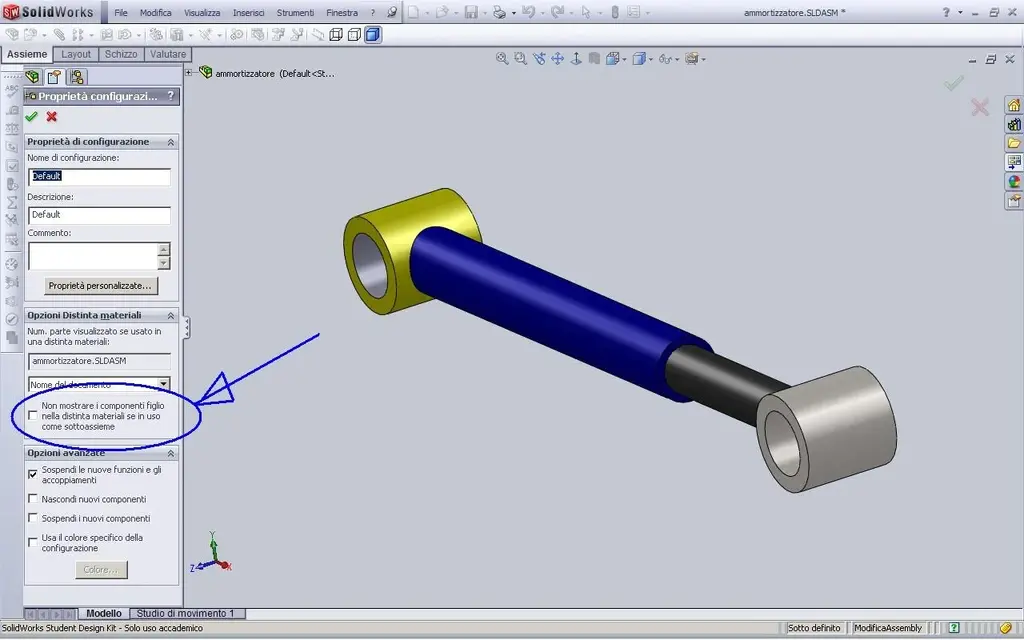

Are you sure? I just tried and got quietly on the 4th level. Did you tell him not to explode the components?



[dermatoid]

Here... Thank you, you got us!

thanks again and hello

d



[re_solidworks]

only for info: in 2010 you can explode a set in a distinguished first level and the quantities are updated correctly.



[sampom]

Are you sure? I just tried and got quietly on the 4th level. Did you tell him not to explode the components?

Here... Thank you, you got us!

thanks again and hello

d

And there's nothing but watching. . :redface:
always great and punctual, great _caccia_!:finger:

This is the right way to approach a new software, observe, try to try, and follow the guides.
if you know your job and you have clearly what you want to get, in a short time you become productive with any cad, and without so many courses... hunter you are the demonstration :4425:

Let us take example all of them.

greetings
Marco:smile:



[cacciatorino]

And there's nothing but watching. . :redface:
always great and punctual, great _caccia_!

fat and fat, she embarrasses me!!! :wink:
