distinct structured components and miniatures

[chares82]

Hello everyone
I'm literally arguing with inventor 2018, I have two main problems for the moment:
1) I can't export the distinct structured, I can only export the first level, where am I wrong? Is there any setting to set in the set?
2) Is there a possibility to export thumbnails to excell without resorting to external or complicated software?



[Matteo Cappelli dis.CAD]

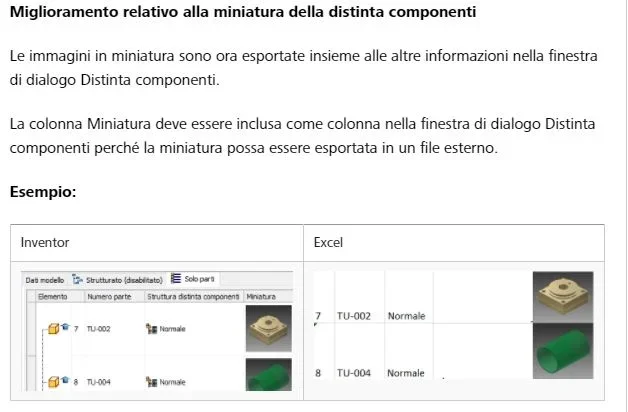

if you update the cad, with 2018.1 the automatic export of thumbnails in excel


per quanto riguarda la struttura, ho sempre fatto o copia incolla o tramite ilogic che ti allego qui sotto:



nome_file=thisdoc.filename(true) 'with extension (false) without extension
nome_file_no_est=thisdoc.filename(false) 'with extension (false) without extension
percorso=thisdoc.path
estensione = right (nome_file,3)

'{9c464203-9bae-11d3-8bad-0060b0ce6bb4} = lamiera
'{4d29b490-49b2-11d0-93c3-7e07060000000} = parte
'{bbf9fdf1-52cd-11d0-8c04-0800090be8ec} = tavola 2d
'{e60f81e1-49b3-11d0-93c3-7e0706000000} = assieme

tipo=iproperties.value("project", "document subtype")
if tipo <> "{e60f81e1-49b3-11d0-93c3-7e0706000000}" then
messagebox.show("eseguire il comando da un file di assieme (.iam).", "!!attenzione!!")
exit sub
else
end if

dim odoc as assemblydocument
oxls = thisdoc.pathandfilename(false) + "bom-structuredalllevels.xls"
odoc = thisapplication.activedocument

'set a reference to the bom
dim obom as bom
obom = odoc.componentdefinition.bom

'set the structured view to 'all levels'
obom.structuredviewfirstlevelonly = false

' make sure that the structured view is enabled.
obom.structuredviewenabled = true

'set a reference to the "structured" bomview
dim ostructuredbomview as bomview
ostructuredbomview = obom.bomviews.item("strutturata") '("structured")

' export the bom view to an excel file
ostructuredbomview.export (oxls, kmicrosoftexcelformat)

'define excel application object
excelapp = createobject("excel.application")
'set excel to run visibly
'change to false if you want to run it invisibly
excelapp.visible = true

'open the workbook
wb = excelapp.workbooks.open(oxls)

'set all of the columns to autofit
excelapp.columns.autofit
'suppress prompts (such as the compatibility checker)
excelapp.displayalerts = false

''add a new sheet to the xls file
'excelapp.sheets.add.name = "sheet1"
''select the original exported sheet
'excelapp.sheets(2).select
''select range to copy
'excelapp.columns("g").copy
''select sheet to paste to
'excelapp.sheets("sheet1").select
''select range to paste to
'excelapp.columns("a").select
''paste the selection
'excelapp.activesheet.paste
''reset selected cell to a1
'excelapp.cells(1,1).select
''delete the original sheet
'excelapp.sheets(2).delete()

'save the workbook
wb.save



[chares82]

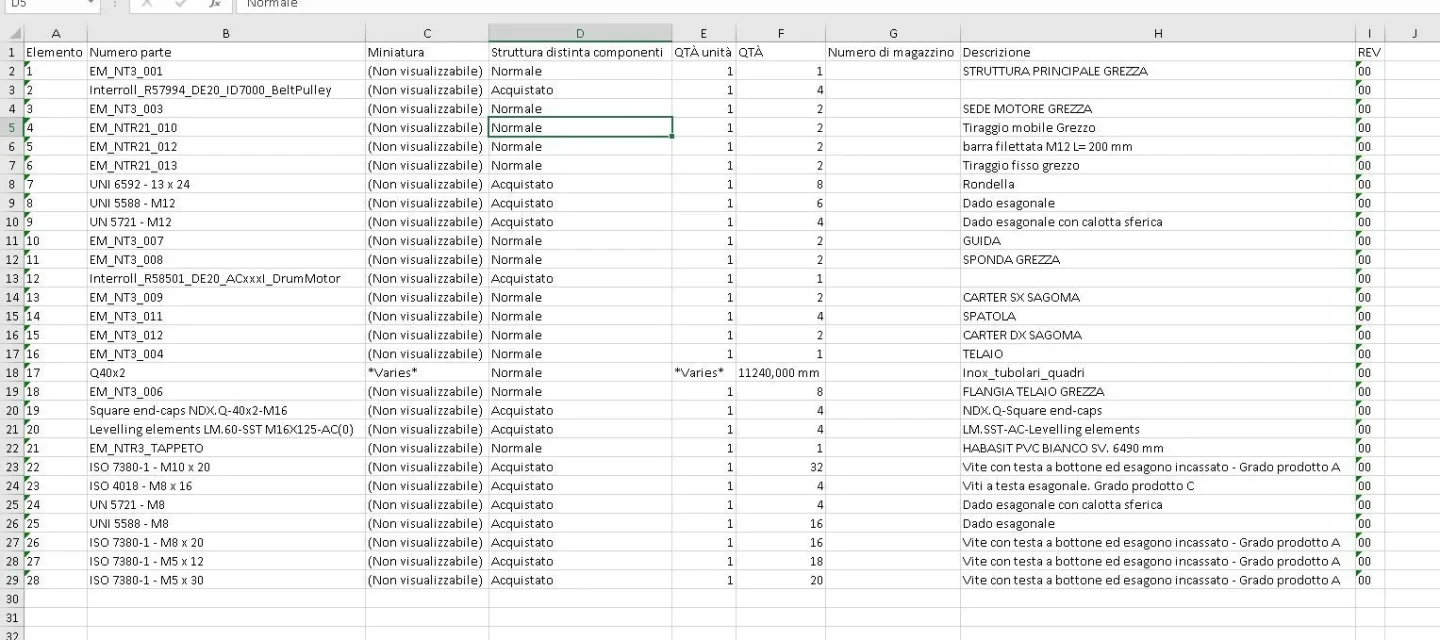

thanks for the answer, but the results of export in excell is this:

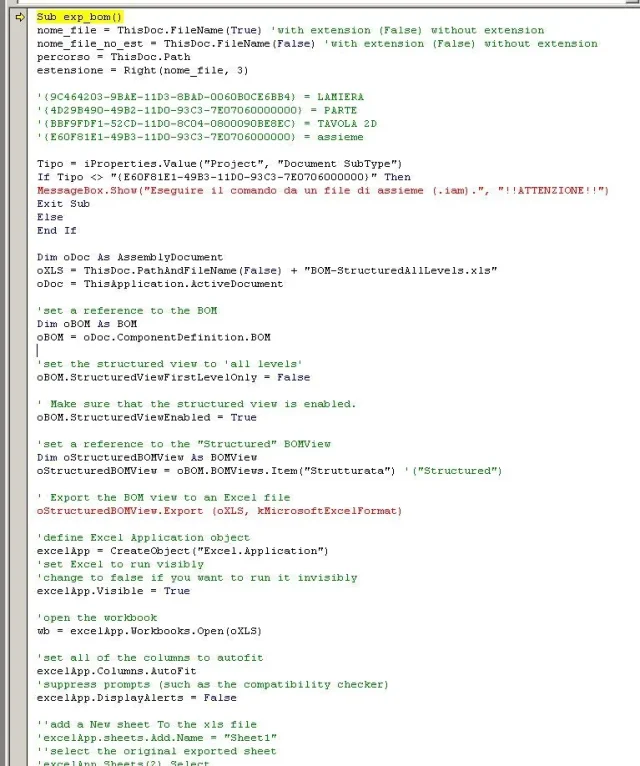

Instead the ipart gives me error of syntax (discussed but programming I do not understand anything):



[Matteo Cappelli dis.CAD]

Hi.
attention, it is not a visual basic command but ilogc, so you have to launch it from the rules
View drop-down menu - user interface - activate "ilogic"

go to the external rules tab, dx key - create a new rule and paste them listed
then let it go

the export in excel with miniature takes place only from 2018.1



[chares82]

Thank you very much.
Now it all works!
