distinta base thumbnail

[HAKIM]

Good morning.
I have recently installed inventor 2019, I can no longer find on the chart page the thumbnail button (miniature) for the distinct base to export to word.
What do I do?
Thank you.



[Matteo Cappelli dis.CAD]

Hi.

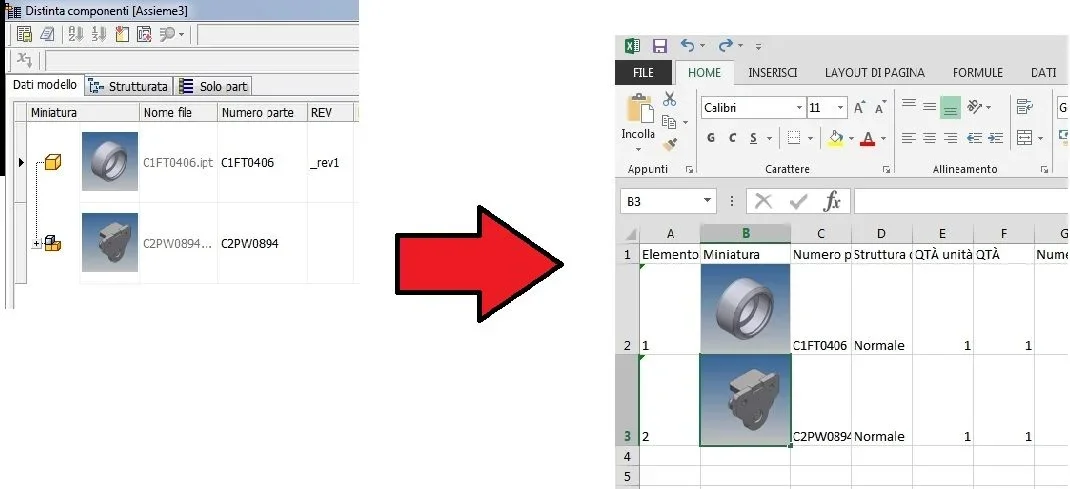

the distinct with thumbnails you can get it exporting it from the inventor's 3d.iam axieme
at the top left is the command (see photo)

If you want to export table 2d with previews, you need to install the free app downloadable at the link:
http://modthemachine.typepad.com/my_weblog/2010/02/parts-list-with-thumbnail-image.html



[HAKIM]

Hi.
the distinct with thumbnails you can get it exporting it from the inventor's 3d.iam axieme
at the top left is the command (see photo)

View attachment 50739If you want to export table 2d with previews, you need to install the free appView attachment 50740 downloadable at the link:
http://modthemachine.typepad.com/my_weblog/2010/02/parts-list-with-thumbnail-image.html

Hello, matteo,
I downloaded the thmbnail part list app because that's what I needed.
Thank you very much
