hello to everyone, I ask something maybe stupid but I have a doubt.

the highlighted quota of 30 to what it refers?
sec me represents the depth of the semi circular part but 30 is exaggerated, perhaps it is 3.
What do you think?

Sorry for the silly question



[MarcoBi]

Yes, I agree.



[meccanicamg]

hello to everyone, I ask something maybe stupid but I have a doubt.

the highlighted quota of 30 to what it refers?
sec me represents the depth of the semi circular part but 30 is exaggerated, perhaps it is 3.
What do you think?

Sorry for the silly question

It's the wrong amount of the exercise. It is clear that it is 3 mm and not 30 making the proportions with the depth in the same direction of 8 mm.



[volaff]

Thank you.
I'm rusty in technical design.
I thought Turkish things!!! !

Thank you very much



[volaff]

Hello.
I'll find an old post for a doubt more than anything.

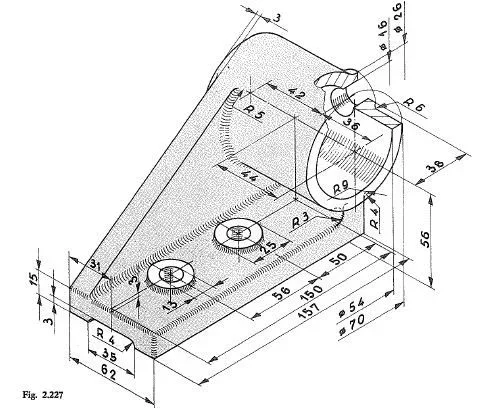

the length of the cylinder diameter 70 mm is: 36+42 = 78 mm.
Is that right?

thanks to all in any case.



[MassiVonWeizen]

Yes.
But why do you dare to model with these obscene designs?



[volaff]

Yes.
But why do you dare to model with these obscene designs?

Hello and thank you!
but they're not obscene.
I found them on a book in pdf.
if you have to recommend other are all ears.
Thank you.

sent by my sm-a750fn using tapatalk



[MassiVonWeizen]

I think a design where you struggle to understand the odds are obscene.
in the forum had been reported pages with drawings
just a search with gogglehttps://www.google.it/search tbm=is...ay0q4lyikygc&biw=1440&bih=695&dpr=1.33&tbas=0https://www.google.it/search?tbm=is...uwkhulncwgq4lyilige&biw=1440&bih=695&dpr=1.33



[volaff]

Thank you very much.
Would you recommend some books to take some interesting table?

Thank you! ! !



[MassiVonWeizen]

https://www.cad3d.it/forum1/threads/disegni-2d-quotati.53977/https://www.cad3d.it/forum1/threads/complessivi-per-esercitarsi.52168/
https://www.prismacad.it/esempi-disegni-meccanici/
