false insulated panels

  • Thread starter Thread starter F.Devis
  • Start date Start date

F.Devis

Guest
good evening to all, I am new to this forum, I wanted to know if someone had the fake insulated panel, in prt format, or where I can find it quickly, instead of marking it just everything.
Thank you.

try to search on grabcad, but not being a mechanical element you will hardly find it in solidworks format
instead of marking it all.
You mean modeling him?

edit:
it does not seem difficult to shape having the measurements; modeled a section do n° repetitions

You're right, but I thought there was something already done and so much more real to make a simulation to a client

attached.
without knowing well what you talk about and without measures, adapt it to your needs


Attachments

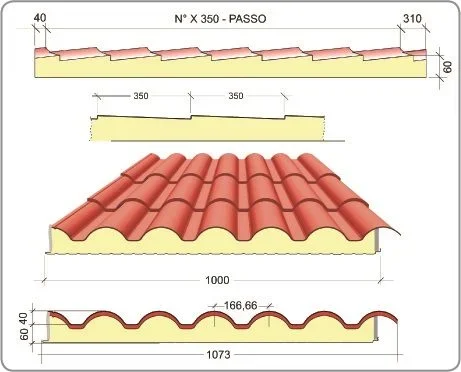

I'm sorry, I've attached the measurements, because I've tried to change the file you sent me, but I've seen that I only create a mess, if you can give me a hand, I'd be grateful. Thank you.


Attachments

  • lamiere-coibentate-finto-coppo-prezzi-con-pannelli-isolanti-per-tetti-il-supercoppo-edilmetal...webp
    lamiere-coibentate-finto-coppo-prezzi-con-pannelli-isolanti-per-tetti-il-supercoppo-edilmetal...webp
    17.7 KB · Views: 24
I don't see how it's possible to mess with such a simple file.
sketch 1 there are the size of the single profile with 4 odds
plan 1 and plan 2 define the departure and length of the false socket

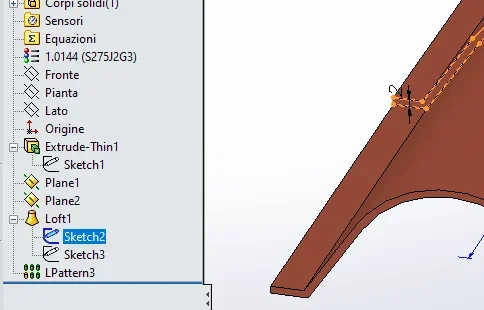

sketch 2 defines the protrusion of the false corps

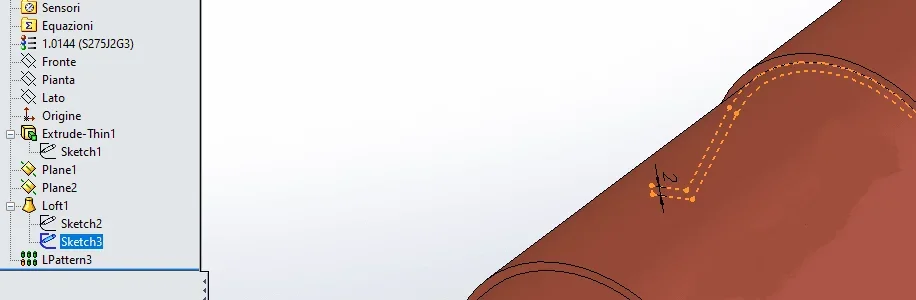

sketch 3 is the copy of the original profile that restores the initial condition
repetition is the number of fake plugs to do

It's impossible to mess up


Attachments

  • schizzo 1.webp
    schizzo 1.webp
    17.3 KB · Views: 18
  • schizzo 2.webp
    schizzo 2.webp
    16.5 KB · Views: 14
  • schizzo 3.webp
    schizzo 3.webp
    17.5 KB · Views: 15
