the bell I have already stretched it then, once I have the tree, model accordingly the teeth...
))cacciatorino
Guest
It's that two months ago I disassembled the shiman pins of the racing bike, which use the same system...
cacciatorino
Guest
You're right. I looked bad. .
marcof
Guest
Since you have the eye ready, you have to make an expedition to segarti in two the bike and put out use any other sports and playful equipment, radio, TV and books included, so that you can find the time to make some piece of the gnomo for vents. Besides, you have three cads, so you should do three jobs... :smile:
cacciatorino
Guest
look: from 1 January I made 1200 km by bike and 320 hours work at the cad, and the cat wakes me every morning at 4.30 and makes me stand at 5.
You can understand with what spirit I could light the cad in the evening after dinner.
sampom
Guest
Right. .
Here we go. Presidene: because it is a "phase key" must have a logical position. to "what time" should be placed on the tree with the pin of biella at 12 (pms)?
sampom
Guest
...to the devil I would do it:wink:
marcof
Guest
earthquaketi :redface: find some useful indication in the manual where it talks about the disassembly/assembly of the part inserted in that thousand-rigue. . .
marcof
Guest
Maybe it depends on the cad. if you are working 10 hours a day with osd in the evening use a half hour if for detoxifications
. if you are using 10 ire per day solidedge.... I would tell you to go to swx but I'm afraid it wouldn't attack.:smile:p.s. the cat that I sveglai at 4:30 is good also in psalmì, besides the devil as proposed by sampom. the maximum however is to the hunter, in the sense that you put him in a wood, the 50 meters advantage then armed of rifle for small sevaggine begins to hunt him. :tongue:
radio
Guest
for example on page 195 and on page 197.
er (poor) president had to do the shopping, wash the cat, polish the silverware and release the attic, in order to get permission to spend Sunday to scan the manual, and you ungrate not even worthy of a squard? :biggrin:
sampom
Guest
Yeah, I was just looking.
as on page 19 there are angular indications for advance and delay opening/closing valves; useful to obtain at least one approximate form of the cams and the layout on the "disco". By combining everything with that phase key you should be able to pull out an acceptable and assembled model.
sampom
Guest

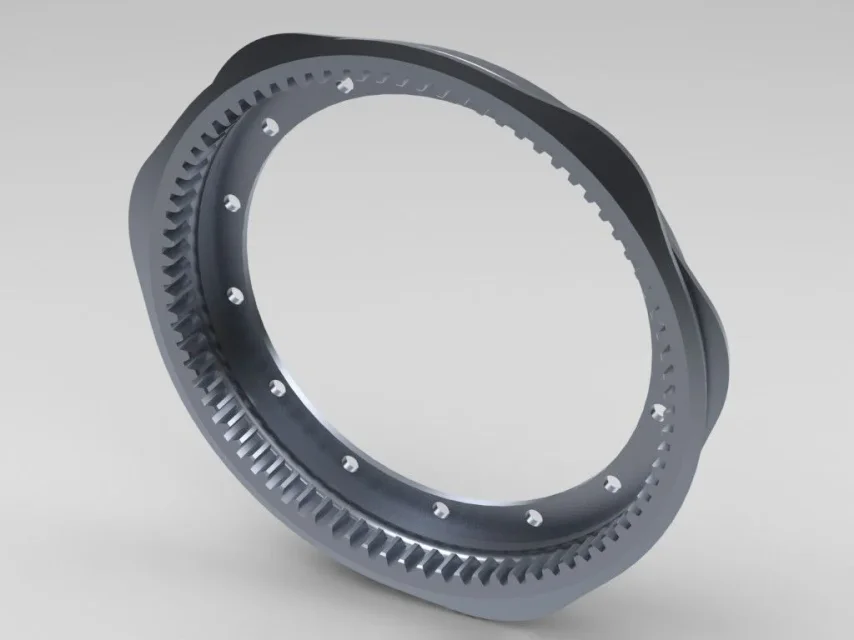

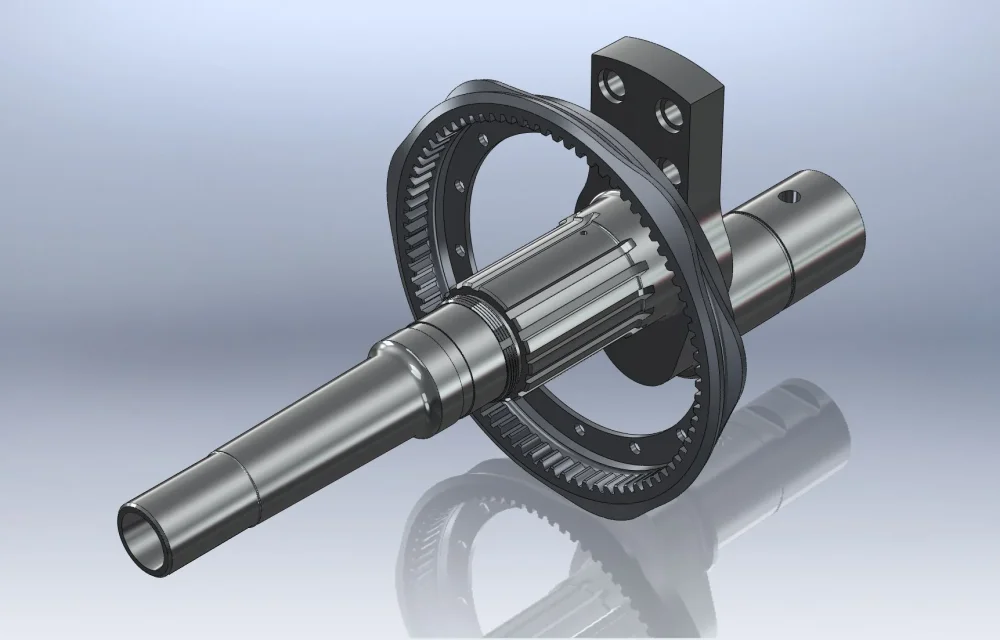

% 1... here is the semi-shaft modified with the "key", and for the pleasure of the president also the cam disc (only that):
... View attachment 322I didn't calculate them at the moment. to make fast I have "polished" the raster of a figure of the manual (page 195 and 197), combining the dimensions with those of the tables board There and xi... I don't know if you raise and time are correct.
for inclination and step of the 2 cam rings I used the size of the drill holes on the front carter of maxopus (which still remains to be corrected), so at least to be able to mate the whole.
the internal toothing should be z80 m3 (if standard.. )
the attached axieme should give the correct position, with the back piston 1 at the pms, as from manual (eye to bind the extracted step before making unconsulated movements).
...have fun:
... View attachment 322I didn't calculate them at the moment. to make fast I have "polished" the raster of a figure of the manual (page 195 and 197), combining the dimensions with those of the tables board There and xi... I don't know if you raise and time are correct.for inclination and step of the 2 cam rings I used the size of the drill holes on the front carter of maxopus (which still remains to be corrected
), so at least to be able to mate the whole.the internal toothing should be z80 m3 (if standard.. )
the attached axieme should give the correct position, with the back piston 1 at the pms, as from manual (eye to bind the extracted step before making unconsulated movements).
...have fun:
sampom
Guest
missing an image:
Exatem
Guest
Beautiful. the whole thing:% 1... here is the semi-shaft modified with the "key", and for the pleasure of the president also the cam disc (only that):View attachment 32216 ... View attachment 32217I didn't calculate them at the moment. to make fast I have "polished" the raster of a figure of the manual (page 195 and 197), combining the dimensions with those of the tables board There and xi... I don't know if you raise and time are correct.
for inclination and step of the 2 cam rings I used the size of the drill holes on the front carter of maxopus (which still remains to be corrected
the internal toothing should be z80 m3 (if standard.. )
the attached axieme should give the correct position, with the back piston 1 at the pms, as from manual (eye to bind the extracted step before making unconsulated movements).
...have fun:
Exatem
Guest
I have prepared a list of the things already done and who has done them.
planche iii - carter
I'm sorry.
iii_11 maxopus
_
planche iv - cylinders
Iv_41 marcof
_
radio station
_
I______________
planche v - motor shaft
_
_
_
_
_
_
planche vi - camshaft
_
then there should be sail and rs4 but I don't know if they posted a few pieces.
Do you check if there is something missing?
planche iii - carter
I'm sorry.
iii_11 maxopus
_
planche iv - cylinders
Iv_41 marcof
_
radio station
_
I______________
planche v - motor shaft
_
_
_
_
_
_
planche vi - camshaft
_
then there should be sail and rs4 but I don't know if they posted a few pieces.
Do you check if there is something missing?
Er Presidente
Guest
marcof
Guest
imho lacks a list of the working parts. Who's doing what? avoid duplication would not be bad or still know who is doing it can help in case more than one would want to do the same detail.
Let's put it here and/or on google drive, as long as it is updated.
I have in the yard the head (palnce iv-42), but with calm.... very calm:tongue:
radio
Guest
below the complete list of the items I made:
Iv-43
Iv-49
Iv-50
Iv-51
Iv-52
Iv-71
Iv-72
Iv-73
Iv-74
Iv-81
Iv-82
Iv-83
iv-84
Iv-191
iv-192
iv-193
Iv-194
Iv-195
iv-197
Iv-199
iv-302 (spinotto!!!) :biggrin:
I almost ready also:
iv-211
iv-212
I should be able to finish them by night (dappers)
p.s. I noticed that you use the underscore in the coding I least, what do we choose?
p.p.s. in the "different" file would not be bad to put even a couple of columns like "assigned to" and "followed by", what do you say? Are we waiting for the blessing of the highest? :biggrin:
Bye.
